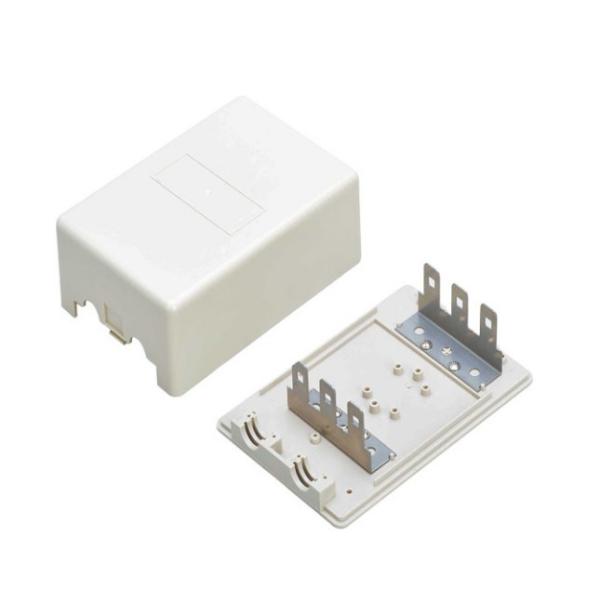

Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
Specifications
Brand Name :
ANSHI
Model Number :
XL-026C
Certification :
ISO 90001, SGS, DAS, ROHS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 pcs
Price :
$1.8~$4.0
Supply Ability :
15000 Pieces per WEEK
Packaging Details :
50pcs/ctn, 15kgs 14kgs, 55*33*31cm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
1~25 Work Day
product :
Network indoor Distribution Box
Material :
ABS
Color :
Offwhite or Cream
Capacity :
10/20/30 Pairs
Size :
153*105*56mm
Application :
Telecommunication
Description

Network Indoor Distribution Box 10/20/30 Pair Telephone Module Surface Mounting insert Type

Features:

1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS or ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be ordered separately
5) Including 1 back mount frame
6) Compatible with Krone modules

AS-DB30W:
1) Capacity: 30 pairs
2) Size: 210 x 135 x 85mm

AS-DB50W:
1) Capacity: 50 pairs
2) Size: 220 x 190 x 87mm

AS-DB100W
1) Capacity: 100 pairs
2) Size: 380 x 185 x 113mm

Indoor Distribution Box (10 20 30pairs)

Scope of supply :

  • Bottom part
  • Top part 102 x 57 x 152 mm (WxDxH)
  • Back mount frame for 2 x 10-pair VS Compact
  • 2 screws KA40 x 8 mm
  • 2 washers
  • Duo-adhesive label T+T/neutral 60 x 25 mm
  • 2 cable ties, small
  • Installation instructions


Distributor, housing type : Housing
Application area : Surface-mounting (SM)
Color code RAL : 9010
Color : pure white
Dimensions : 103 x 163 x 57 mm
Material : housing, plastic: ABS
Protection class (IP) : 30
VS system : VS Compact
Number of pairs : max. 20-pair
Grid size (mm) : 20

Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type
