30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
30 Pairs Indoor Distribution Box
Specifications
Brand Name :
ANSHI
Model Number :
AS-DB30D
Certification :
ISO 90001, SGS, DAS
Place of Origin :
CHINA
MOQ :
500
Price :
Negotiable
Supply Ability :
5000 Pieces per Month
product :
krone termination box
Material :
ABS
Color :
grey
Type :
30 pairs
Lock :
Coin or Key
Application :
Telecommunication
Description

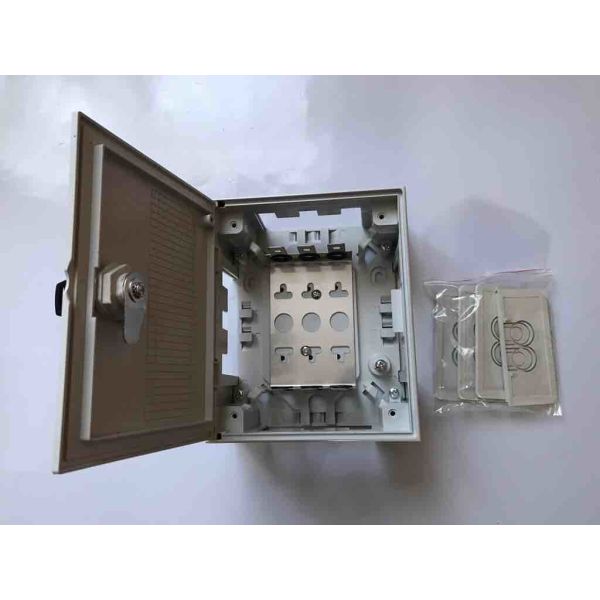

Cable Distribution Box 30 pairs Indoor distribution box for 10 pairs krone module LSA-PLUS

Features:


1) Can be mounted with LSA-PLUS 10-pair disconection or connection module


2) Not waterproof box, suitable for indoor wire distribution


3) Material of house: ABS fire-resistant


4) Including stainless steel mounting frame, but modules to be ordered separately


5) Including 1 back mount frame(3ways)


6) Compatible with Krone modules

10 Pairs LSA-PLUS Krone Disconnetion Module

Features:


1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
condition)
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles

30 Pairs Indoor Distribution Box
