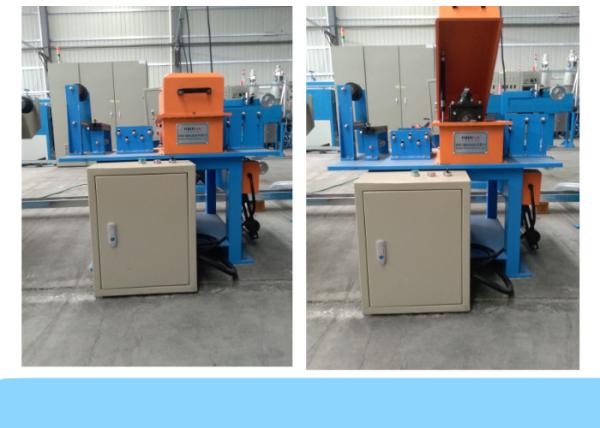

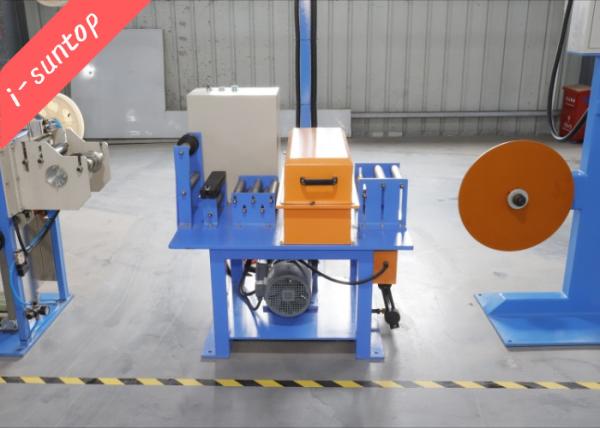

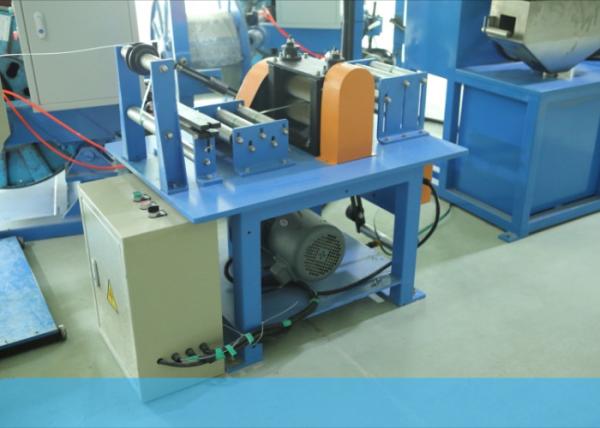

100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
100mm 70m/Min Aluminum Tape Corrugating Machine Fiber Optic Cable Machine
Specifications
Brand Name :
I-suntop
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Usage :
For Metal (Steel Aluminum Tape) Corrugating
Corrugating width :
Max.100mm
Service :
12month warranty
Voltage :
3-phase 5wire 380V 50HZ
Corrugating speed :
max.70m/min
Description

Metal Tape (Steel-Aluminum Tape) Corrugating Machine

i-suntop fiber optic cable machine 20220228.pdf

1. Application for Metal Tape (Steel-Aluminum Tape) Corrugating Machine:

  • This machine is mainly used for rolling the shielding layer of cable core of optical cable and communication cable. As the supporting equipment of longitudinal baling machine, it can roll aluminum strip, steel strip, copper strip and composite strip into wavy shape. After rolling, it is directly entered into the longitudinal-wrapping machine and longitudinal-wrapping machine to meet the technological requirements of optical cable, communication cable and other cables.
  • Box type structure, guide roller before entering the roller, to ensure the steel strip straight.The roller is controlled by AC frequency converter and synchronous pulley, and the speed of the roller is controlled by dance pulley. It has the function of manual adjustment and automatic synchronous adjustment with the traction speed of the main engine, and the tension is stable.The upper binding roller can be adjusted up and down.

  • The corrugating roller will be made of 38CrMoAl and nitrodized, The hardness of the surface will be very high.

2. Main paramters for Metal Tape (Steel-Aluminum Tape) Corrugating Machine:

Corrugating speed

max.70m/min

Corrugating pitch

2.6-3.0mm

Corrugating width

Max.100mm

material

stainless steel

Corrugating depth

0.1-1.0mm(adjustable)

Drive

3KW
