380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Extrusion Material :
PBT
Design Speed :
Max.800m/min
No of fiber :
12
excess loss :
<=0.02dB/km(single mold optical fiber)
Application :
manufacturing of PBT loose tube
Warranty :
12month
Power :
380v + 5% 50Hz AC 3 phase +N line + ground line
Inverter :
Danfoss
Description

Fiber Optic Cable Machine For Buffering Loose Tube Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Fiber Optic Cable Machine For Buffering Loose Tube Production Line:

This production line is used to extrude loose tube that contains 2~12 cores covered with fiber jelly. PBT is the suitable extrusion material. The extruded loose tube is round and smooth.

380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line

2. Technical parameters of Fiber Optic Cable Machine For Buffering Loose Tube Production Line:

Extruder type

50×25 Extruder

extrusion material

PBT

structure speed

Max.800m/min

production speed

20～500m/min(Ф1.8mmPBT loose tube)

No of optical fiber pay-off

12

Specification of optical fiber pay-off reels

φ236*φ160*108mm, φ236*φ160*236mm.

Pay-off tension of optical fiber

0.4N-1.5N

Take-up reels Specification

PN630reel and PN800 reel

excess loss after extrusion

≤ 0.02db / km (sm fiber@ 1310nm, 1550nm)

Overlength control

Overlength control

Meter error

<1.5‰

4. Line Configuration for Fiber Optic Cable Machine For Buffering Loose Tube Production Line(low speed):

Items

Qty.

12heads fiber pay off

1set

Electrostatic device removed

1set

Jelly filling device

1set

50 extruder

1set

Dryer +hopper 50kg

1set

IPC+PLC program control systerm

1set

Movable water trough with hot water tank

1set

Capstan

1set

Fixed water trough with cooling water tank and blower+Industrial chiller

1set

laser diameter gauge

1set

Auxiliary tractor

1set

Vertical accumulator

1set

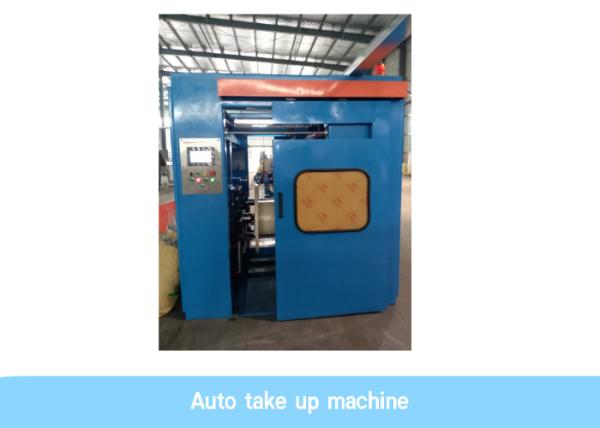

dual-shaft take-up 630-800mm

1set

5. Line Configuration for Fiber Optic Cable Machine For Buffering Loose Tube Production Line(High speed):

Items

Qty.

12heads fiber pay off

1set

Electrostatic device removed

1set

Jelly filling device

1set

50 extruder

1set

Dryer +hopper 50kg

1set

IPC+PLC program control systerm

1set

4 m mobile hot water tank + hot water tank

2sets

Ф630mm single wheel capstan+Warm water spraying device

1set

Ф630mm single wheel capstan+cold water spraying device

1set

laser diameter gauge

1set

Take up Tension dancer

1set

dual-shaft take-up 630-800mm

1set

380V Fiber Optic Cable Machine For Buffering Loose Tube Production Line
