Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Indoor Fiber Optic Cable Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-50/60
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Application :
For Simplex/duplex cable
Cable diameter :
2.0/3.0/5.0mm
Structure Speed :
Max.190m/min
Aramid yarn pay off :
10heads
No of tight buffered fiber pay off :
4
Extra-attenuation :
1550nm<=0.02dB/km(single mold optical fiber)
Service :
12month warranty
Poweer supply :
50kw,3-phase 5wire 380V 50HZ
Description

Premise Indoor Fiber Optic Cable Machine For Fiber Patch Cord

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Premise Indoor Fiber Optic Cable Machine For Fiber Patch Cord:

This machine can be used for extruding simplex, duplex,other indoor soft cable production, jacket material can be PVC, LSZH. Extruder shape rounded, uniform diameter, smooth.

2. Technical parameters of Premise Indoor Fiber Optic Cable Machine For Fiber Patch Cord:

Production line structure speed

190m/min

Production line process speed

80 ~ 150m / min (simplex/duplex cable, PVC material)

Tight buffer fiber pay off

4 reels

Fiber pay-off reel specifications

PN400mm, PN235mm

Fiber pay-off tension

0.4~1.5N

Tight buffer fiber diameter

φ0.6mm orφ0.9mm

Aramid yarn pay-off tension

0.5~3N

Aramid yarn cotton wrapping specifications

φ214×φ94×220mm

The heads number of Aramid yarn

10

Extruder type

50/60×25

Take-up tension

2~20N

Take-up reel specifications

PN400-PN630

Additional loss

≤0.02dB / km (for single-mode fiber only)

Power supply

50kw 380v ± 5% 50Hz AC 3 phase + N line + ground wire

3.Main items of Premise Indoor Fiber Optic Cable Machine For Fiber Patch Cord:

Items

Qty.

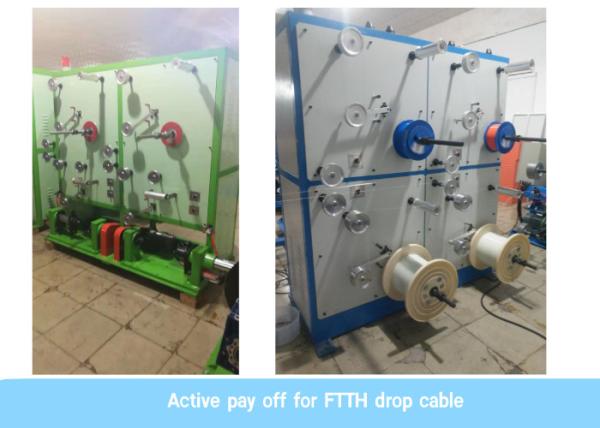

4 heads tight buffered fiber pay-off

1set

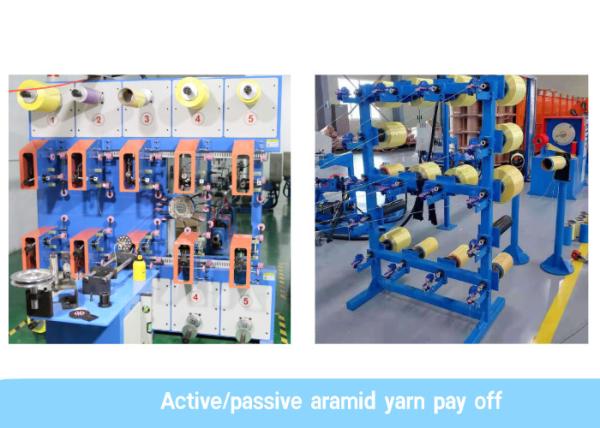

Passive /active aramid yarn pay off

Mobile mold supporting

1set

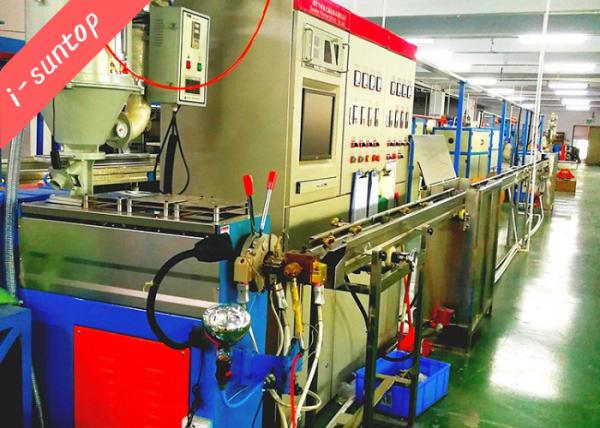

50 extruder for simplex/duplex cable

1set

50kg Dryer +hopper

1set

IPC+PLC program control systerm

1set

2.5m moving water trough and warm water tank

1set

8m fixed type cooling water trough and cooling water tank+chiller

1set

laser diameter gauge

1set

dual-wheel capstan

1set

horizontal accumulator

1set

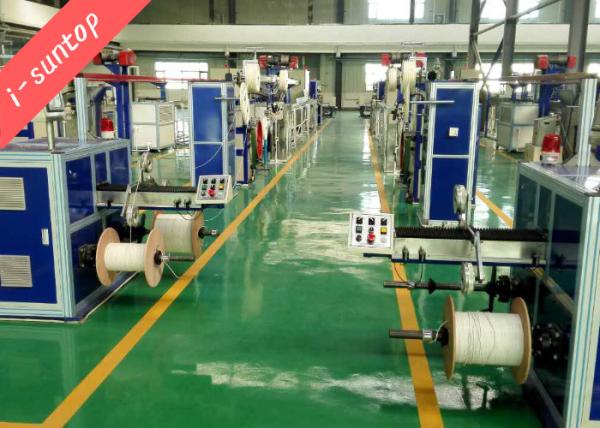

400-630mm dual-shaft take-up

1set

Indoor Fiber Optic Cable MachineIndoor Fiber Optic Cable Machine
