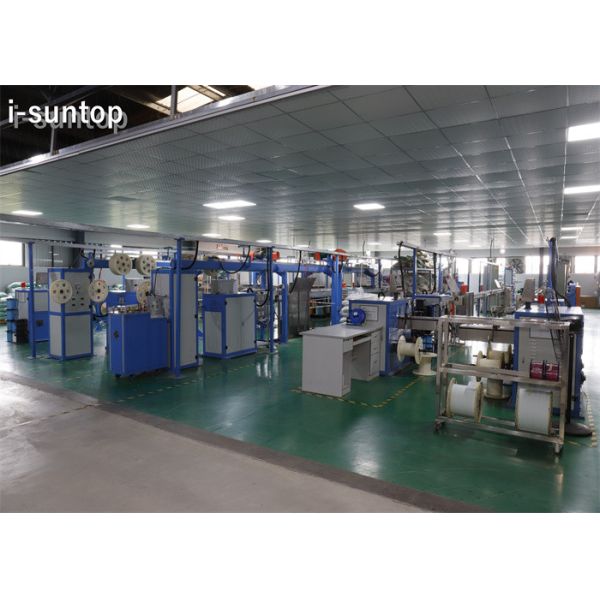

1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Usage :
indoor and outdoor FTTH drop cable
Material :
PVC/LSZH
Structure Speed :
Max.150m/min
No of fiber pay off :
Max.12cores
excess loss after extrusion :
1550nm<=0.02dB/km(single mold optical fiber)
Service :
oversea installation accept
Voltage :
50KW,3-phase 5wire 380V 50-60HZ
PLC :
SIEMENS
Description

FTTH Outdoor Indoor Drop Cable Manufacturing Machine

i-suntop fiber optic cable machine 20220228.pdf

1.Application for FTTH Outdoor Indoor Drop Cable Manufacturing Machine:

FTTH Outdoor Indoor Drop Cable Manufacturing Machine is mainly used to produce 1-12 cores flat and round FTTH drop cable, The material can be LSZH, PVC .This cable Used as access building cable in premises distribution system.

1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine

2.Technical parameters of FTTH Outdoor Indoor Drop Cable Manufacturing Machine :

No

Item

Paramters
1
Structure Speed
190m/min
2
Max.Production Speed
≥ 120m/min for LSZH material
3
Optical fiber bobbin size
Φ236 x Φ160 x Φ108 or Φ300 x Φ160 xΦ250
4
Optical fiber tension
0.5~3N (adjustable)
5
Take-up tension
5~20N (adjustable)
6
Take-up bobbin size
PN400-PN 630mm
7
Length of line
26m
8
Central height of line
1000mm
9
Power
50KW

4.Main items for FTTH Outdoor Indoor Drop Cable Manufacturing Machine:

Items Qty.
1.0/1.2mm steel wire pay-off 1set
12heads active pay-off 1set
Mobile mold supporting 1set
50/70mm main extruder 1set
50kg /75kg Dryer +hopper 1set
IPC+PLC program control systerm 1set
2.5mm moving water trough and warm water tank 1set
8mm fixed type cooling water trough and cooling water tank 1set
X or X-Y laser diameter gauge 1set
dual-wheel capstan 1set
9m cable accumulator 1set

400-630mm dual-shaft take-up machine

 1set

1-12 Cores FTTH Outdoor Indoor Drop Cable Manufacturing Machine
