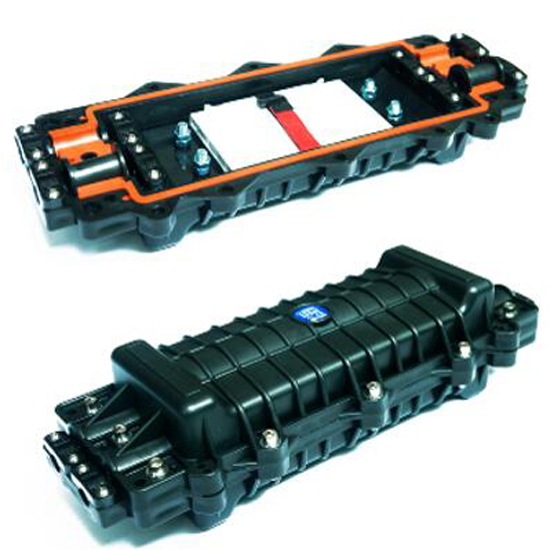

H015 Inline Type Fiber Optic Joint Enclosure

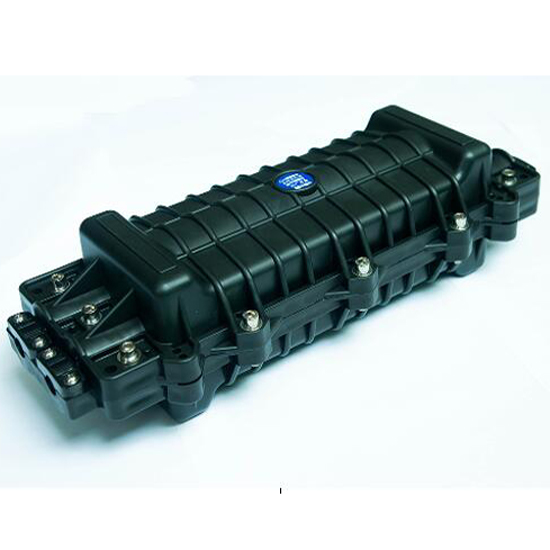

H015 Inline Type Fiber Optic Joint Enclosure
H015 Inline Type Fiber Optic Joint Enclosure
H015 Inline Type Fiber Optic Joint Enclosure
Specifications
Brand Name :
OMC or OEM
Model Number :
H015
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit Card
Supply Ability :
100000 pcs per month
Delivery Time :
3-7 days
Packaging Details :
One piece in a paper carton
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OMC or OEM
Model Number: :
H015
Application: :
Telecom
Certification: :
RoHS
Color: :
Black
Material: :
PC, ABS, PPR
Warranty: :
3 Years
Dimension: :
460×182×120 (mm)
Weight: :
2300g-2500g
cable size: :
Φ5 —Φ20 (mm)
Capacity: :
Bunchy: 12—96 (Cores)
cable port: :
4 pieces
Description

H015 Inline type 4 port Black IP65-68 Plastic Fiber Optic Joint Closure

FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.

OMCH015

1. Scope of application

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃.

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH) 460×182×120 (mm)
Weight (excluding outside box) 2300g-2500g
Number of inlet/outlet ports 2 (pieces) on each side (total 4 pieces)
Diameter of fiber cable Φ5—Φ20 (mm)
Capacity of FOSC

Bunchy: 12—96(Cores)

Ribbon: max. 288(Cores)

2.2 Main components

No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole

Internal diameter:

460×182×60 (mm)
2

Fiber optic splice tray

(FOST)

max. 4 pcs (bunchy)

max.4 pcs (ribbon)

 Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Foundation 1 set Fixing reinforced core of fiber- cable and FOST
4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 2 pieces Sealing empty ports

2.3 Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices Configuration as per requirement
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 1 pieces Fixing bolts, tightening nut of reinforced core
10

Buffer tube

 1 piece Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement

3. Necessary tools for installation

3.1 Supplementary materials (to be provided by operator)

Name of materials Usage
Scotch tape Labeling, temporarily fixing
Ethyl alcohol Cleaning
Gauze Cleaning

3.2 Special tools (to be provided by operator)

Name of tools Usage
Fiber cutter Cutting off fibers
Fiber stripper Strip off protective coat of fiber cable
Combo tools Assembling FOSC

3.3 Universal tools (to be provided by operator)

Name of tools Usage and specification
Band tape Measuring fiber cable
Pipe cutter Cutting fiber cable
Electrical cutter Take off protective coat of fiber cable
Combination pliers Cutting off reinforced core
Screwdriver Crossing/Paralleling screwdriver
Scissor
Waterproof cover Waterproof, dustproof
Metal wrench Tightening nut of reinforced core

3.4 Splicing and testing instruments (to be provided by operator)

Name of instruments Usage and specification
Fusion Splicing Machine Fiber splicing
OTDR Splicing testing
Provisional splicing tools Provisional testing

Notice: The above-mentioned tools and testing instruments should be provided by the operators themselves.
