605 x 215 x 175mm Fiber Optic Closure , Fiber Optic Joint Enclosure For Telecom
605 x 215 x 175mm Fiber Optic Closure , Fiber Optic Joint Enclosure For Telecom
605 x 215 x 175mm Fiber Optic Closure , Fiber Optic Joint Enclosure For Telecom
605 x 215 x 175mm Fiber Optic Closure , Fiber Optic Joint Enclosure For Telecom
Specifications
Brand Name :
OMC or OEM
Model Number :
H016
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit Card
Supply Ability :
100000 pcs per month
Delivery Time :
3-7 days
Packaging Details :
One piece in a paper carton
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OMC or OEM
Model Number: :
H016
Application: :
Telecom
Certification: :
RoHS
Color: :
Black
Material: :
PC, ABS, PPR
Warranty: :
3 Years
Dimension: :
605x215x175 (mm)
Weight: :
3050g-4600g
cable size: :
Φ8 —Φ23 (mm)
Capacity: :
Bunchy: 48—288 (Cores)
cable port: :
4 pieces
Description

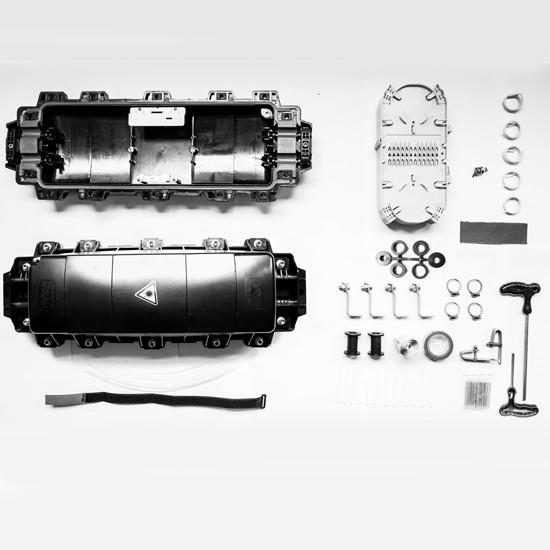

H016 Inline type 4 port Black IP65-68 Plastic Fiber Optic Joint Closure

FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.

OMCH016

1. Scope of application

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃.

2. Basic structure and configuration

Dimension and capacity

Outside dimension (LxWxH) 605x215x175 (mm)
Weight (excluding outside box) 3050g-4600g
Number of inlet/outlet ports 2 (pieces) on each side (total 4 pieces)
Diameter of fiber cable Φ8—Φ23(mm)
Capacity of FOSC

Bunchy: 48—288 (Cores)

Ribbon: max.1152(Cores)

3. Necessary tools for installation(to be provided by operator)

Name of tools Usage
Fiber cutter Cutting off fibers
Fiber stripper Strip off protective coat of fiber cable
Band tape Measuring fiber cable
Scissor
Metal wrench Tightening nut of reinforced core
Screwdriver Crossing/Paralleling screwdriver
