FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
Specifications
Brand Name :
JQ
Model Number :
GYXTC8Y
Certification :
ISO9001/CE/RoHS
Place of Origin :
CHINA
MOQ :
1KM
Packaging Details :
Wooden package
Description
FTTH Fig 8 Cable 2 4 6 8 12 figure 8 fiber optic cable GYXTC8Y
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
Products Description

GYTC8Y/GYXTC8Y

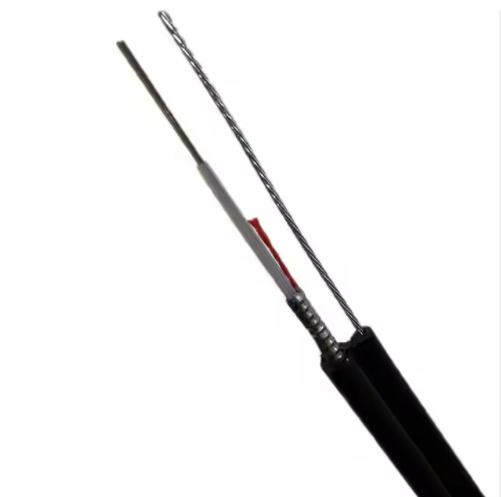

Mini Figure Fiber Optic Cable 8 12 24 Core GYXTC8Y Self Supporting
FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE

Features

▶ Good mechanical and temperature performance.

▶ High strength loose tube that is hydrolysis resistant.
▶ Special tube filling compound ensure a critical protection of fiber.
▶ Special designed compact structure is good at preventing loose tube from shrinking.
▶ Crush resistance and flexibility.
▶ PE sheath protects cable from ultraviolet radiation
▶ The following measures are taken to ensure the cable watertight:
▶ Steel wire used as the central strength member
▶ Loose tube filling compound
▶ 100% cable core filling
▶ APL enhancing moisture-proof
▶ Application:duct/aerial/direct buride

Fiber parameter
Item
Unit
Specification
Fiber Type
G652D
Mode field diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.0±1
Cladding non-circularity
％
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
245±7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
μm
≤1260
Attenuation Coefficient
1310nm
dB/KM
≤0.36
1550nm
dB/KM
≤0.22
Proof stress level
kpsi
≥100
Note: Other parameters meet standard ITU-T G.652

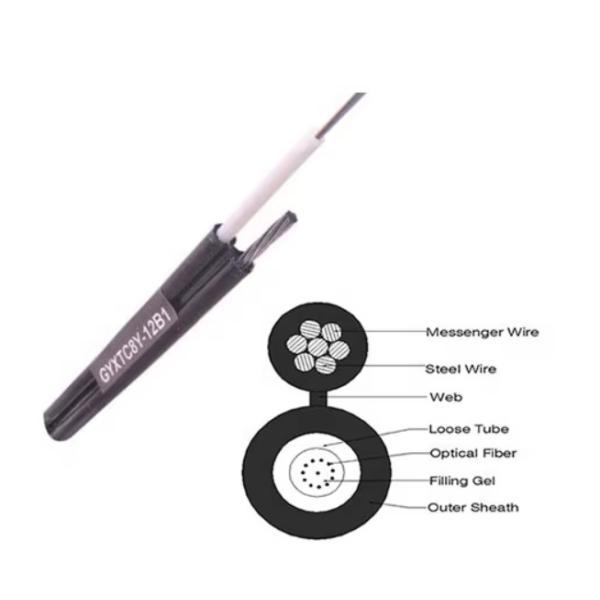

Fiber Optic Cable GYXTC8Y
Jacket thickness
1.8 ±0.2mm
Strength member
Steel Wire
1.0mm
Fiber count
2~12 Cores
Fiber Type
G652D
Jacket
HDPE
Loose tube
PBT
2.0mm
Cable Diameter
4.4*7.5mm
Application
Overhead laying

FIGURE8 FIBER OPTIC CABLE AERIAL SELF-SUPPORTING GYXTC8Y 4 6 8 12 24 36 48 96 144 CORE
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 2-7 days for small quantity, and about 15 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
