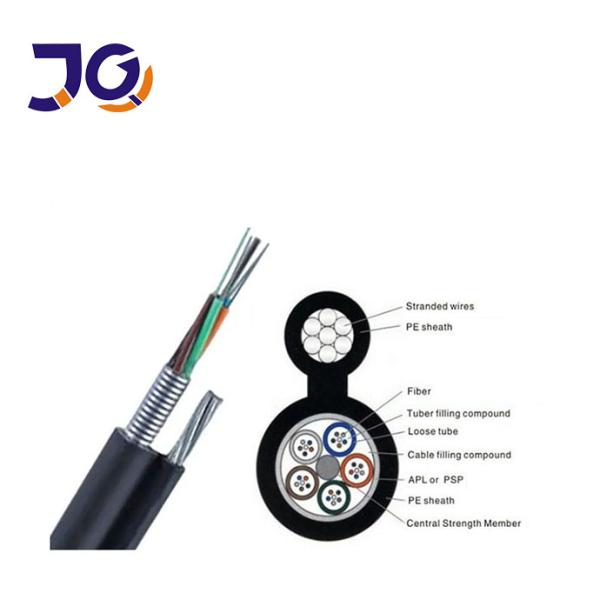

Figure 8 fiber optic cable is constructed by placing a single-mode or multi-mode fiber into a loose sleeve made of high modulus plastic and filled with a water-blocking compound. The center of the core is a metal reinforcement core, and for some cores, a layer of polyethylene is extruded over the metal reinforcement core. The loose tubing (and filler rope) is twisted around the center reinforcement core to form a compact and round core, with the gaps in the core filled with a water-blocking filler. The cable core is wrapped longitudinally with steel-plastic composite tape and placed in parallel with the steel strand while squeezing the 8-letter sheath into the cable.

Features:

1. Steel belt armor: provides good tensile strength and lateral pressure resistance, ensuring the stability of the optical cable in harsh environments.

2. 8-shaped self-supporting structure: has high tensile strength, is convenient for overhead laying, and reduces safety costs.

Polyethylene sheath: provides good UV resistance and extends the service life of the optical cable.

3.Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment

4.The tube is filled with special grease to protect the optical fiber critically

5. Polyethylene sheath makes the cable have good UV resistance

Specification:

Cable Type: Figure 8 Self-SupportingAerial Outdoor Fiber Optic Cable

Fiber Type: G652D
Jacket Material: Polyethylene (PE)
Total Fiber Count: 4-288 Cores
Loose tube:PBT

Application: Aerial

Armor: Corrugated Steel Armoring

Optical Characteristics
