Product Description
GYTA33 Fiber Optic Cable

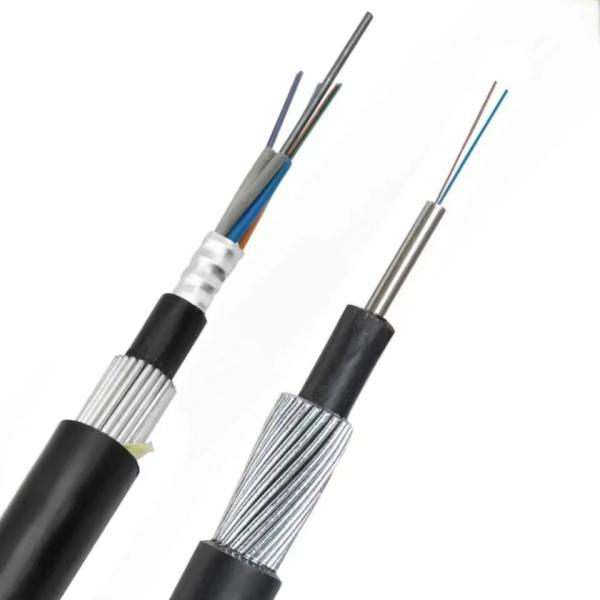

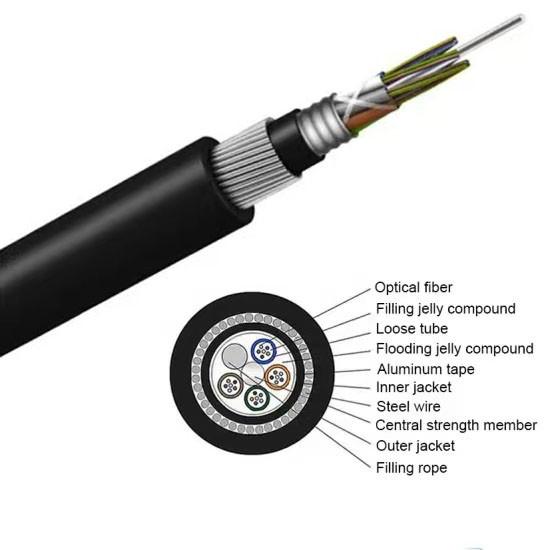

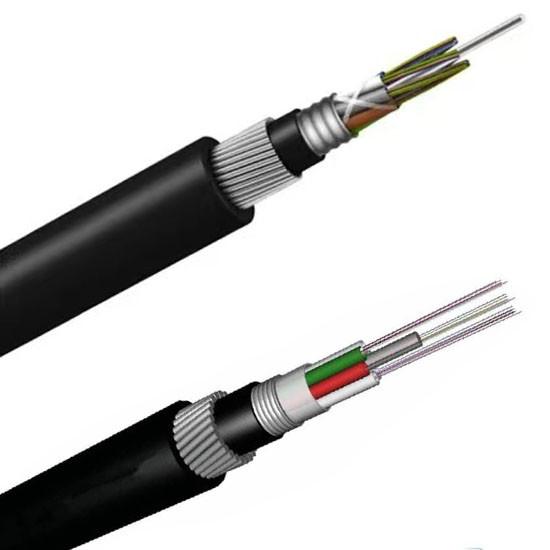

The GYTA33 cable features optical fibers housed in PBT loose tubes filled with thixotropic compound. A central steel wire serves as the strength member, with large-core designs adding a PE cushion layer. The loose tubes are SZ-stranded around the central strength member, and the cable core gaps are filled with water-blocking gel. The outer layer is armored with a single thin round steel wire and covered with a polyethylene sheath for enhanced protection.
Features:
-
High-quality optical fibers ensure excellent transmission performance.
-
Precise control of fiber excess length guarantees strong mechanical and temperature resistance.
-
Loose tubes filled with special gel offer optimal fiber protection.
-
Full-section water blocking provides reliable moisture and water resistance.
-
Corrosion-resistant phosphated steel wire with high Young’s modulus acts as the central strength member, delivering strong tensile strength.
-
Longitudinal armor combining coated aluminum tape and stranded steel wires provides high crush resistance, tensile strength, bulletproof protection, and suitability for heavy-duty direct burial and underwater installation.
-
Strict manufacturing and raw material standards ensure a service life exceeding 30 years.
Application:
Submarine optical fiber cables are installed in seas and rivers to support communication and data transmission between continents, mainland, islands, and offshore equipment. They offer high transmission capacity and long continuous lengths.
| item | value |
| Model Number | GYTA33 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum Tape armor |
| Color | Black or as your need |
| Application | Direct burial, underground,sea |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Packing
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers.
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
