Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Specifications
Brand Name :
JQ/OEM
Model Number :
GYTA53
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
G652D
Color :
Black
Jacket :
PE,MDPE
Fiber count :
2-288cores
Product name :
Stranded loose tube armored cable
Length :
2km or customized length
Installation :
Aerial & Duct
Oem :
Available
Application :
Telecommunication
Type :
Singlemode &Multimode
Name :
Outdoor armor fiber optic cable
Description
Product Description

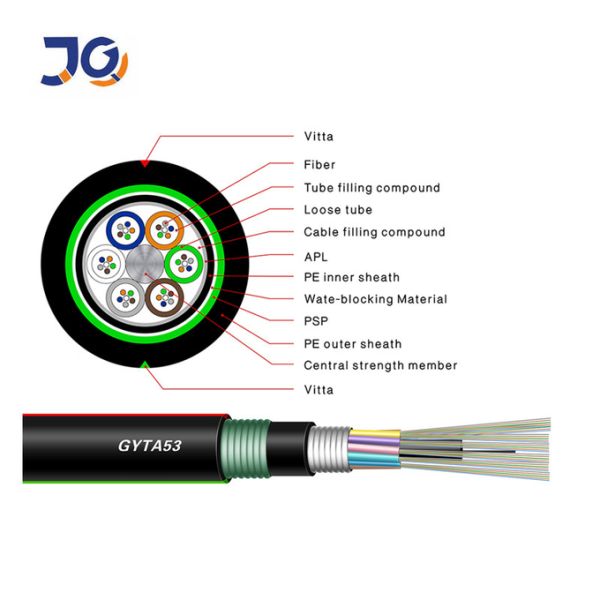

GYTA53 Outdoor Optical Cable is a steel belt armored outdoor direct buried optical cable. burial fiber optic cable The center of the cable core is a metal reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath,and the double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.
Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Features


1: Direct Burial Fiber Optic Cable Loose tube gel-filled construction for superior fiber protection
2: Double jacket single armored(GYTY53) and Double jacket double armored
3: (GYTA53) for rodent protection and direct burial.
4: UV and moisture-resistant design

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Application

Suitable for directly buired laying method

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical parameters

Items
Specifications
Fiber Count
24CORE
Cable structure
5+1
Loose tube
Number
4
Fiber counts per tube
6
Dimension
2.0mm±0.1mm
Material
PBT
Filling
Gel
Color
Blue Orange Green Brown

Central Strength Member
Material
Steel Wire
Diameter(mm) Approx.
1.5±0.1mm
Outer/inner Jacket
Dimension
11.7± 0.2mm
Material
PE
Thickness
1.5-1.8mm
Color
Black
Armoring
Material
Steel tape +Aluminum tape
Application
Underground Directly buried/duct
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information

Similar model: GYFTA53 FRP as Strength member

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Packing

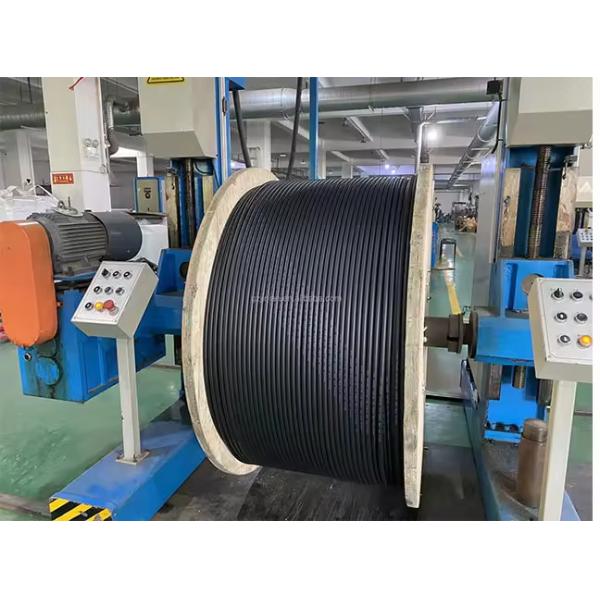

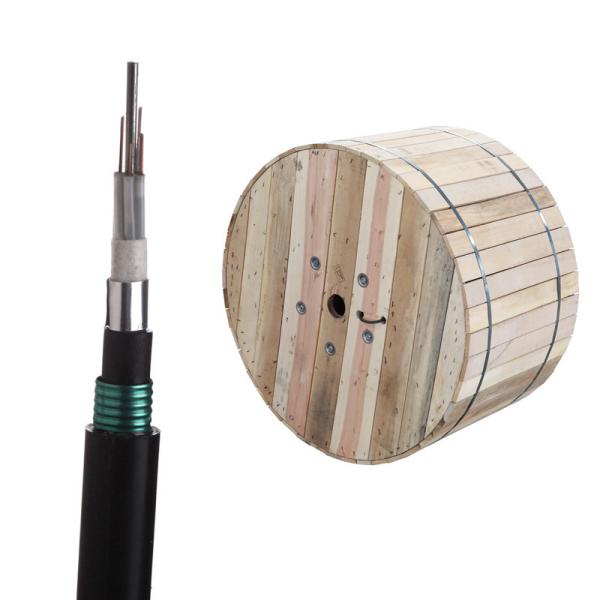

1/2/3/4km or customized length export wooden drum

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
