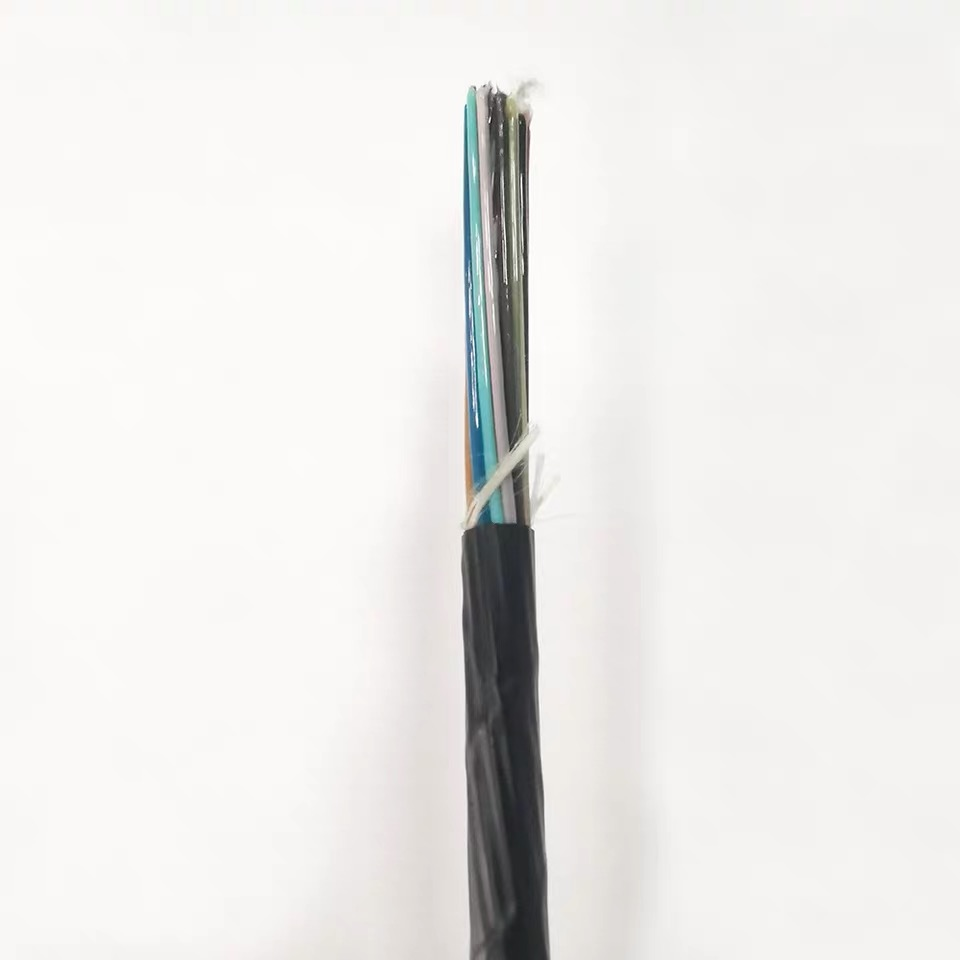

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GCYFY/GCYFTY
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
2-288 Cores
Fiber type :
single mode/multi mode
Jacket :
PE/PVC/LSZH/HDPE/MDPE
Product name :
Air-blown Micro Cable
Length :
2km or customized length
Installation :
Aerial or Duct Pipe Laying
Number of conductors :
≥ 10
Description

GCYFY GCYFTY Air Blown Micro Fiber Optic Cable for Outdoor Duct Installation

Product Features

  • Air blown micro cable design for fast and efficient installation

  • Non metallic reinforcement with lightweight flexible structure

  • Loose tube stranded design for stable fiber protection

  • High pipeline utilization and easy network expansion

  • Suitable for micro duct blowing and pulling installation

Application Scenarios

  • Outdoor duct and micro duct fiber networks

  • FTTH and FTTX access network deployment

  • Urban communication pipeline systems

  • High density fiber infrastructure projects

Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH
GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC

Product Detail

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH

GCYFY Air Blown Micro Fiber Optic Cable 72 96 144 Core Small Diameter For FTTH

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer with 10 years of experience in fiber optic cables, FTTH drop cables and patch cords. Our factory is located in Guangzhou.

2. How do you ensure product quality?
All products are tested before delivery. Free samples are available after price confirmation.

3. Do you accept small orders?
Yes, small and trial orders are welcome.

4. What is your delivery time?
Usually 3–7 working days depending on order quantity.

5. Do you provide OEM service?
Yes, we support OEM service including logo printing and product customization.
