GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GCYFY/GCYFTY
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
4-144Cores
Fiber type :
single mode/multi mode
Jacket :
PE/PVC/LSZH/HDPE/MDPE
Color :
Black or orange or Customized
Product name :
Air-blown Micro Cable
Structure :
Micro Cable
Installation :
Aerial or Duct Pipe Laying
Number of conductors :
≥ 10
Description

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features

  1. GCYFY air blown micro cable adopts loose tube stranded structure with non metallic strength member and no armor design

  2. Designed for hauling or air blowing installation into pre installed micro ducts

  3. Air blowing installation improves duct utilization and reduces construction cost

  4. Easy network expansion without replacing existing pipelines

  5. Lightweight and compact structure for flexible deployment

Applications

  1. FTTH feeder and drop segments using air blown installation

  2. Connection between branch points and subscriber access points

  3. Backbone network deployment

  4. Metropolitan area network applications

  5. Access network construction

Product Description

1. Model: GCYFY

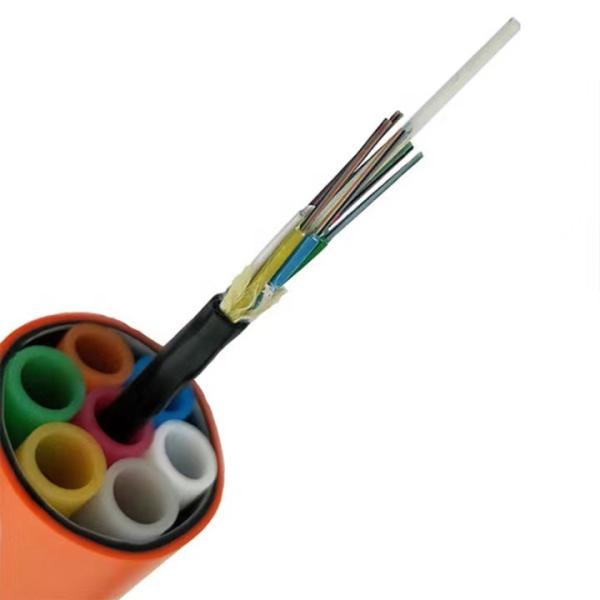

2. Cable Cross-section

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

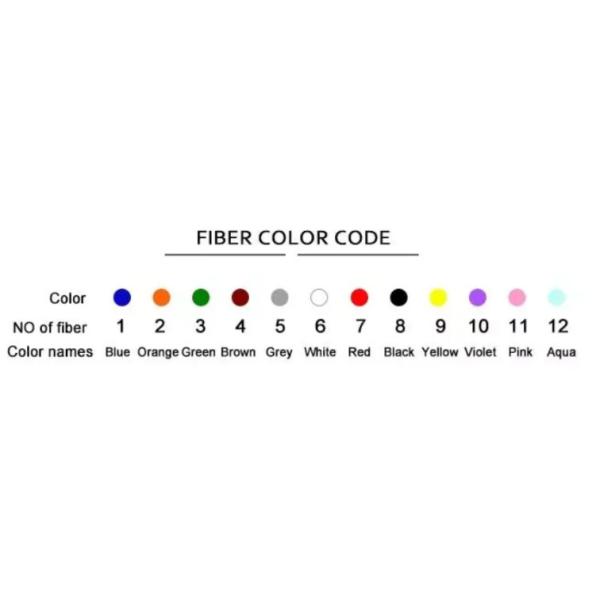

Fiber & Tube Color

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

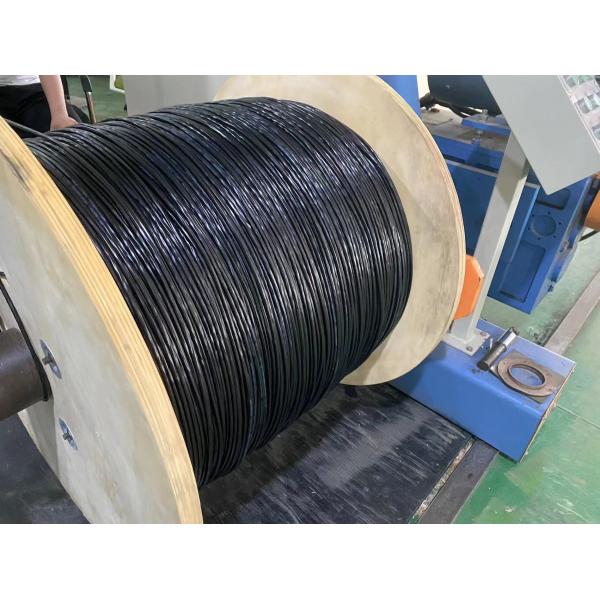

Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
