1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
Specifications
Brand Name :
JQ/Customize
Model Number :
GJXFH-1B6
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1KM
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100KM Per day
Delivery Time :
5-8 work days
Packaging Details :
wooden package or cartoon box
Fiber count :
1/2/4/6 Core
Jacket Color :
Black,White
Jacket Material :
LSZH
Attenuation(max) :
≤0.36dB /KM(1310nm)
Strength member :
Two FRP Member
Weight :
20kgs/km
Application :
FTTH,Network
Description

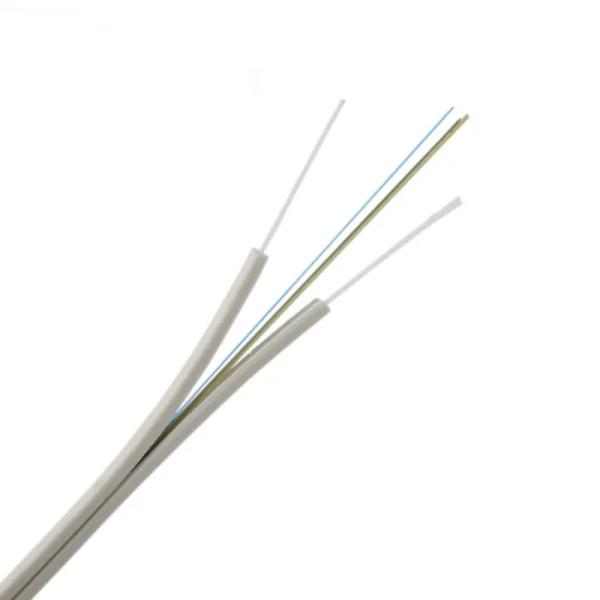

FTTH Drop Cable 1 Core G657A1 LSZH Indoor – GJXFH-1B6

Features
• Excellent mechanical and environmental performance
• UV-resistant and compliant with industry standards
• Soft, flexible, and easy to install or splice
• High-capacity data transmission
• Designed to meet diverse market needs

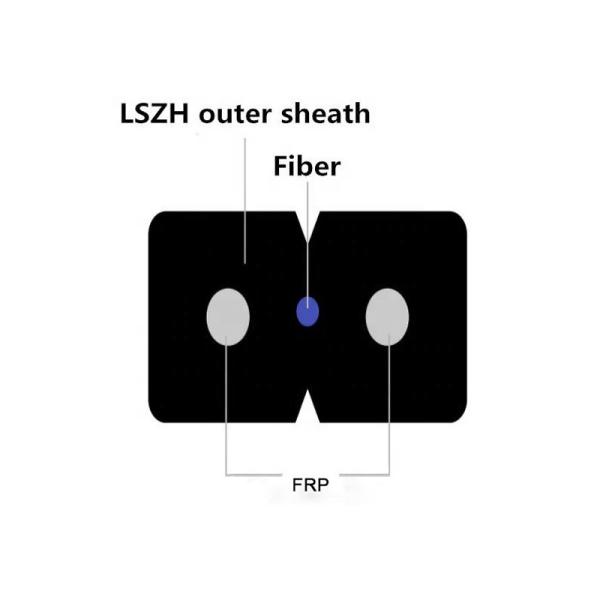

Description

FTTH fiber optic cable is Fiber to Home

Self Supporting Construction: 2*0.5mm FRP

Fiber: 250µm colored G657A1 fiber

Strength Member: Steel wire or FRP
Outer Jacket: Flame-retardant LSZH

Applications
• Indoor/outdoor wiring
• FTTH and terminal connections
• Building shafts and distribution networks

Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require

  • 1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use

Outdoor type GJYXFCH-1B6

1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use

Package

Nominal shipping length of the cable will be 1 or 2 km.

Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

1-4 Core FTTH Drop Cable GJXFH-1B6, G657A1 Single Mode, LSZH Indoor Use
