Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y
Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y
Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y
Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y
Specifications
Brand Name :
JQ/OEM
Model Number :
GYTC8S/GYTC8Y
Certification :
ISO9001 ROHS CE
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
G652D
Fiber count :
2-144 Cores
Color :
Black
Messenger wire :
7*1.0 steel stranded wire
Structure :
Figure 8 cable
Type :
Singlemode & Multimode
Operating temperature :
-40 ~ +60 C
Application :
Outdoor aerial application
Product name :
Figure 8 Self Support Fiber Optical Cable
Description

Self-Supporting Cable GYTC8S GYTC8Y

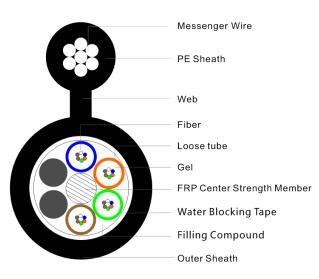

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates or FRP in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.

Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y

Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y

Features


---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 9.0*14.5 155
6 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
8 1+5 8 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
24 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
36 1+6 12 1.9±0.1 1.6/1.6 1.6 9.6*15.2 168
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.6*15.2 168
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.8*16.3 190
96 1+8 12 2.2±0.1 1.6/3.5 1.6 12*17.5 205
144 1+12 12 2.2±0.1 2.0/6.4 1.8 15.8*21.3 320

Packing

• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available

Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y

Singlemode 144 Cores Self - Supporting Cable GYTC8S GYTC8Y
