UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications
UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications
UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications
UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications
Specifications
custom made :
support
Brand Name :
MRJH
Model Number :
Fast rolling door
Certification :
ISO,CE,UL,RoHS
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
Description
Fast Rolling Door | UL/CE Certified | 2.5m/s Airport & Pharma Grade
UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications

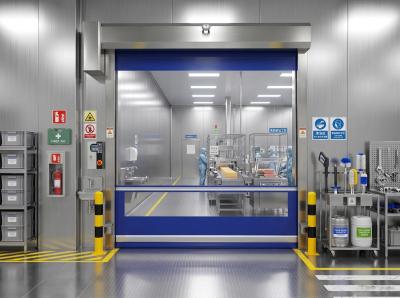

High-speed roll-up door with emergency reverse safety sensors and 0.8mm reinforced PVC curtain. Adjustable speeds (0.6-2.5m/s), ideal for factories, cold storage, and automated warehouses.

Technical Specifications
Parameter Name Value
Door Structure Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish
Drive System 220V/50Hz electric motor, 2.2KW power output
Safety System Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction
Operating Speed Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable)
Door Curtain Material French industrial polyester fiber with dual PVC coating (0.8mm thickness)
Wind Resistance German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance
Transparent Window 1.2mm thick horizontal PVC strip for visibility during entry/exit
Sealing System Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof)
Control Mode Manual switch + radar motion sensor activation
Limit Switch Precision travel locator for one-time positioning accuracy
Product Features
  • Extreme Environment Performance
    Material: 1.2mm 3105-H26 aluminum slats + TPU flex joints (-50°C flexibility)
    Wind Resistance: 12kPa (equivalent to 150mph winds) with vertical track reinforcement
  • Smart Control System
    Radar/inductive loop hybrid sensors (EN 16005 compliant)
    Predictive maintenance alerts via IoT module (RS485/MQTT protocol)
  • Hygienic & Energy Efficient
    PVC curtain option (ISO 22196 compliant)
    0.5s emergency stop reaction time (ANSI MH27.1 safety standard)
Application Scenarios
  • Aerospace Hangars
    12m wide doors for Boeing 737/A320 access (MIL-STD-810G vibration resistance)
  • Pharmaceutical Freeze-Dryers
    -50°C rated doors for lyophilization chambers (EU GMP Annex 1 validated)
  • Food Processing Blast Freezers
    Washdown-ready (IP69K) with NSF/3-A 36-03 certification
  • Automotive Paint Shops
    Explosion-proof models (ATEX Zone 2) for solvent vapor zones
  • Data Center Entrances
    EMI-shielded variants (IEEE 299-2006) for server farm protection
Compliance & Certifications
  • Material fire resistance: DIN 75200
  • Safety sensors: ISO 13849-1 PLc
  • Operational temperature range: -30°C to +70°C
Notes
  • Customizable curtain colors per client-provided RAL samples
  • Optional upgrades: Thermal insulation layers, RFID access integration
UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications UL/CE Certified Fast Rolling Door with 2.5m/s Speed for Airport & Pharma Grade Applications
Frequently Asked Questions
Will hurricane-force winds damage the door in coastal airports?
Reinforced aluminum slats (1.2mm thickness) withstand 12kPa wind pressure (ASCE 7-22 Category IV compliant).
How to reduce energy loss in -30°C cold storage environments?
Dual-polycarbonate thermal strips (U-value 0.85 W/m²K) and triple-seal edges meet ASHRAE 90.1-2022.
Can custom widths beyond 6m be motorized for aircraft hangars?
Yes, modular design supports up to 12m spans with synchronized dual-motor drives (EN 13241-1 certified).
