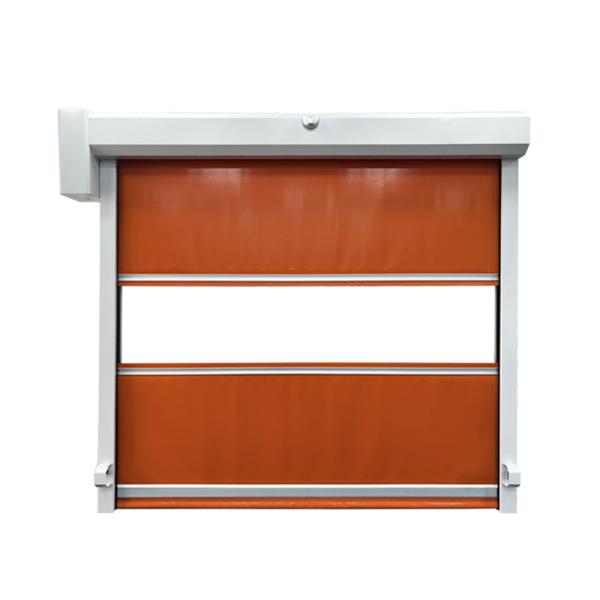

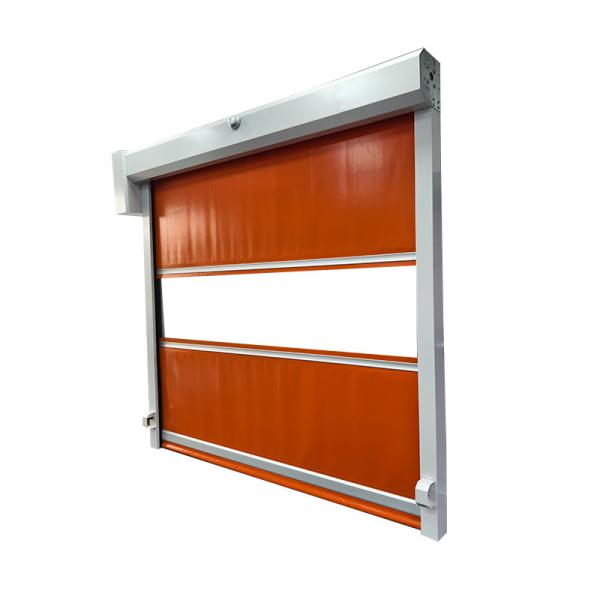

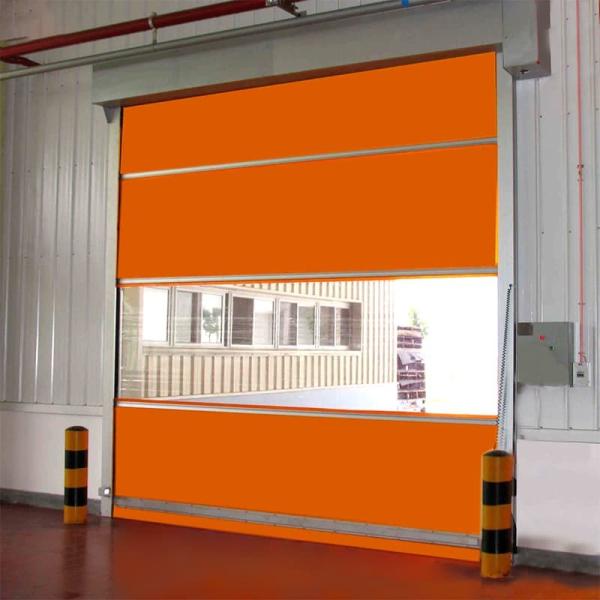

2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
Specifications
Certification :
ISO、CE、UL
Brand Name :
MRJH
Model Number :
Fast rolling door
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
custom made :
support
Description
Cold Storage & Pharmaceutical | 2.5m/s Hygienic Rapid Doors with Antibacterial Coating
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
Engineered for ultra-hygienic environments, these rapid doors operate at 2.5m/s while integrating a silver-ion antibacterial coating to inhibit microbial growth. Designed to meet FDA, EU GMP, and ISO 14644 standards, they ensure thermal insulation (U-value ≤0.8 W/m²*K) and contamination control for cold storage, pharmaceutical cleanrooms, and sterile processing zones.
Parameter Name Value
Door Structure Precision-crafted stainless steel frame with anti-slip, wear-resistant surface finish
Drive System 220V/50Hz electric motor, 2.2KW power output
Safety System Dual safety photoelectric sensors at door base; auto-reverse function upon obstruction
Operating Speed Opening: 0.6-2.5 m/s (adjustable) / Closing: 0.8-2.0 m/s (adjustable)
Door Curtain Material French industrial polyester fiber with dual PVC coating (0.8mm thickness)
Wind Resistance German DIN-standard high-strength aluminum alloy wind bars for up to 12 Beaufort resistance
Transparent Window 1.2mm thick horizontal PVC strip for visibility during entry/exit
Sealing System Weighted air-sealed bottom cloth + rubber side seals (insect/dust-proof)
Control Mode Manual switch + radar motion sensor activation
Limit Switch Precision travel locator for one-time positioning accuracy
Key Features
  • Hygienic Surface Protection
    Nano-silver coating (tested per ISO 22196) reduces bacterial colonization, including E. coli and Staphylococcus aureus.
  • Ultra-High Speed & Efficiency
    2.5m/s operation minimizes temperature loss, with 0.3-second reaction time for radar or motion sensor activation.
  • Sub-Zero Durability
    -40°C-rated PVC curtain and stainless steel frame withstand extreme cold without brittleness or seal failure.
  • Airtight Sealing System
    Triple-layer brush seals and magnetic gaskets achieve ≤0.05mm gaps, blocking humidity and airborne contaminants.
  • Hygienic Design
    Smooth, crevice-free surfaces (Ra ≤0.4µm) and CIP-compatible materials enable fast cleaning without disassembly.
Application Scenarios
  • Pharmaceutical Freeze-Drying Rooms: Maintain -50°C environments during lyophilization processes.
  • Vaccine Cold Chain Logistics: Rapid access for pallet transfers while ensuring ≤2°C temperature fluctuations.
  • Dairy Processing Facilities: Prevent cross-contamination between raw and pasteurized zones.
  • Biotech Cryogenic Storage: Ultra-low temperature compatibility (-80°C) for sample preservation.
  • Hospital Sterile Supply Units: Comply with HTM 03-01 standards for surgical instrument transfers.
Compliance & Certifications
  • Material fire resistance: DIN 75200
  • Safety sensors: ISO 13849-1 PLc
  • Operational temperature range: -30°C to +70°C
Notes
  • Customizable curtain colors per client-provided RAL samples.
  • Optional upgrades: Thermal insulation layers, RFID access integration.
2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments 2.5m/s Hygienic Rapid Door with Silver-Ion Antibacterial Coating for ISO 14644 Compliant Environments
Frequently Asked Questions
How long does the antibacterial coating remain effective under frequent washdowns?
The nano-silver layer retains 98% efficacy after 500+ CIP cycles (validated per ASTM E2180), ensuring long-term microbial resistance.
Can the door operate reliably in -80°C cryogenic environments without motor failure?
Yes, the cold-optimized motor uses low-temperature lubricants and heated housing to prevent freezing, certified for continuous use at -80°C.
Does the door meet strict cleanroom particle limits for Grade A/B areas?
Absolutely. The airtight design maintains ISO Class 5 air quality, with optional HEPA-filtered air showers for critical zones.
