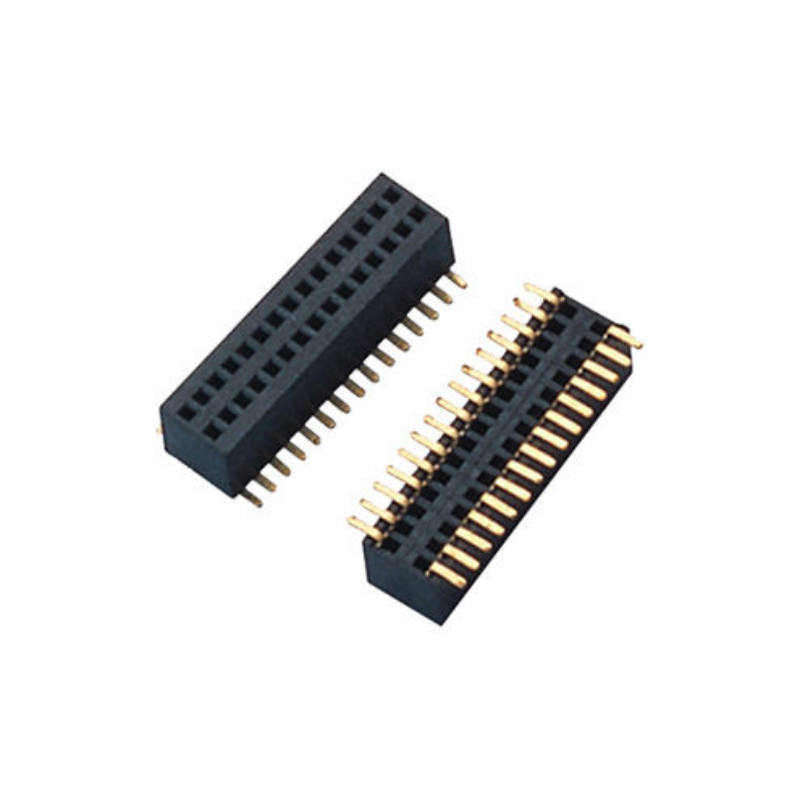

SMT Double Row Female Header 2x40 Pin 2.0mm Pitch Gold-Plated PCB Connector Made of Brass

Highlight

1. Multiple custom mechanical options: straight/right-angle / SMT termination, customizable plastic insulator height
2. SMT pick‑and‑place ready: optional pick‑up cap for automatic SMT mounting
3. Support Tape & Reel & Tube packaging for different production lines
4. Brass contact with selective gold plating, stable signal transmission
5. RoHS‑compliant; customizable pin count, plating thickness & housing material

Product Description

Mechanical Performance

Environment & Soldering

Compatibility & Cross‑Reference

Direct drop‑in alternative for mainstream 2.0 mm dual‑row SMT female header series from Molex, JAE, Samtec, TE.

Note: Verify mechanical dimension, plating thickness and PCB pad layout before direct replacement for your existing project. No modification needed for most standard 2.0 mm pitch board‑to‑board mating applications.

Product Features

1. Brass contact body delivers good conductivity and anti‑fatigue performance
2. SMT footprint optimized for dense PCB layout, saves board space
3. Optional pick‑up cap eliminates manual handling for high‑volume SMT assembly
4. Flexible custom: insulator height, pin‑out, plating, orientation upon request
5. Stable mating contact, resists vibration for industrial working conditions

Product Advantage

• Factory-direct custom service, avoiding long lead times from overseas brand agents
• Dual packaging solution: Tape & Reel for auto‑mount line; Tube for prototype / small‑batch trial
• Strict AOI post‑soldering inspection for terminal coplanarity
• Support fast sample validation & mass‑production ramp‑up
• Cost‑effective drop‑in replacement vs imported equivalents without sacrificing reliability

Application

• Industrial control modules & embedded controller boards
• Communication gateway & signal transmission PCB
• Smart device mainboard & peripheral interface connection
• Medical auxiliary equipment PCB interconnection
• Test fixture, automation equipment internal wiring
• Consumer electronics with compact board‑to‑board connection

Packaging Method

1. Tube packaging: For prototype / low‑volume batch, manual insertion or semi‑auto assembly. Cannot feed directly to SMT pick‑and‑place machine.
2. Tape & Reel (T&R): EIA‑481 standard carrier tape, with optional pick‑and‑place cap. Directly usable for automatic SMT placement equipment for mass‑production lines

Please specify packaging requirement when placing inquiry.

Lead Time

• Sample order: 3 working days
• Mass production orders: 1‑3 weeks, subject to quantity & customization complexity

Factory Certification & Custom Service

• Certifications: ISO9001, RoHS compliance
• Sample Policy: Free samples supported, fast sample delivery
• MOQ: Standard part MOQ:1000 pcs; Customized parts subject to tooling requirements
• Customizable items: pin count, insulator height, straight/right-angle / SMT type, gold plating thickness, pick‑up cap enable/disable, special housing material.

Engineer Selection Guide (Engineer Tips)

1. Confirm pitch: strictly 2.0 mm; verify mating male header dimension
2. Confirm mounting style: SMT / straight through‑hole / right‑angle
3. Confirm insulator plastic height, critical for PCB clearance height
4. Confirm packaging: select Tape & Reel if you use auto SMT pick‑and‑place equipment; select Tube for lab & manual assembly
5. Specify gold plating thickness according to service life & vibration environment
6. Send us your PCB pad drawing or original part number for 1‑on‑1 verification before final order

Reminder: Please run prototype sample test before full‑volume mass production to validate mating performance, soldering result and mechanical fit.
