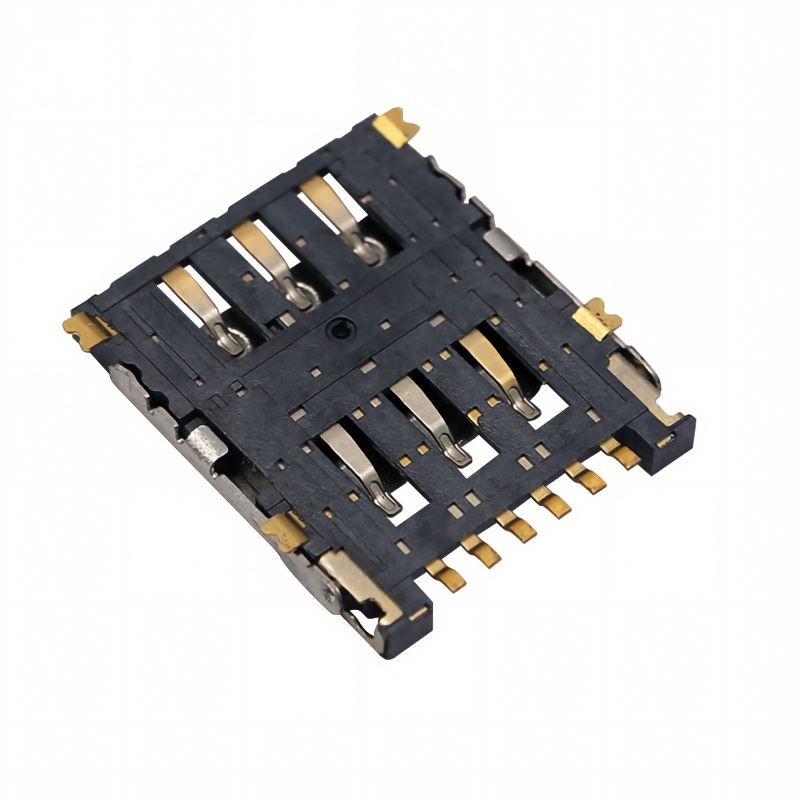

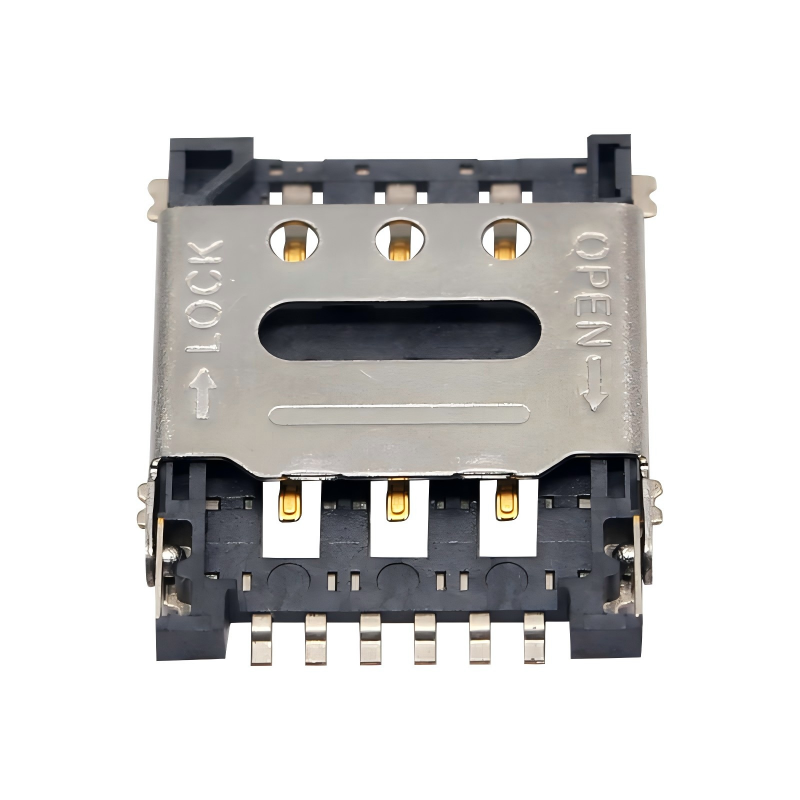

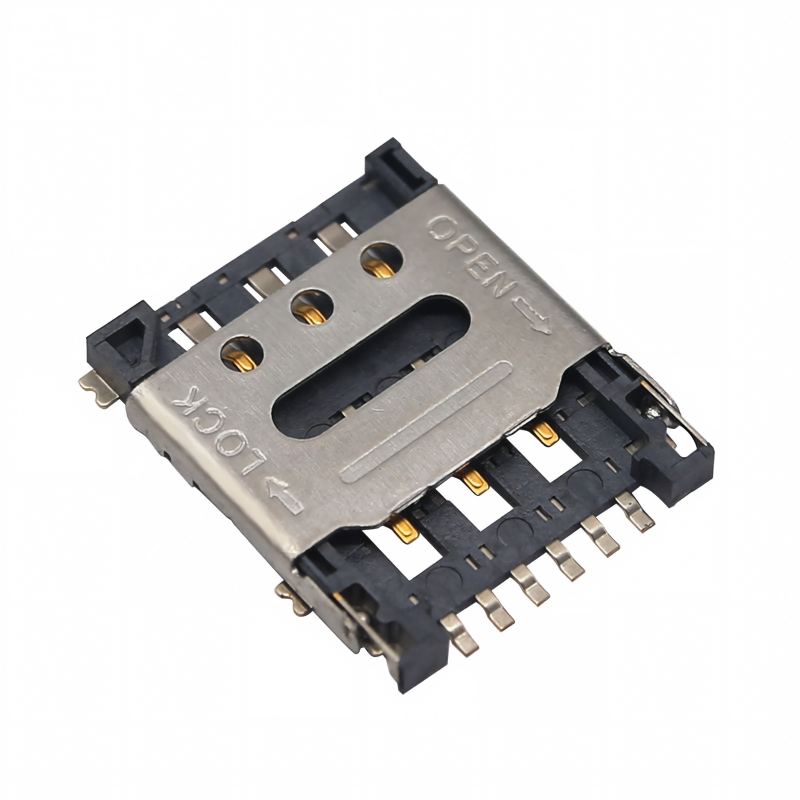

Nano SIM Card Slot Connector 6 Pin Flip Cover Style 1.45H PCB Mounting Nickel Gold Plating

Product Description

Feature

1. General characteristics

Dimensions:21.24LX17.76WX1.32H mm

Weight:1.0g

Contact principle: Friction technology

Operating position: shaft up/down/horizontal

Mounting system:SMT(post optional)

Durability:1,500 cycles min

2. Mechanical characteristics

Insulation material: Thermoplastic

3. Electrical characteristics

Number of contacts:6pins

Contact resistance:50MΩ typical,1000 MΩ max

Insulation resistance:>1000 MΩ/500V DC

4.Solderability

Wave: not applicable

Vaporphase:215^oC30sec Max

IR reflow:230^oC,15sec Max

Manual soldering:360^oC,3sec.Max

5. Environmental characteristics

Operating temperature-40^oC +85^oC

Operating humidity:10%≈+95%RH

Storage temperature:-40^oC≈+85^oC

Storage humidity:10%≈95%RH

Thermal shock: -40^oC≈+85^oC,5cycles

Damp Heat:40^oC,90%RH,10days

Salt-mist:35^oC,5%Nacl,24H

Applications

IoT & M2M Devices

Suitable for compact connected devices requiring removable cellular connectivity:

• Industrial IoT gateways
• Smart meters
• Asset trackers
• GPS trackers
• Remote monitoring devices
• M2M communication terminals

4G / 5G Communication Equipment

Potential applications include:

• 4G LTE terminals
• 5G CPE devices
• Cellular routers
• Wireless gateways
• Mobile communication modules
• Portable hotspots

Industrial Electronics

The compact PCB mounting structure can be considered for:

• Industrial controllers
• Remote data acquisition equipment
• Smart monitoring devices
• Industrial gateways
• Connected sensors

Consumer & Portable Electronics

Possible applications include:

• Portable terminals
• Handheld devices
• Smart devices
• POS terminals
• Portable communication equipment
• Embedded wireless products
