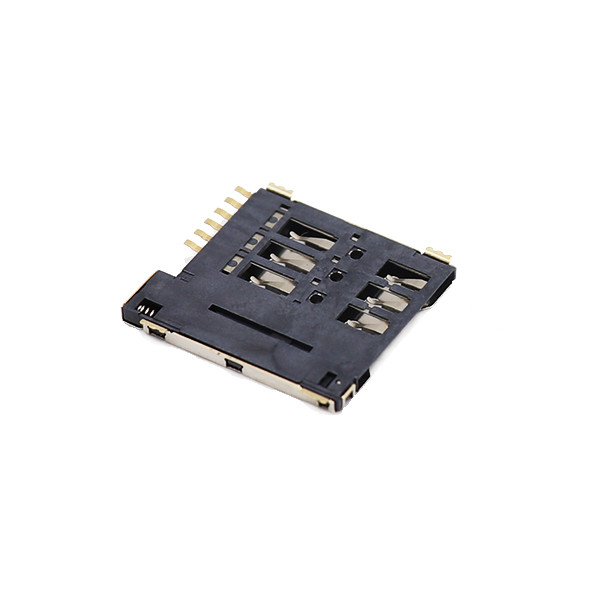

SMT TF / Micro Sim Card Connector
SMT TF / Micro Sim Card Connector
SMT TF / Micro Sim Card Connector
SMT TF / Micro Sim Card Connector
Specifications
Rated voltage :
100V AC/DC
Rated current :
0.5A AC
Contact :
Copper alloy
Durability cycles :
5000 Cycles Min
service :
samples for free
Brand Name :
XTKCONN
Model Number :
Micro sim card connector
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Insulation Resistance :
1000m ohms min
Description

Push Push Micro Sim Card connector in the Communication Equipments

Product Detail

The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication, and personal information for use in mobile network terminals. To make power and electrical signals "uninterrupted", "unchangeable," and "undecayed", contact reliability technology is particularly important. MSTCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards, and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The MSTCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.

Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.

Description

Mounting Type SMT
No. Of Positions 6p
Rated current 0.5A AC
Rated voltage 100V AC/DC
Contact Resistance 100m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0 black
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector TYpe Push-push;push-pull,Hinge;Tray type

SMT TF / Micro Sim Card Connector

Drawing

SMT TF / Micro Sim Card Connector

Product Feature

A variety of circuit sizes delivers both high reliability and speedy data rates.

1. XTK has many types of card connectors: SD/TF/SIM/MICRO SD card connectors.

2. All parts and accessories are made of environmentally friendly materials, in line with the latest RoHS and REACH requirements.
3. The solder joint fitting flatness is controlled at 0.1mm, and the contact tolerance is controlled at 0.02mm.

Our Services & Strength

1)Your inquiry will be replied to within 12 hours.
2) Well-trained & experienced sales can reply to your inquiries in English.
3)During working time, an email will be replied to you within 2 hours.
4)OEM&ODM projects are highly welcomed; we have a strong R&D team.
5)The order will be produced exactly according to the order details and proofed samples. Our QC will submit an inspection report before shipment.
6)Your business relationship with us will be confidential to any third party.
7)Good after-sales service.

Why choose us
1. We own an R&D team of more than 3 engineers, giving you the strongest support!
2. Fast delivery time, we keep long-term stock for you.
3. Factory Sale - The most competitive price at the average level.
FAQ

1. Q: What products and services does our company mainly provide
A: FPC Connector, Wafer socket, Sim card connector, Memory Card connector, cable assembly, design, production and sales.

2. Are you a trading company or manufacturer?
Answer: We are a factory.
3: If I want to customize products, how will it work?
Answer: Pls offer us drawings or pictures, or tell us equipped with professional equipment, technicians & skilled employees. OEM services are welcome. If you do not know, you need to tell us the model of the connector and cable UL number with AWG, the length of the cable, and how to connect each wire to the connector.
3. Ask: When can we get the sample? How about the cost?
Answer: The sample will be sent in 3-5 days for free if the buyer agrees to pay for the shipping cost.

5. Ask: What's your delivery time?
Answer: Our normal delivery time is 10-15 days. If urgent, it will be dealt with urgently.

6. Ask: How can we trust your quality?
Answer: All material in RoHS, Reach standard, 100% test before delivery.

6. Ask: What's your price?
Answer: Our price varies by market and can be negotiated.

8. Ask: What's your after-sales service?
Answer: We provide technical support to help you improve your design or drawing and solve your and your customer's problems.
