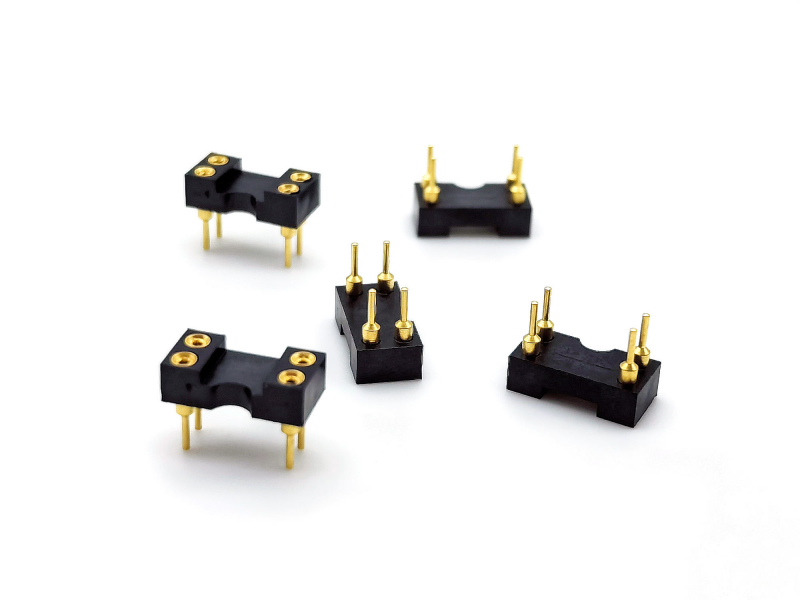

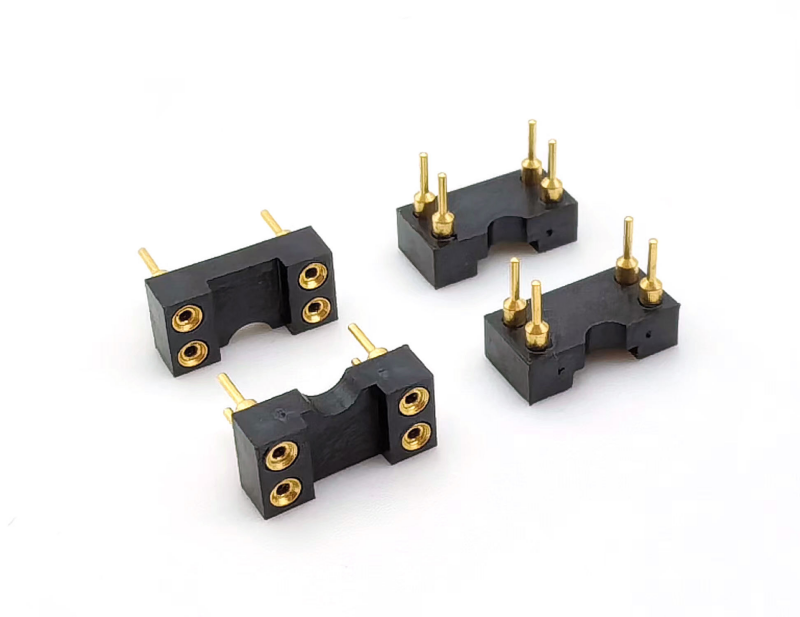

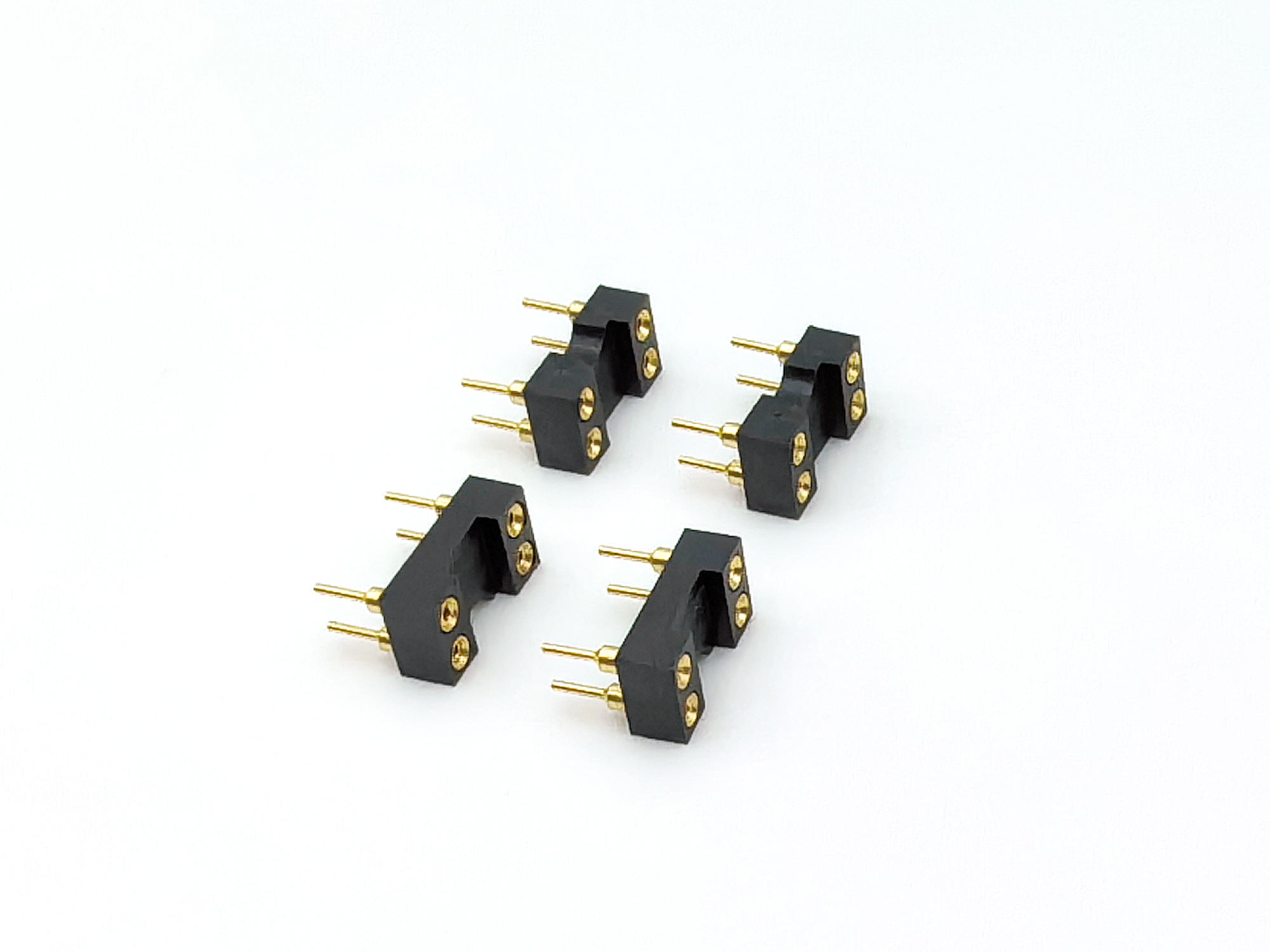

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell



Highlight

  • Machined round‑hole contacts, full‑gold plating, stable low‑resistance signal transmission
  • PPS high‑temperature insulator UL94V‑0, operating range ‑40℃ ~ +105℃, fit harsh industrial environment
  • Straight through‑hole DIP mounting, body height H3.0mm, compact PCB footprint
  • Tube packing, anti‑damage for SMT / assembly workshop feeding
  • 60V rated voltage, perfect for IC test socket, board‑to‑board interconnection


Product Description

Item Specification
Pitch 2.54 mm (0.100 inch)
Pin Count 4P, Single Row
Orientation Straight / DIP Through‑Hole
Insulator Height H3.0 mm
Contact Type Machined Round‑Hole Female Socket
Acceptable Mating Pin Dia 0.70‑0.90 mm
Mechanical Mating Life ≥500 Cycles
Insertion Force Per Pin Max 150 g
Withdrawal Force Per Pin Min 30 g
Packaging Tube


Material & Electrical Characteristics

Item Specification
Insulator Housing PPS, UL94V‑0
Contact Material Brass / Beryllium Copper Alloy
Contact Plating All Gold Plated
Rated Voltage 60 V
Rated Current 3 A per pin
Max Contact Resistance ≤20 mΩ
Min Insulation Resistance ≥1000 MΩ
Dielectric Withstanding Voltage 500 V AC / 1 min


Environment & Soldering Guide

Item Specification
Operating Temperature -40 ℃ ~ +105 ℃
Storage Temperature -45 ℃ ~ +110 ℃
Soldering Process Wave soldering for DIP through‑hole
Suggested Soldering Temp & Time 260 ℃, max 5 seconds
PCB Hole Dia Suggestion 1.0‑1.1 mm for through‑hole tail


2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell



Product Features

  1. Precision CNC machined round‑hole contact barrel, 360° multi‑point contact, anti‑loose under vibration condition
  2. All‑gold plating contact surface, anti‑oxidation, keep low contact resistance in long‑term service
  3. PPS glass‑filled housing, UL94V‑0 flame retardant, excellent thermal & chemical resistance
  4. Straight through‑hole DIP termination, strong soldering joint against repeated insertion force
  5. Standard 2.54mm(0.100") pitch, fully compatible with industry‑standard 2.54mm male pin headers
  6. Tube packaging avoids contact scratches, convenient for factory automatic assembly

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

Product Advantage

  1. Compared with common stamped female headers: machined round‑hole contacts offer uniform contact force, better anti‑vibration performance and longer service cycles, ideal for test sockets and high‑reliability equipment.
  2. All‑gold plating eliminates risk of contact oxidation, suitable for equipment requiring long‑term storage and intermittent operation.
  3. PPS insulator outperforms ordinary PBT / PA66 in high‑temperature resistance, with less deformation under wave‑soldering heat shock.
  4. H3.0mm low body height saves vertical space on PCB design.
  5. Tube‑packed unit protects gold‑plated contacts, reducing defective rate during incoming inspection and production handling.
  6. Standard 2.54mm footprint, drop‑in replacement for mainstream IC socket / female header part numbers.


Application

  • Industrial control boards, PLC peripheral modules
  • Instrument & meter, IC test fixture / burn‑in socket
  • Medical electronic auxiliary circuit boards
  • Communication gateway, sensor modules
  • Automotive electronic auxiliary controller
  • R&D prototype, embedded development board

2.54mm Pitch IC Socket Machined Female Header Straight H3.0mm 4P Hole All Gold 60V Rated PPS Shell

Customization Options

  1. Mating compatibility: Match with standard 2.54mm pitch male pin header, mating pin diameter within 0.70‑0.90 mm range.
  2. Working environment: Select this PPS machined‑contact version if your end‑product faces wide temperature swing, vibration or needs repeated plug‑unplug. Choose stamped‑contact version for cost‑sensitive consumer projects without frequent mating.
  3. Mounting type: This is DIP through‑hole version; if you need SMT surface‑mount, please contact us for alternate part number.
  4. Plating option: All‑gold for high‑reliability; selective gold‑over‑tin plating is available for cost‑optimized requests.
  5. Pin count: We support custom pin counts from 2P‑40P single‑row machined female headers.
