0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
Specifications
Current Rating :
0.5A/Pin Max
Brand Name :
XTKCONN
Model Number :
FPC**-T1S1-2030-A
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1000pcs
Price :
Negotiable price
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
3KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Height :
2.0mm
Housing :
LCP UL94V-0 Natural
Pitch :
0.5mm
No. Of Positions :
4-96pin
Contact Location/Type :

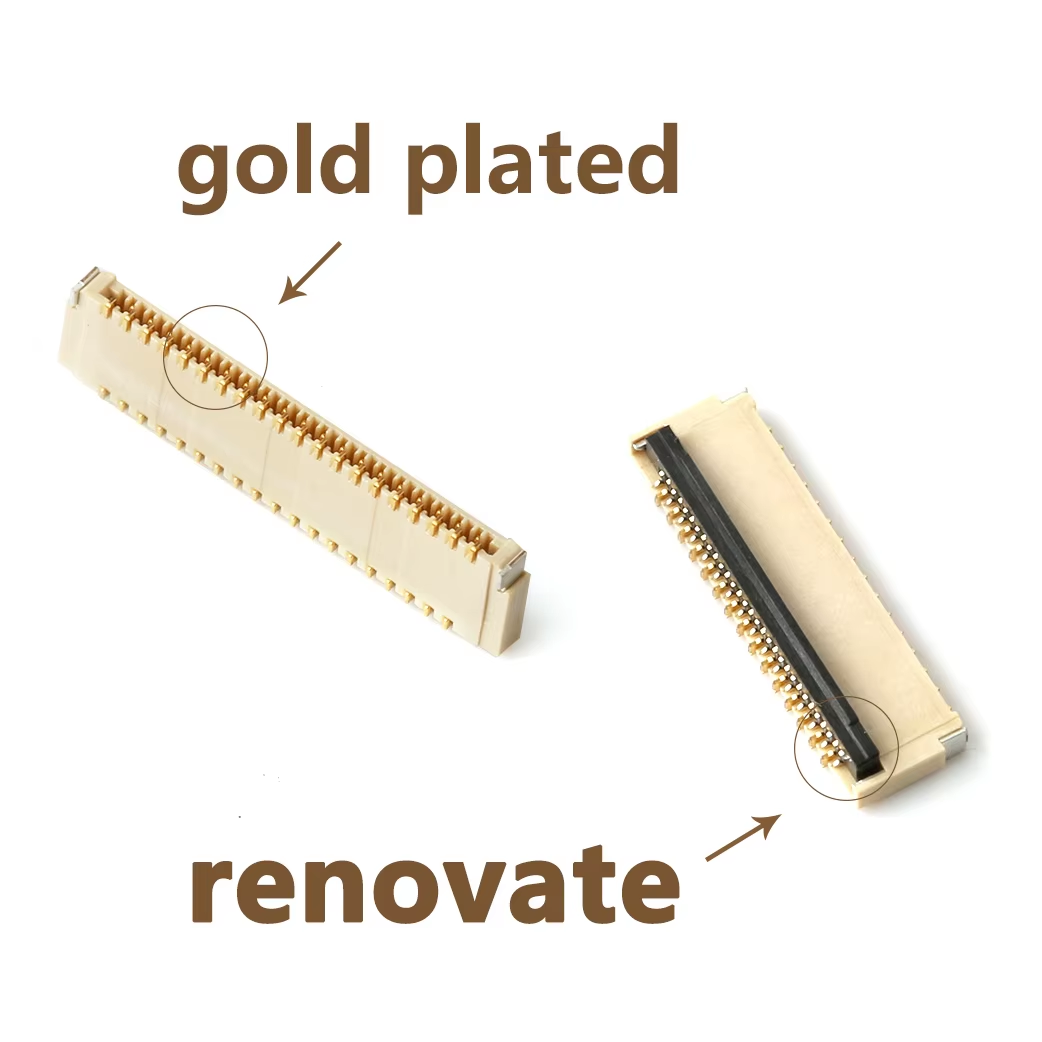

Dual contact,Back lock,Gold-plated
Description

Dual Contact 0.5mm FFC FPC Connector Height 2.0 right angle SMT 4~96Circuits


Description

This series is FPC/FFC Connectors designed for applications such as GPS, consumer electronics, and AV equipment for automobile use or electronics for industrial and/or medical use that require resistance to vibration. These products are 0.5m pitch,2.0mm height, bottom contact or dual-sided contact, right angle, SMT, ZIF connectors with front locking or back locking. Structures of bottom contact prevent FPCs/FFCs from becoming disjointed or inserted aslant. Structures of bottom contact prevent poor contact. We also offer 1mm pitch type.

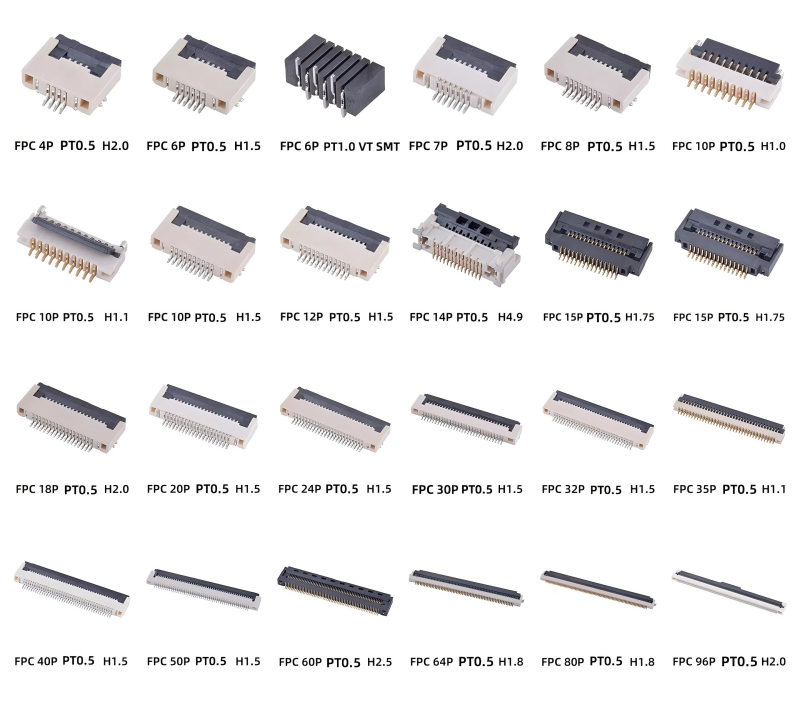

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

Specifications

Pitch 0.5mm
Height 2.0mm
Mounting Type SMT/ZIF
No. Of Positions 6-96pinpin
Contact Location/Type Dual contact, Back lock, Gold-plated PN:FPC**-T1S1-2030-A
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

Primary Competitive Advantages

Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples are available
Prompt delivery
Green product
Strong research and development team
Experienced staff
ISO9001,ROHS

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits


FAQ

(A) How could I get a sample?
A: You could send us the specification; we will make a payment link, and you will get 10 PCS for free.

(B) How about the lead time?
A: For samples, usually 5~7 days; for large production, usually 10~15days

(C) Could you make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

(D) Could you make your products in our color?
A: Yes, the color of products can be customized if you can meet our MOQ.

(E) What certificate do you have?
A: Our products have certifications such as ISO9001, IATF /TS16949 system certification, and have passed UL, CE, ROHS, REACH, and other certifications

(F) How about your factory capacity?
A: Our factory has a capacity of 3 to 5 million per year.

(G) Do you have a product price list?
A: Our pricing varies depending on specific product requirements. Each product is quoted individually.

(H) What kinds of products do you have?

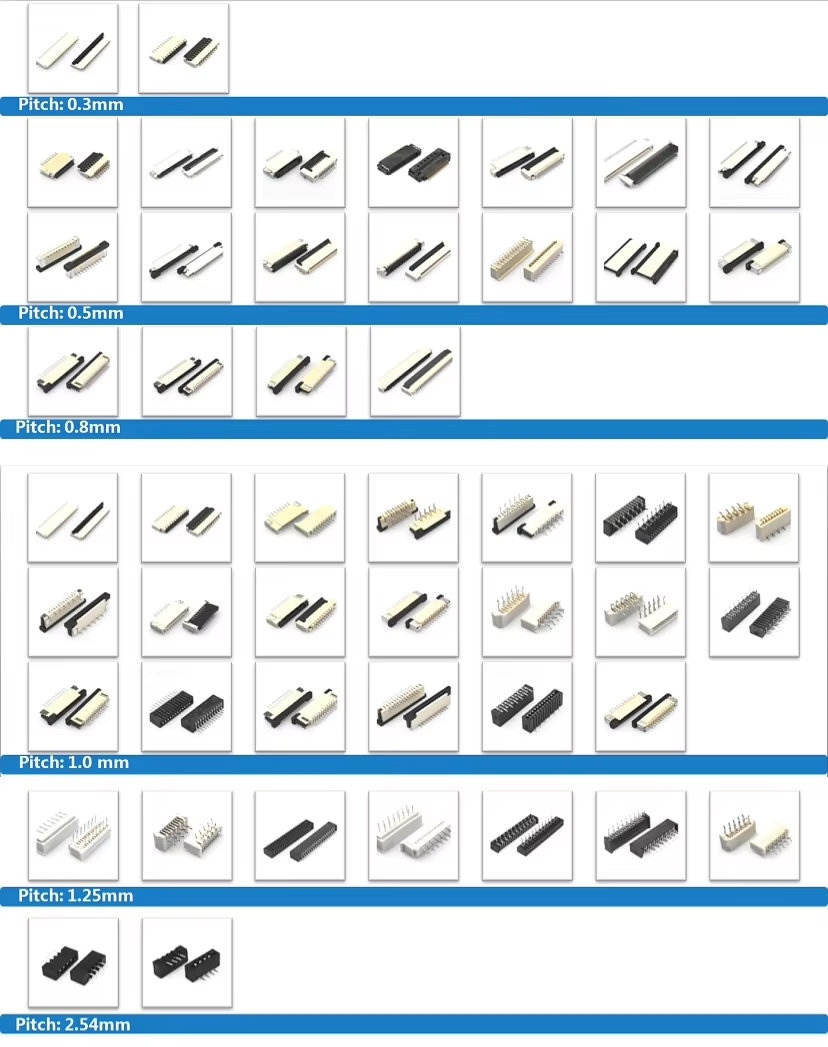

A: Our product line includes Pin Headers, Female Headers, Box Headers, FPC Connectors, Wafer Housings, High-Frequency High-Speed Connectors, High Current Connectors, and other Board-to-Board connectors.

(I) What is your product application area?
A: Our components could be used in many fields, such as Mobile Electronics, Communication, Household Appliances, Automobiles, Security, Industrial Control, Smart Home, Energy Storage, and other industries.
