SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS
Specifications
Withstanding Voltage :
250V AC,1min
Lead Time :
7-10 working Days
No. Of Positions :
4-50pin
Mounting Type :
Vertical / ZIF
Type :
Slide lock
Pitch :
0.5mm
Brand Name :
XTKCONN
Model Number :
FPC**-L1T1-0000-A
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Description

4-50pin 0.5mm FFC FPC connector Height 1.0mm Vertical type SMT Flat Cable Connector


Xietaikang's FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with a wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range, and cable style choices of any similar version in the market.


Description

This series is suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.


Specifications

Pitch 0.5mm
Height 1.0mm
Mounting Type Vertical / ZIF
Contact Location Single-sided contact
Type Slide lock
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min

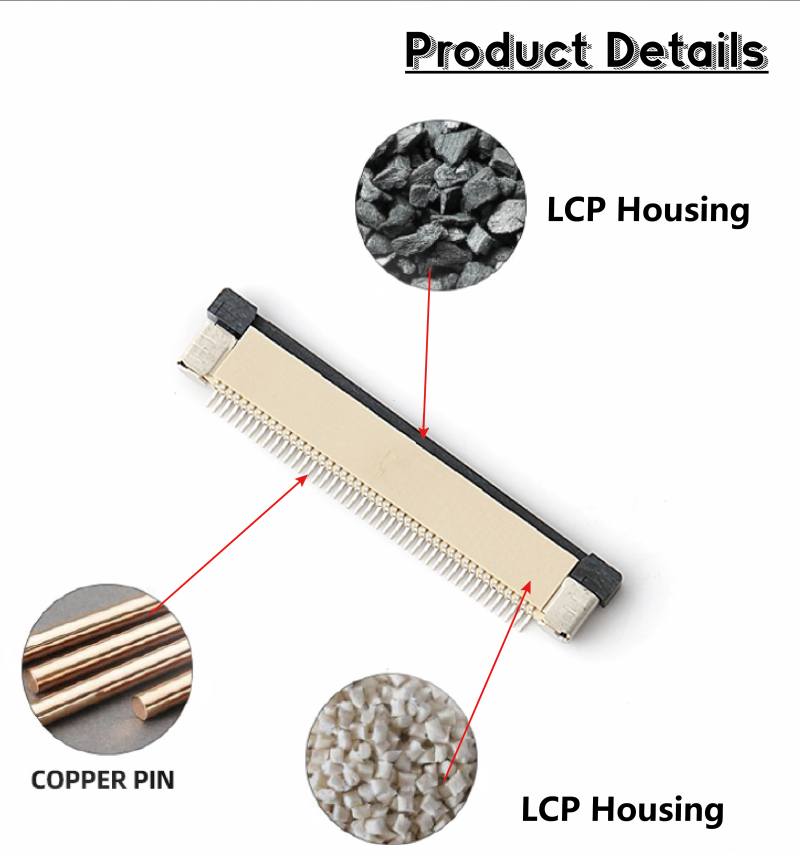

Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS

SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS

SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS


Typical Applications

Printers / Copiers,

Automotive Equipment,

Industrial Equipment,

Medical Equipment, etc.

SMT Flat Cable FFC FPC Connector Vertical Height 1.0mm 4-50 Pin SGS


FAQ


1: May I get free samples?

A: Sure, 10-20 pcs of free samples are available for normal models. We need to confirm height, operation force, and price before shipment.


2: When can I get the quotation?
A: We will send you quotation within 24 hours.

3: When can I get the samples?
A: It depends on the Express( DHL,TNT, EMS, etc.); normally, it will take 5-7 working days.

4: Can you accept small orders, like 1000 pcs, 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save you time and freight charges in the near future.

5: What's the lead time of a bulk order?
A: Normally, lead time is 10-14 days. We will inform you of the lead time before the order, and will confirm to you again after receiving payment.

6. What is the payment term?
A: For small orders, pls remit payment by PayPal. For big orders, pls remit payment by TT.

7. Can you open a mold for a terminal order or uncommon models?
A: OK, we need time to discuss in detail, such as the cost for opening a mold, and need to know the forecast, end product, and lifespan.

8. What's your advantage?
A: 1. We accept online orders, protect customers' payments, and promise delivery on time; also, you can dispute if you are not satisfied with the goods; 2. We provide 30 days return or refund if any quality issue; 3. Our sales 24hrs online; you can contact us anytime, even at 03:00 am.
