SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector
SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector
SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector
SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector
Specifications
Mounting Type :
SMT/ZIF
Voltage Rating :
30V AC/DC MAX
Brand Name :
XTKCONN
Model Number :
FPC**-T1S1-2023-A
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1000pcs
Price :
Negotiable price
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
range of Pin :
11-51pin
Pitch :
0.3mm
Height :
1.0mm
Current Rating :
0.2A AC/DC
Description

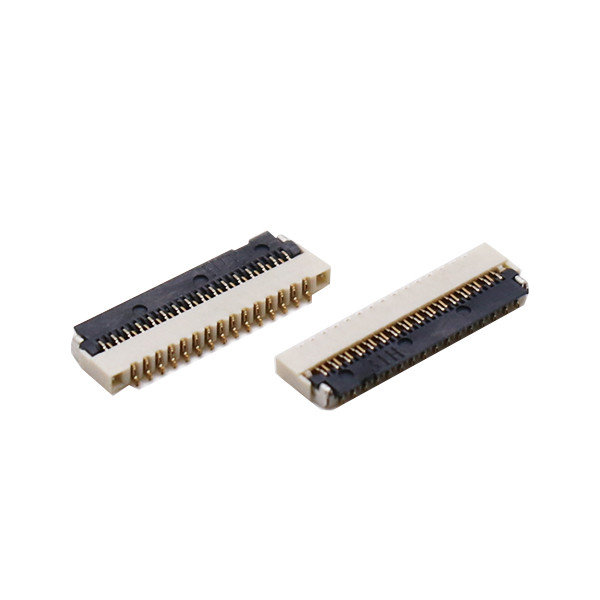

0.3mm FFC FPC connector H1.0 right angle SMT front flip bottom contact



FPC/FFC connectors provided by Xietaikang are narrow-pitch and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission, and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF, etc. are provided to achieve customers' requests.


Specifications

Pitch 0.3mm
Height 1.0mm
Mounting Type SMT/ZIF
Positions 9-71pin
Contact Location/Type Dual contact, Back lock PN:FPC**-T1S1-2023-B
Bottom contact, Front lock PN:FPC**-T1S1-2023-A
Current Rating 0.2A AC/DC
Voltage Rating 30V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Phosphor bronze
Plating Gold-plating
Operation Temperature -55℃ to +85℃
Lead Time 7-10 working Days

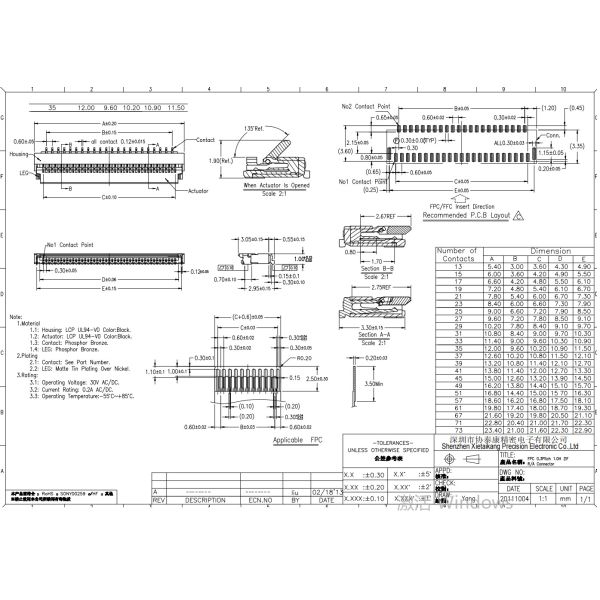

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector


Product Application

1, Consumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Field

5, Military Industry

6, Smart bracelet

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector


SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector


Our Service
* 24-hour online service & Quick Quotes/Delivery.
* 100% QC quality inspection before delivery.
* 20 years of experience in the connector area.
* One-stop service.
* Timely delivery.
* Samples for free.


FAQ

1. Where is your factory?
We are located in Shenzhen, Guangdong.

2. How about your quality control?
We 100% check all products before shipment.

3. Do you provide a sample?
Of course, free sample with freight collect.

4. What is the lead time?
It depends on the quality; generally within 7-15 days after payment for the order.

5. What is the MOQ?
In general, 100 pcs, but small orders can be accepted.

6. Quality problems?
If there is any quality problem or question, we could offer technical support or return service.
