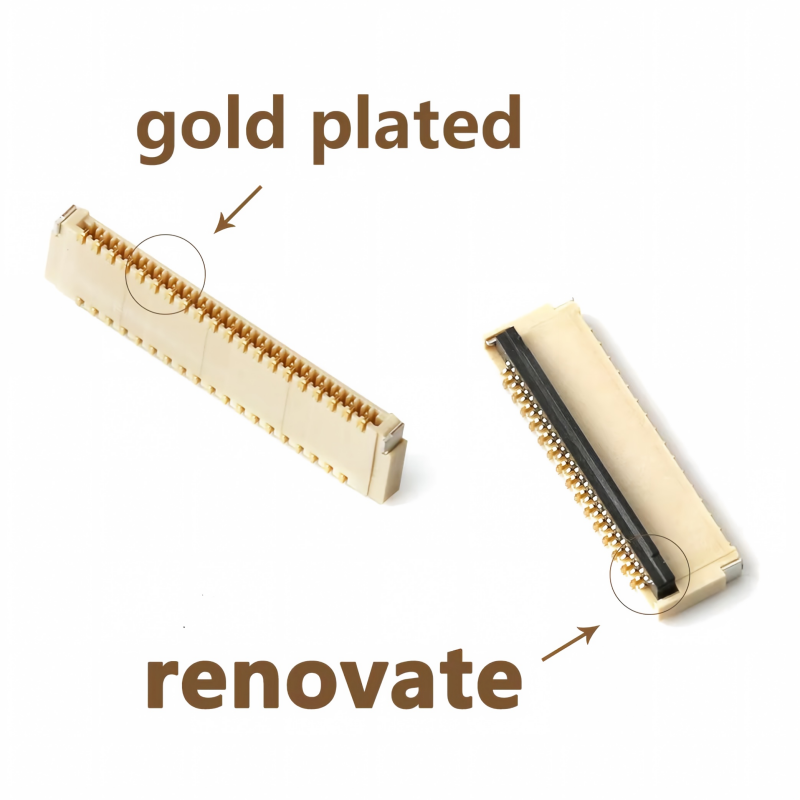

Dual/Bottom contact 0.5mm FPC Height 1.2mm with lock FFC/FPC connector precision connector

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator, and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

Description

This Series are FPC connector for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.2mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

What is the FPC connector?

The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light, glass, and plastic replaces the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector; their function and the circuit FPC FFC flat connection connector are the same.

Advantage of the product

No cable, simple installation and disassembly, easy to replace, fast intercalation, smooth separation, good high-frequency characteristics, suitable for space applications. Fifth is the development of assembly technology from plug-in mounting technology (THT) to surface mount (SMT) technology, and then to the development of micro assembly (MPT) technology.

Our Service

1. The series of product specifications is complete, but also tailor-made.
2. Import equipment and a high degree of automation ensure timely delivery. Usually 7-10 days.
3. Strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL certification.
4. Free sample: 15-20 sets, cost-effective; the same quality unit price is very competitive
5. The quality is safe and reliable, and the price is competitive.
