H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable
H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable
H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable
H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable
Specifications
Operation Temperature :
-40℃ to +85℃
Withstanding Voltage :
250V AC,1min
Height :
3.0mm
No. Of position :
17-19-22-24-27pin
Contact Location :
Single-sided contact
Pitch :
1.0mm
Brand Name :
XTKCONN
Model Number :
FPC**-T2T1-0030-C
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1000pcs
Price :
Negotiable price
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
4KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Description

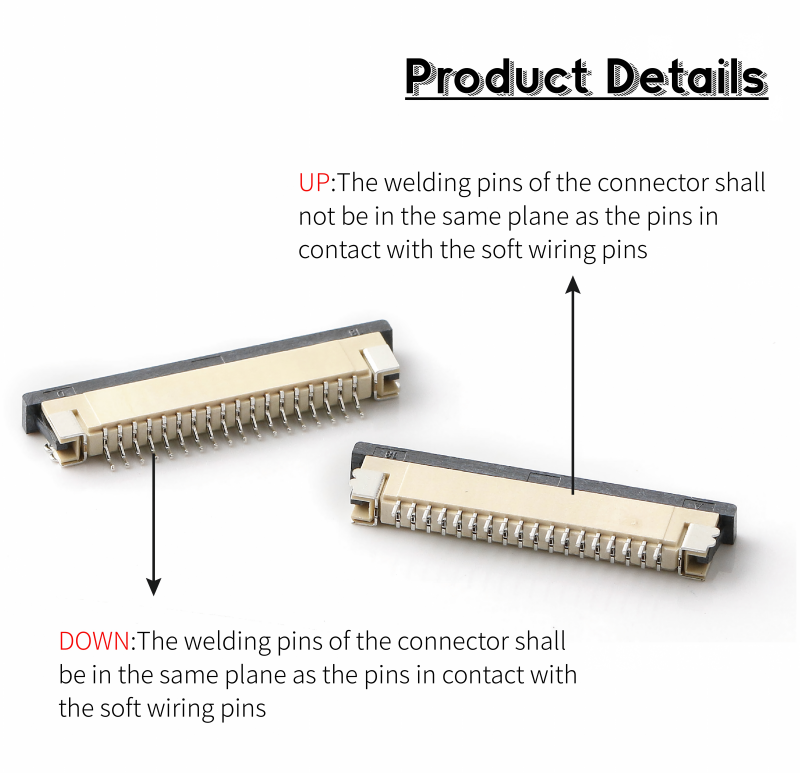

Slider Series 1.0mm FFC FPC Connector H=3.0 for FFC Flat Cable


Description

Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with a wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range, and cable style choices of any similar version in the market.

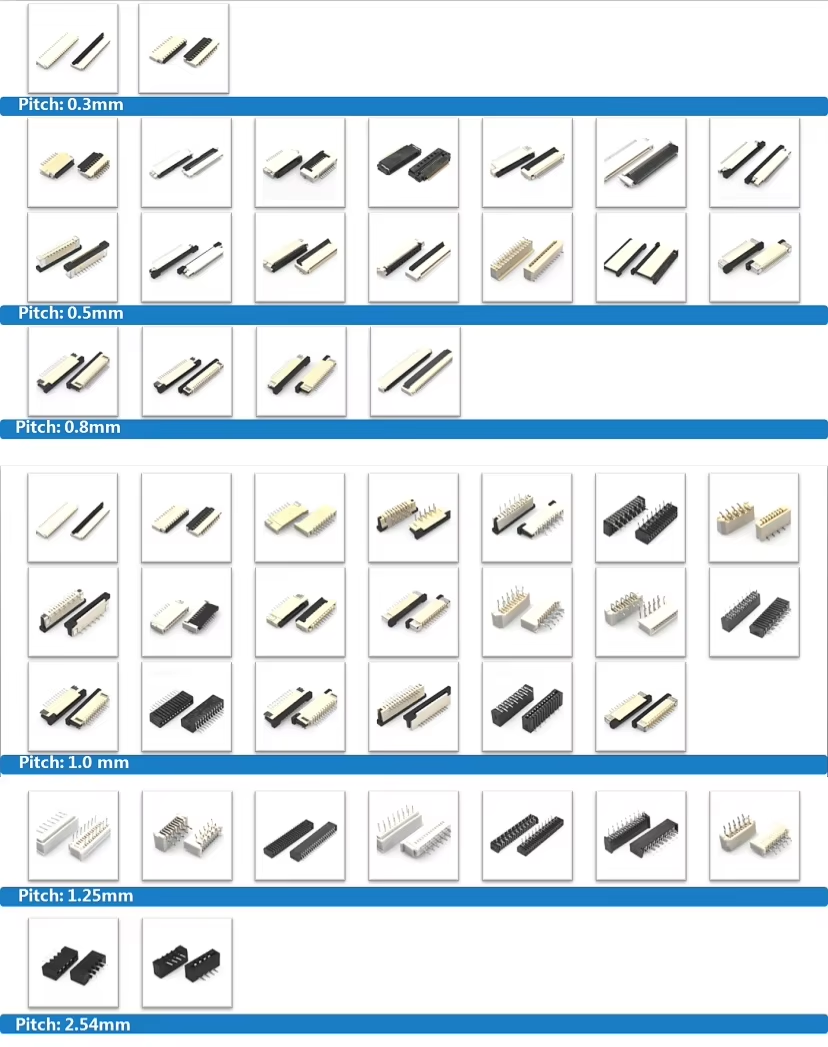

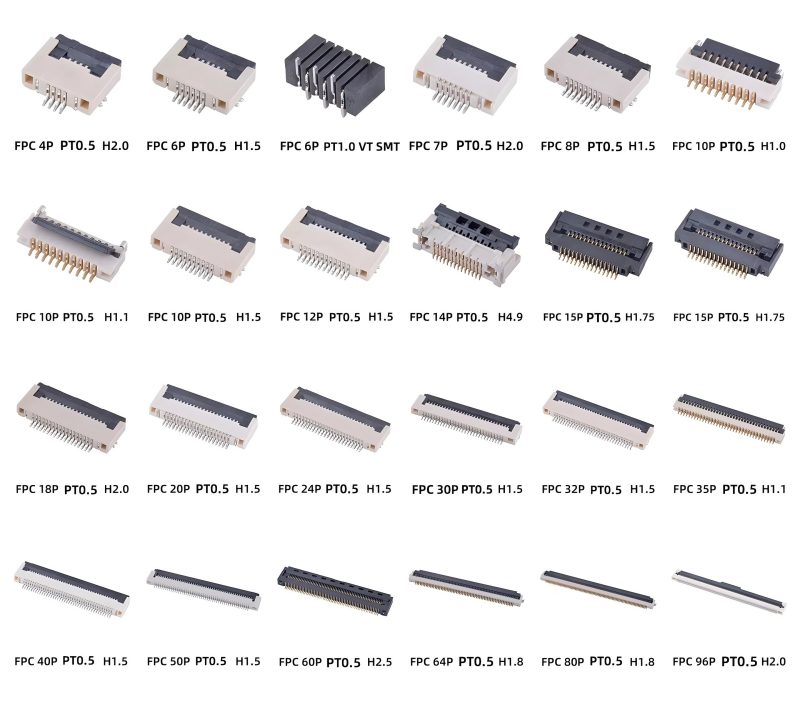

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator, and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.


1.0mm pitch type connectors modified from 0.5mm pitch ones. (Only even-numbered pins are inserted.)Wide variations in stacking height and pin count are provided. For details, please refer to the 0.5mm-pitch type page of each Series


Specifications

Pitch 1.0mm
Height 3.0mm
No. Of position 17-19-22-24-27pin
Mounting Type SMT/ZIF
Contact Location Single-sided contact
Type Slide lock
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min

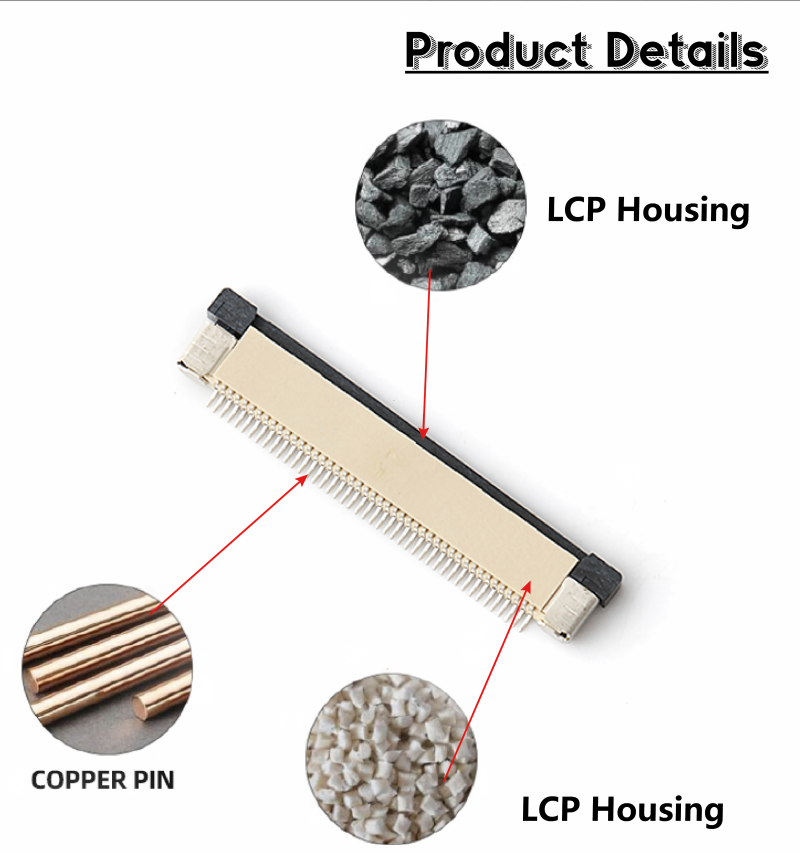

Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating / Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable

H3.0mm Slider Series FFC FPC Connector 24 Pin 27 Pin For FFC Flat Cable


FAQ

1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normal models. We need to confirm height, operation force, and price before shipment.

2: When can I get the quotation?
A: We will send you a quotation within 24 hours.

3: When can I get the samples?
A: It depends on the Express (DHL, TNT, EMS, etc.); normally, it will take 5-7 working days.

4: Can you accept small orders, like 1000 pcs, 2000 pcs ?
A: Sure, but we suggest you buy more, because it really can save you time and freight charges in the near future.

5: What's the lead time of a bulk order?
A: Normally, lead time is 10-14 days. We will inform you of the lead time before the order, and will confirm to you again after receiving payment.

6. What is the payment term?
For small orders, pls remit payment by PayPal. For big orders, pls remit payment by TT.

7. Can you open a mold for terminal orders or uncommon models?
OK, we need time to discuss in detail, such as the cost for opening the mold, and need to know the forecast, end product, and lifespan.

8. What's your advantage?
1. We accept online orders, protect customers' payments, and promise delivery on time; also, you can dispute if you are not satisfied with the goods;
2. We provide 30 days return or refund if any quality issue;
3. Our sales 24hrs online; you can contact us anytime, even at 03:00 am.
