Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug
Specifications
Brand Name :
XTK
Model Number :
USB TYPE C
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
1KK pcs
Delivery Time :
5-7 days
Packaging Details :
Hermetic bag,boxes in carton
Application :
PCB,Mobile, computer,vehicle,GPS,IPTV,TV
Connector type :
Usb Type C
Material :
Brass Copper
Warranty :
12Month
Mating force :
5 ~ 20N
Gender :
Connector Smd Pcb Usb
Description

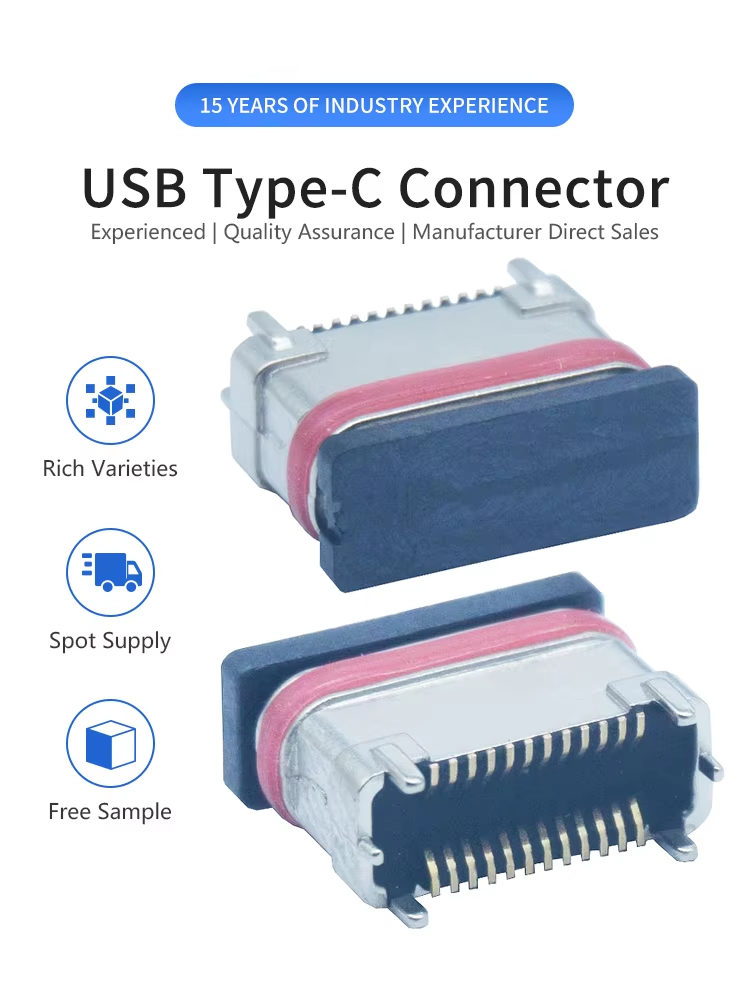

Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug

Product Description

Connector Type
USB C connector
Operating temperature
-20°c to + 85°c
Type
Solder Type
Contact
Copper with golden plated
Gender of Connector
24 Pin solder wilding
Shielding
stainless steel
Contact Resistance
40mΩ Max
Voltage Rating
30V DC
Insulation Resistance
100MΩ MIN
Insertion Force
5-20N
Rated current
3A
Durability
10000 cycles

Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug

Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port PlugWaterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port PlugWaterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug

Waterproof SMD Vertical Zinc Powder Metallurgy 24Pins Female Type-c Connector USB Charging Port Plug

Our Advantage

1 > 15 years of experience
More than 10 years of experience in MALE / Female connector developing, producing, and marketing; our products are sold to more than 800 customers in 63 countries; what’s more, has provided over 1000 models of Female Connectors for our customers.


2 > Quality Guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our Female Connectors.

3 > Responded within 24 hours
All inquiries will be replied to within 24 hours of the working day.

Our Service

1. Our aim is to make sourcing connectors easy for you.

2. We'll reply to your inquiry within 24 hours, Online Inquiry is Welcome

3. We provide OEM, ODM service, and Any of the special connectors requested, We are going to make a new mold for you but the mold cost half for each.

4. 20pcs free samples, For repeat order customers, We'll provide more than 20pcs samples for prototype projects if necessary.

5. Our business is not just about connector supply, it's about delivering promises.
