Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector
Specifications
Brand Name :
XTK
Model Number :
USB TYPE C
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
1KK pcs
Delivery Time :
5-7 days
Packaging Details :
Hermetic bag,boxes in carton
Application :
PCB,Mobile, computer,vehicle,GPS,IPTV,TV
Connector type :
Type C Female Connector 6pin
CONTACT RESISTANCE :
30M Ohm Max
INSULATION RESISTANCE :
100M Ohm/Min
DIELECTRIC WITHSTAND VOLTAGE :
100V AC for 1 Minute
Storage Temperature :
-30℃~+85℃
Description

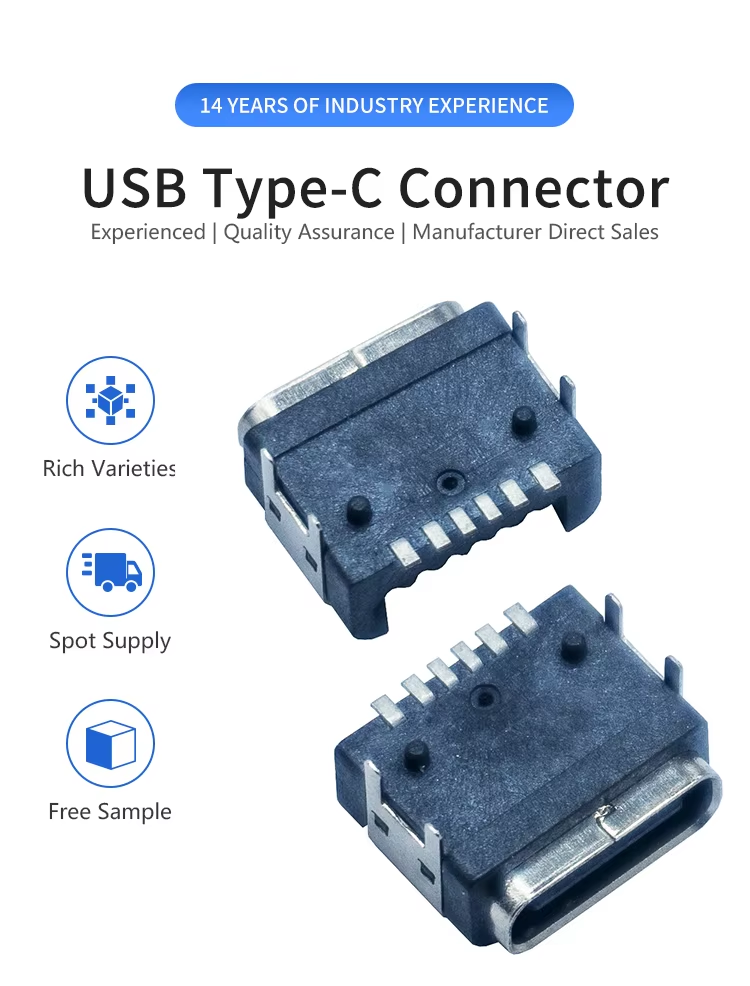

Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector

Description

Brand: XTK Series: USB Type-C Connector
Name: USB Type-C Connector Gender: Female
Current Rating: 0.5mA Rated Voltage: 5V RMS
Rating
Operating Temperature: -40ºC~+85ºC
Storage Temperature: -40ºC~+85ºC(500 Hours)
Relative Humidity: 95%Maxmum (Non-Condensing)
Test Condition
Temperature Range: 20ºC ±5ºC
Humidity Range: 40%~85%

High solderability and flatness
Immerse the tin feet in a tin oven at ±245°C for 5.5 seconds The surface area of tin sticking is not less than 97%, and reflowSoldering temperature 260±5°C, 20-40 seconds.

Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector

Good card contact performance
Use the force of 10N to insert and dial without interruption.Contact is good after 5000 times.

Waterproof Panel Mount PCB 6 Pin Female USB Type C ConnectorWaterproof Panel Mount PCB 6 Pin Female USB Type C Connector

Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector

Application

Waterproof Panel Mount PCB 6 Pin Female USB Type C Connector

Our Advantage
1 > 15 years of experience
More than 10 years of experience in MALE / Female connector developing, producing, and marketing; our products are sold to more than 800 customers in 63 countries; what’s more, has provided over 1000 models of Female Connectors for our customers.


2 > Quality Guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our Female Connectors.

3 > Responded within 24 hours
All inquiries will be replied to within 24 hours of the working day.

Our Service

1. Our aim is to make sourcing connectors easy for you.

2. We'll reply to your inquiry within 24 hours, Online Inquiry is Welcome

3. We provide OEM, ODM service, and Any of the special connectors requested, We are going to make a new mold for you but the mold cost half for each.

4. 20pcs free samples, For repeat order customers, We'll provide more than 20pcs samples for prototype projects if necessary.

5. Our business is not just about connector supply, it's about delivering promises.
