High Granulation Rate ≥95% Disc Granulator with Strong Base Design No Need Anchor Bolt for Smooth Operation
High Granulation Rate ≥95% Disc Granulator with Strong Base Design No Need Anchor Bolt for Smooth Operation
Specifications
Brand Name :
Shenghong
Model Number :
SHQ
Certification :
BV, SGS, ISO
Place of Origin :
Zhengzhou, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
80 sets per month
Delivery Time :
15 days
Packaging Details :
Customer demand, usually in container
Pellet Humidity :
20-25%
Keywords :
Organic Fertilizer Equipment
Suit For :
Organic and Compound Fertilizer Material
Condition :
New
Speed :
11.5r/min
Function :
Making Fertilizer Particle
Size :
1500*1200*2000mm
Usage :
Granulator Machine
Specification :
1400*750*1170
Granulating Rate :
≥95%
Description
Weight Thickening Strong Base Design No Need To Anchor Bolt Fixed Smooth Operation Disc Granulator
Disk Compound Fertilizer Granulator Suitable For Chemical Powder

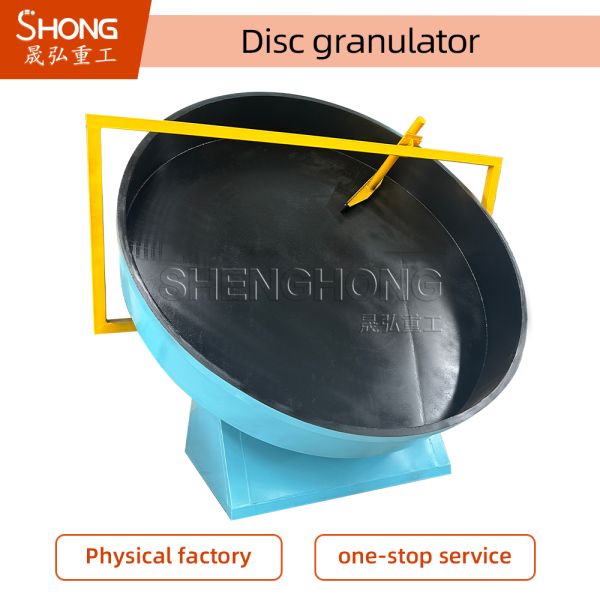

The disc compound fertilizer granulator (also known as pan granulator) adopts a whole circular arc structure, achieving a granulation rate of over 93%. The granulating tray features three discharge ports for convenient intermittent production and operation, significantly reducing labor intensity and improving efficiency.

Product Features
  • High Efficiency: Circular arc structure ensures granulation rate exceeds 93%
  • Long Service Life: Durable construction with extended operational lifespan
  • Reinforced Design: Bottom strengthened with multiple radiation steel plates for durability and deformation resistance
  • Corrosion Resistance: Granulator plate lined with high-strength fiberglass for anti-corrosion protection
  • Wide Applicability: Suitable for granulation of various raw materials including compound fertilizer, medicine, chemical industry, feed, coal, and metallurgy
  • Reliable Operation: Low power consumption, stable operation, no waste discharge, and easy maintenance
High Granulation Rate ≥95% Disc Granulator with Strong Base Design No Need Anchor Bolt for Smooth Operation
Applications

Disc compound fertilizer granulator is designed for uniform granulation with high granulating rate, smooth operation, durable equipment construction, and long service life. It serves as an ideal granulating equipment solution for various industrial applications.

Technical Specifications
Model Diameter Edge Height (mm) Rotation Speed (r/min) Motor Power (kw) Capacity (t/h) Dimensions (mm)
SHQ-80 800 200 25 1.5 0.1-0.2 900×1100×1000
SHQ-10 1000 250 21 2.2 0.3-0.5 1400×1200×1400
SHQ-15 1500 250 17 3 0.5-0.8 1750×1620×2000
SHQ-18 1800 300 17 5.5 0.6-1 2000×1980×2100
SHQ-20 2000 300 19 5.5 0.8-1.2 2200×2300×2200
SHQ-25 2500 350 13.6 7.5 1-1.5 2200×2800×2700
SHQ-28 2800 400 13.6 11 1.8-3 3100×2350×3060
SHQ-30 3000 450 11 11 3-4.5 3400×2500×3165
SHQ-32 3200 450 10 15 3.5-5 3500×2600×3350
SHQ-36 3600 450 10 22 5-7 4000×2990×3460
SHQ-45 4500 600 12 30 13-18 5030×3750×4300
High Granulation Rate ≥95% Disc Granulator with Strong Base Design No Need Anchor Bolt for Smooth Operation
