4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
Specifications
Brand Name :
Shenghong
Model Number :
SHZ series
Certification :
CE, ISO9001
Place of Origin :
Zhengzhou, Henan Province China
MOQ :
1 Piece
Price :
can be negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
200 Sets Per Month
Delivery Time :
10-15 working days
Packaging Details :
Container or Plywood Box
Raw Material :
Composting/Organic Matter
Granules Shapes :
Ball Shape / Cylinder Shape
Capacity :
4-5 Tons Per Hour
Dimension(L*W*H) :
8300*3500*3300mm(Customized)
Volatge :
380V(Customized)
Power :
42-120kw
Warranty :
12 Months
Description

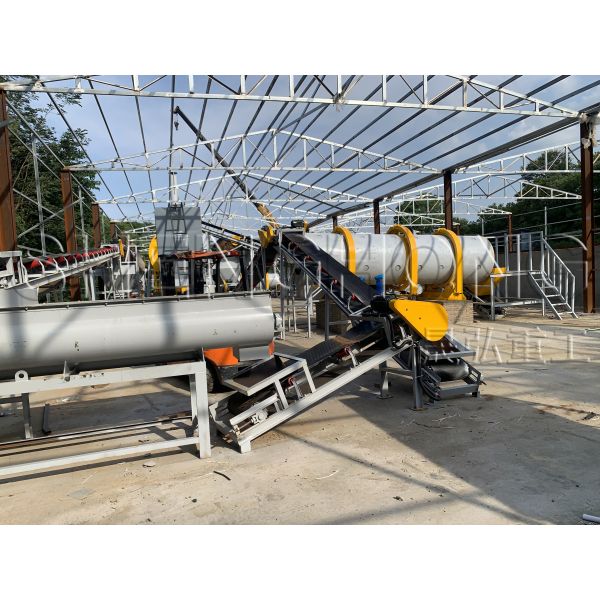

Organic and Compound Fertilizer Combination Production Line With 4-5t/h
Production Line Introduction

This production line efficiently processes fermented organic substances into bio-organic fertilizer via a one-step molding process. By recycling animal manure and agricultural waste, it turns environmental challenges into economic opportunities. The finished fertilizer contains diverse organic acids, peptides, and essential nutrients (N, P, K), offering sustained crop nutrition while improving soil structure, increasing microbial populations, and enhancing soil health and vitality.

4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
Working Principle

Containing crystalline water, dry powder materials are fed into a hopper where a rotating conical screw conveys, pre-compresses, and evenly distributes them between two rollers. The material is extruded into thin sheets, transferred to a granulator for preliminary cutting, and formed into granules.

4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
Main Equipment
No Equipment Name Equipment Description
1 Materials Crushing Crushing materials into small pieces
2 Mixing The mixed material should be mixed completely, then get into granulator
3 Granulation The special organic fertilizer granulator can make the materials into granules
4 Drying After granulating, the moisture of fertilizer is bit high, it is not suitable for long-term storage, so we need drying process
5 Cooling The cooling machine is used to cool the hot fertilizer
6 Screening There are some non-uniform particles after sieving, the smaller particles are sending to mixer, the bigger particles are sending to crusher
7 Coating The particle surface is not uniform, sleek case, we need to coat the surface of fertilizer granules
8 Packing After package, the fertilizer can be sold
4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
Applications
  • Pharmaceutical: Medicinal granules, TCM granules, capsules/particles, veterinary granules, dialysis powder
  • Food Industry: Flavoring granules, snack pellets, health-food granules, instant food particles, condiments, dairy & health products
  • Chemical & General: Cosmetics, pesticides, industrial chemicals, animal feed, detergents
  • Electrical/Mechanical: Ferrite blocks, talc, ceramic materials, oil-impregnated bearings, electromagnetic materials, metallurgical granules
  • Plastics: Phenolic, melamine, epoxy resin granules
  • Industrial Catalysts & Particles: Fertilizers, pigments, milled powders, washing chemicals, and related granular products
4-5t/h Organic and Compound Fertilizer Production Line with One-Step Molding Process for Recycling Organic Waste
