3-5T/H Capacity Poultry Manure Waste Bio Organic Fertilizer Production Line with Ball Shape Granules and One-Step Molding Technology
3-5T/H Capacity Poultry Manure Waste Bio Organic Fertilizer Production Line with Ball Shape Granules and One-Step Molding Technology
Specifications
Brand Name :
Shenghong
Model Number :
SHZ
Certification :
BV, SGS, ISO
Place of Origin :
Zhegzhou, Henan Province China
MOQ :
1 Piece
Price :
can be negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
200 Sets Per Month
Delivery Time :
10-15 working days Ex-work
Packaging Details :
Container or Plywood Box
Raw Material :
Organic Materials
Granules Shapes :
Ball Shape
Capacity :
3-5 T/H
Dimension(L*W*H) :
Depends
Volatge :
380V(Customized)
Power :
37-120kw
Usage :
Making Fertilizer Granules
Application :
Complete Organic Fertilizer Production
Guarantee :
12 months
Description
Poultry Manure Waste Bio Organic Fertilizer Production Line of 3-5T/H
Production Line Overview

3-5t/H Capacity Poultry Manure Waste Bio Organic Fertilizer Production Line

The organic fertilizer production line is designed to process various fermented organic substances into high-quality bio-organic fertilizer. Utilizing advanced one-step molding technology, this system transforms animal manure and agricultural waste into valuable fertilizer products. This process not only generates economic benefits but also contributes significantly to environmental protection initiatives.

After proper safety disposal and fermentation, these materials are converted into organic fertilizer containing multiple organic acids, peptides, and essential nutrients including nitrogen, phosphorus, and potassium. This comprehensive nutritional profile supports crop growth while improving soil structure, promoting microbial activity, and enhancing soil physical and chemical properties.

Raw Materials
No. Category Raw Materials List
1 Agricultural waste straw, dregs of beans, cotton dregs, rice bran, biogas waste, mushroom waste, etc.
2 Animal waste slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc.
3 Industrial waste wine lees waste, vinegar waste, manioc waste, sugar waste, etc.
4 Home waste food waste, bones, the roots and leaves of vegetables, etc.
5 Mineral humic acid, bentonite, dolomite, etc.
6 Sludge river sludge, pond sludge, sewage sludge, city sludge, etc.

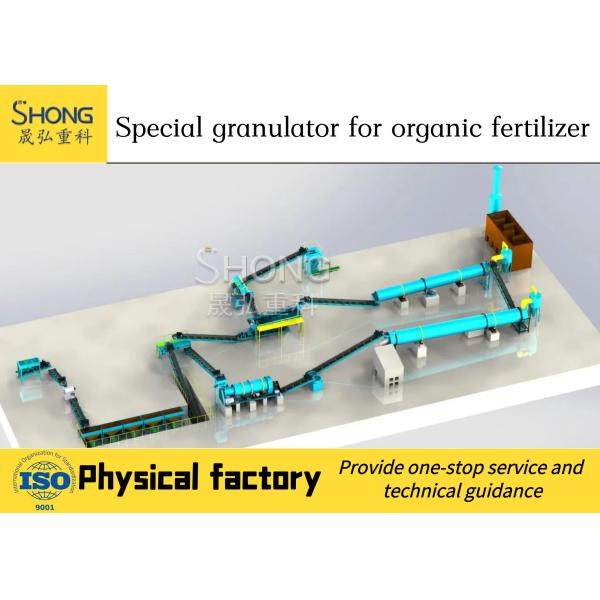

Production Process

The organic fertilizer production line typically includes eight key processes: fermenting, grinding, mixing, granulating, drying, cooling, screening, and packaging. While fermenting, crushing, mixing, granulating, and screening are essential processes, others may be optional depending on production capacity requirements.

Production Equipment
No. Processes Machines Function of Machines
1 Fermenting process Fermentation turner Mix and blend compost during fermentation evenly
2 Grinding process Hopper for forklift Feed compost into grinder evenly
Grinder Grind compost to powder
3 Mixing process Mixer Mix compost powder evenly, add water, beneficial bacteria, or other micro-elements if necessary
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags
3-5T/H Capacity Poultry Manure Waste Bio Organic Fertilizer Production Line with Ball Shape Granules and One-Step Molding Technology
Production Benefits

After proper safety disposal and fermentation, raw materials are transformed into bio-organic fertilizers containing various organic acids, peptides, and rich nutrients including nitrogen, phosphorus, and potassium. These organic fertilizers provide comprehensive nutrition for plants and crops while offering long-lasting fertilizer effects. The process enhances soil organic matter content, promotes microbial breeding, and improves soil chemical and physical properties along with biological activity.

3-5T/H Capacity Poultry Manure Waste Bio Organic Fertilizer Production Line with Ball Shape Granules and One-Step Molding Technology
