Pan Type Granulator with Adjustable Angle 35-55 Degree and High Granulation Rate 93% for Organic Fertilizer
Pan Type Granulator with Adjustable Angle 35-55 Degree and High Granulation Rate 93% for Organic Fertilizer
Specifications
Granulation Rate :
93%
Brand Name :
Shenghong
Pan Angle :
35-55 degree adjustable
Model Number :
SHQ
Supply Ability :
80 sets per month
Delivery Time :
15 days
Packaging Details :
Customer demand, usually in container
Capacity :
0.3-6 ton/hour
Certification :
BV, SGS, ISO
MOQ :
1 set
Payment Terms :
L/C,T/T,D/A,Western Union
Voltage :
380V
Material :
Carbon steel
Machine Type :
Disc granulation machine
Warranty :
12 months
Price :
Negotiable
Granules Shape :
Ball shape
Place of Origin :
Zhengzhou, China
Description
Pan Type Granulator Disc Granulation Machine Adjustable Angle 35-55 Degree for Organic Fertilizer
Product Overview

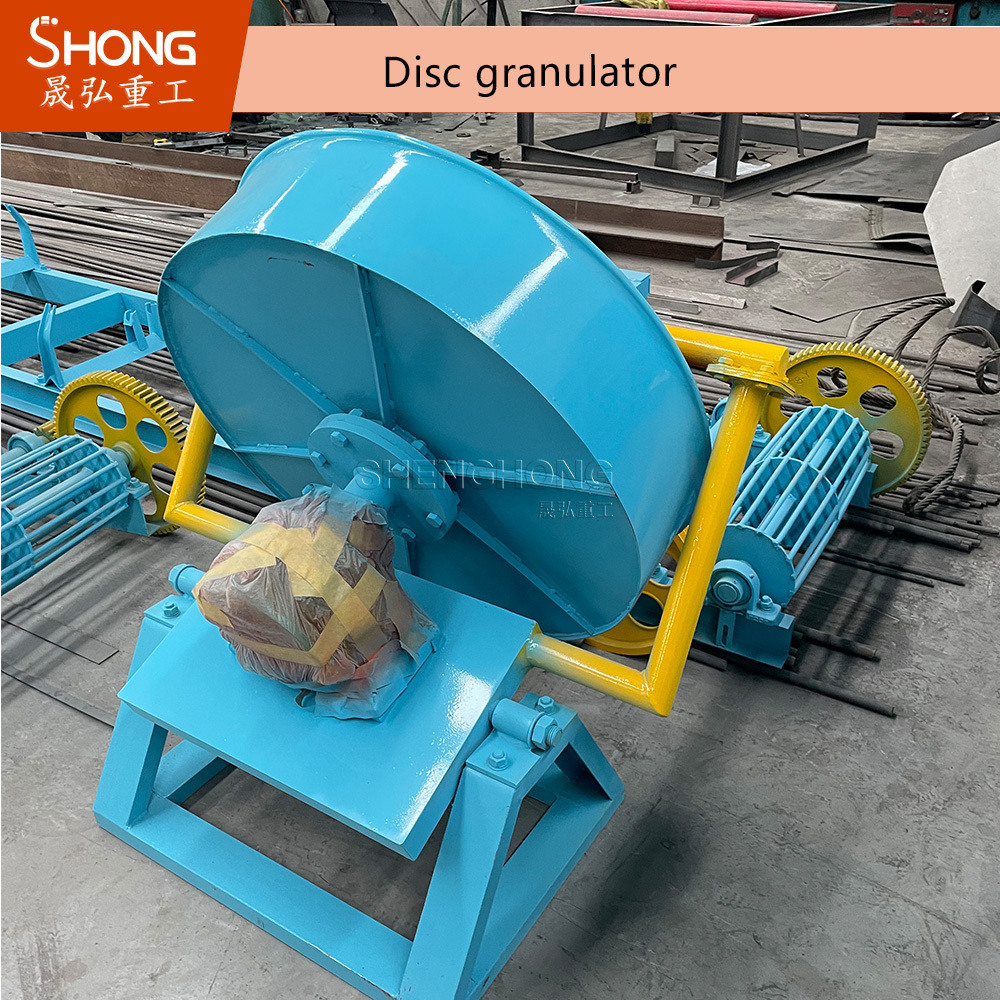

The SHQ series pan type granulator is a disc granulation machine that converts fertilizer powder into uniform ball-shaped granules through a rotating disc pan. Widely used in organic fertilizer and compound fertilizer granulation lines, it features an adjustable pan angle of 35-55 degrees to suit different material characteristics and achieve a high granulation rate of up to 93%.

Key Features
  • Adjustable pan angle 35-55 degree: Optimize granulation effect for different raw materials
  • High granulation rate 93%: Uniform ball-shaped granules, reduce returns and dust
  • Simple structure: Easy operation and maintenance, low failure rate
  • Carbon steel construction: Durable body with anti-corrosion lining for long service life
  • Flexible capacity 0.3-6 t/h: Suitable for small and medium organic fertilizer plants
  • No drying required for most materials: Wet type granulation at room temperature
Working Principle

The disc pan granulator drives the pan to rotate at a certain angle. Powdered material and a small amount of binder are fed onto the disc, where they roll and agglomerate into granules under centrifugal force and gravity. The granule size can be controlled by adjusting the pan angle, rotation speed, and material feed rate.

Technical Specifications
Model Pan Diameter Capacity Granulation Rate
SHQ-1.0 1.0 m 0.3-1 t/h 93%
SHQ-2.0 2.0 m 1-2 t/h 93%
SHQ-3.0 3.0 m 2-4 t/h 93%
SHQ-4.0 4.0 m 4-6 t/h 93%
Applications
  • Organic fertilizer granulation
  • Compound fertilizer production
  • NPK fertilizer manufacturing
  • Bio-organic fertilizer processing
  • Other powdery material granulation

Ideal for the disc pan granulation line in organic fertilizer production plants.

After-Sales Service
12 months warranty, installation guidance under engineer, spare parts supply, and lifetime technical support.
