Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Specifications
Brand Name :
Shenghong
Model Number :
SHZ
Certification :
BV ISO SGS
Place of Origin :
Zhengzhou China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
80 sets per month
Delivery Time :
15 days
Packaging Details :
Package or Container
Application :
Organic fertilizer granulator machine
Usage :
Making fertilizer granules
Granules shapes :
Ball shape
Brand name :
shenghong
Warranty :
12 months
Material :
Carbon steel or stainless steel
Raw material moisture :
20%-40%
Votlage :
380V
Description

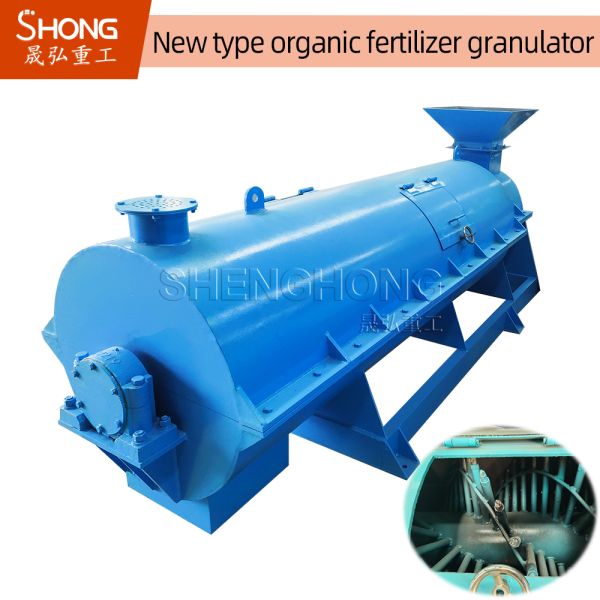

Carbon Steel Organic Fertilizer Granulator
New type organic fertilizer granulator with 95% pelletizing rate
Working Principle
The new organic fertilizer granulator utilizes high-speed rotating mechanical stirring force and resulting aerodynamic force to continuously mix, granulate, spheroidize, and densify fine powder materials. This process achieves uniform granulation with spherical particles featuring a sphericity ≥0.7 and particle sizes typically between 0.3-3 mm. The granulation rate reaches ≥90%, with particle diameter adjustable through material mixing quantity and spindle speed control.
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Raw Material Applications
Raw Material Classification Specific Applications
Livestock Manure Chicken, duck, rabbit, pig, cow, etc.
Pond Sludge Fish pond, shrimp pond, loach pond, etc.
Food Processing Waste Fungus food plantation waste, beer trough, starch trough, rice bran trough, bean dregs, pond dregs, fruit residue, sauce residue, etc.
Others Gardening waste, mud scum, straw, etc.
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
Technical Specifications
Model Power (kW) Rotation Speed (r/min) Capacity (t/h) Dimensions L×W×H (mm)
SHZ-60 30 312 1-1.5 3660×950×1050
SHZ-80 45 242 2-3 3665×1200×1280
SHZ-100 55 373 3-5 3660×1400×1500
SHZ-120 75 450 5-7 5410×1500×1610
Compatible Materials
This granulator is specifically designed for processing organic fertilizer raw materials including chicken manure, pig manure, cow manure, charcoal, clay, kaolin, and various urban domestic waste organic fermented fertilizers. It effectively handles livestock and poultry manure, compost fertilizer, green manure, sea manure, cake fertilizer, grass charcoal, soil and miscellaneous fertilizer, three wastes, and microbial materials, producing uniform spherical particles.
Key Advantages
  • Granular yield exceeding 95% with high production efficiency
  • Compatible with multiple powder material formulations and compositions
  • Superior compressive strength compared to disc and drum granulators
  • Adjustable particle size uniformity through variable speed control
  • Suitable for direct granulation of fermented organic fertilizer, eliminating drying processes
  • Significant reduction in manufacturing costs and energy consumption
  • Energy-efficient and environmentally friendly production technology
Carbon Steel Organic Fertilizer Granulator with 95% Pelletizing Rate and 380V Voltage for Efficient Fertilizer Production
