Dual-Mold Organic Fertilizer Granulator with 30kw Power and 4-6t/h Capacity for Efficient Pellet Production
Dual-Mold Organic Fertilizer Granulator with 30kw Power and 4-6t/h Capacity for Efficient Pellet Production
Specifications
Brand Name :
Shenghong
Model Number :
SHH-400
Certification :
CE, ISO9001
Place of Origin :
Henan, China
MOQ :
1 Piece
Payment Terms :
L/C,T/T
Supply Ability :
50 piece per month
Delivery Time :
with 5 days
Packaging Details :
Wooden case, 20GP, 40GP, 40HQ
Price :
Negotiable
Product mane :
Organic fertilizer pellet machine
Power :
30kw
Capacity :
4-6t/h
Voltage :
380V/415V/600V
Raw material :
Organic Powder
Description

Goat Manure Sulphur Chemical Organic Fertilizer Ring Die Granulator Machine


Introduction:

We offer a dual-mold granulator, an advanced organic fertilizer machine. It integrates a feeder, mixer, and granulator. A speed regulator adjusts the feed rate to prevent jamming. Combining both ring and flat die functions, it is efficient and ideal for fertilizer processing.

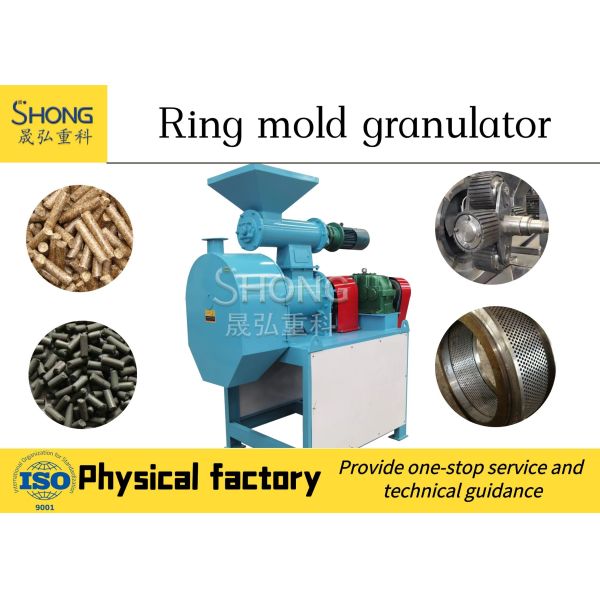

Dual-Mold Organic Fertilizer Granulator with 30kw Power and 4-6t/h Capacity for Efficient Pellet Production

Parameter:

Model

SHH-400

SHH-600

Capacity (t/h)

4-6

7-10

Power (kw)

30/3

45/4

Rotation speed (r/min)

78

86

Particle temperature rise (℃)

＜30

＜30

Goal formation rate (%)

95

95

Length × width × height

(mm)

2000*1050*2200

2235*1450*2250

Weight (kg)

1285

1800


Working principle:

The dual-mold granulator adopts spiral, two-way roller pressing, and dual-mold granulation technology to enable the organic materials to obtain continuous and strong roller pressing and shearing in the granulation area, and promote the physical granulation pressure between the powder and granular materials to be significantly strengthened. The granulation efficiency is 1-3 times higher than that of the conventional extrusion granulator, and the power consumption is reduced by more than 60%.

The double mold granulator is mainly used for (biological) organic fertilizer, compound fertilizer and pellet processing in the aquaculture processing industry.

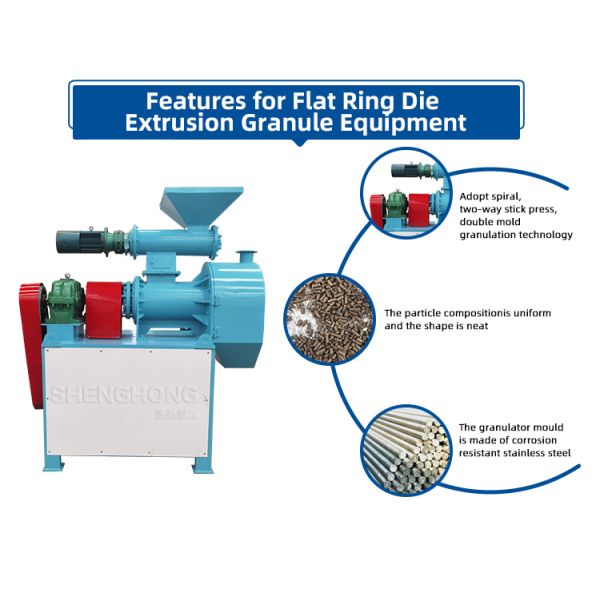

Dual-Mold Organic Fertilizer Granulator with 30kw Power and 4-6t/h Capacity for Efficient Pellet Production

Feature:

This machine integrates feeding, mixing, and granulation in one unit for efficient processing.

  • Dual-Mold System: Combines ring die and flat die functions, equivalent to two pelletizers working together.

  • High-Quality Output: Produces smooth, uniform pellets (Φ5–8mm) with low heat generation to preserve nutrients.

  • Smart Feeding: Equipped with a speed-regulated feeder that adjusts to material moisture, preventing jams.

  • Durable Construction: Key components made from wear-resistant, anti-corrosion stainless steel.

  • Convenient Storage: Low-moisture pellets are easy to store and have high material utilization.

Dual-Mold Organic Fertilizer Granulator with 30kw Power and 4-6t/h Capacity for Efficient Pellet Production
