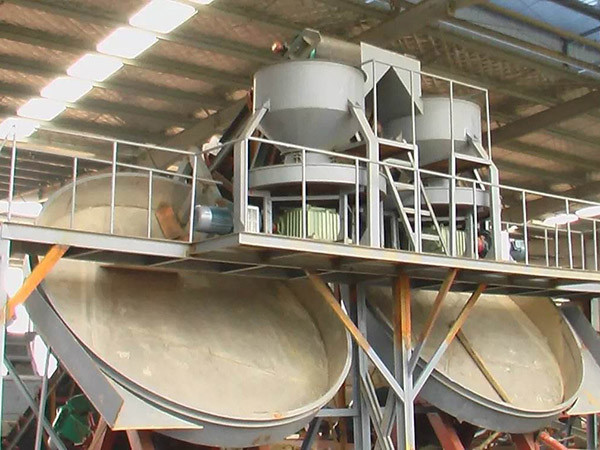

Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation
Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation
Specifications
Brand Name :
Shenghong
Model Number :
ZL10-ZL30
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou City China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Wooden Package or Container
Raw Material of Machines :
Carbon Steel
Granulation/ Granulating Type :
Wet type
Size of Fertilizer Granules :
2-6 mm
Warranty :
12 Month
Voltage :
380V
Description
SOP Carbon Steel Fertilizer Granule Machine / 380V Pan Granulation Process
Fertilizer Granulator Machine Introduction

93%+ Granulation Rate: Unique circular arc disc design, uniform particles, less material return, and a 30% increase in production efficiency!

Thick Carbon Steel Body: Corrosion-resistant, wear-resistant, with a lifespan of over 8 years!

380V Industrial Power Supply: Compatible with mainstream global voltages, supporting continuous 24-hour full load operation.

Intelligent Control System: The three parameters of tilt angle, speed, and water spray volume can be adjusted to meet different material requirements.

Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation
Fertilizer Granulator Machine Features
  • The granulating rate can be reached more than 93%
  • The design of granulator which greatly reduce the labor intensity and improves labor efficiency
  • The disc is sturdy, durable, anti-corrosion, has long life and requires very less maintenance
  • Easy operation and maintenance
  • Long service life
  • Quick profit, good economic returns
Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation

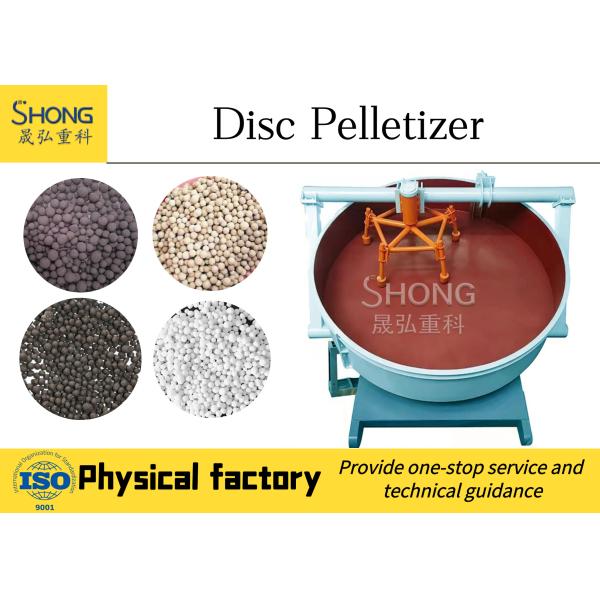

Fertilizer Granulator Machine Structure

The following components are standard disc pelletizer mechanisms:

Component Description
Base The base is fabricated using structural members and heavy welded plates. It provides a solid foundational structure for pelletizers.
Disc The disc, also referred to as the pan, is constructed of heavy-duty carbon steel plates. The plates are welded and reinforced to strengthen the overall structure. Included in the disc system is a hand-wheel operated jacking screw that easily adjusts the disc's horizontal angle.
Drive Unit The drive unit is comprised of automated mechanisms such as the motor, parallel or concentric shaft reducer, and V-belt drive. Both the motor and the reducer are mounted on a bracket behind the disc. The disc is then mounted to the reducer's output shaft.
Plow / Scraper Plows and scrapers are independently mounted vane-type components that control the material layer as it tumbles over the surface of the disc. The scrapers of larger diameter discs are covered with a ceramic, wear resistant coating/facing that protects the scraper from abrasive materials.
Plow Support The plow support is constructed of heavy, welded, structural members. It is fabricated to provide rigidity to the disc support system and permit quick adjustments to the disc angle without requiring a separate plow adjustment.
Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation Carbon Steel 380V Fertilizer Granulator Machine with 93% Granulation Rate for Efficient Pan Granulation
