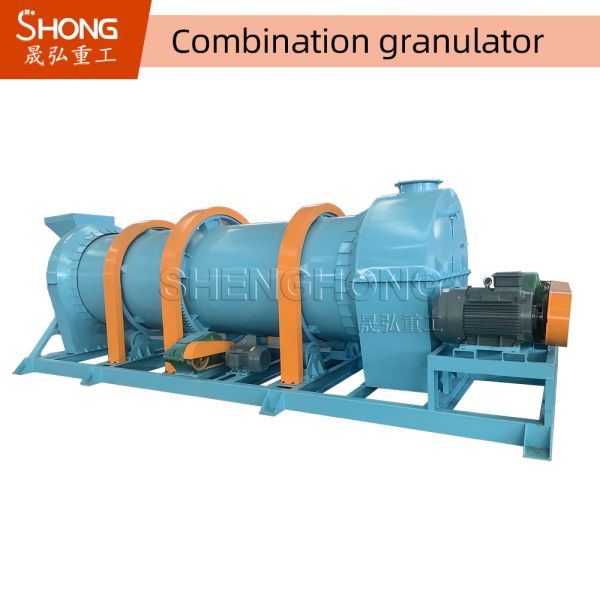

High Organic Matter Content Wet Type Granulating Organic Fertilizer Granulator with High Granulation Rate
High Organic Matter Content Wet Type Granulating Organic Fertilizer Granulator with High Granulation Rate
Specifications
Brand Name :
Shenghong
Model Number :
SHZ2-60/120~SHZ2-120/220
Certification :
BV ISO SGS
Place of Origin :
Zhengzhou China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 days
Packaging Details :
Package or Container
Feed moisture :
20%-40%
Function :
Making organic fertilizer
Place of origin :
Zhengzhou China
Product name :
Animal chicken manure
Usage :
Making fertilizer granules
Certificate :
ISO BV SGS
Type :
Wet type granulating
Name :
New type organic fertilizer guranlator
Description
Waste Granules Making Organic Fertilizer Machine, Granulator Machine
Product Overview

Advanced new type round ball organic fertilizer granulation machine utilizes mechanical stirring force of high-speed rotation and resulting aerodynamic force to continuously implement mixing, granulation, and other processes with wet-process granulation of fine powdery materials.

High Organic Matter Content Wet Type Granulating Organic Fertilizer Granulator with High Granulation Rate
Key Characteristics
  • Particle size distribution is centralized and easy to control
  • High organic matter content up to 100%, achieving pure organic granulation
  • Granules have no edges with very low powder rate
  • High efficiency suitable for mass production requirements
Working Principle

Using high-speed rotating mechanical shearing force and resulting air power, the machine continuously implements mixing, granulating, and density processes with fine powder materials. This achieves spherical particles with spherical degree of 0.7 or higher and particle size between 0.3-3 mm.

High Organic Matter Content Wet Type Granulating Organic Fertilizer Granulator with High Granulation Rate
Product Features
  • Applicable to many material types with round finished granules
  • Large output capacity of 5-20T/h for large production lines
  • Combines advantages of spiral teeth and rotary drum granulators
  • High ball-forming rate and excellent granule hardness
Main Characteristics
  • Special shaping and granulating theory eliminates need for die pelletizing
  • Produces smooth, uniformly sized granules with good fluidity and high density
  • Operating temperature of 60-100°C reduces drying costs
  • Formation rate exceeding 95%, certified by ISO9001
  • Lower operating costs compared to die pelletizing granulators
Technical Specifications
Model Motor Power (kw) Rotation Speed (r/min) Capacity (t/h) Dimensions (mm)
SHZ2-80/120 45/18.5/11kw 238/204/11.5 5-7 7400×1450×2100
SHZ2-100/150 75/22/11kw 204/191/9.8 7-9 8500×2000×2100
SHZ2-120/180 90/37/18.5kw 197/204/8 9-11 9350×2800×2500
High Organic Matter Content Wet Type Granulating Organic Fertilizer Granulator with High Granulation Rate
