Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
Specifications
Brand Name :
LJ
Model Number :
LJ-04
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per piece
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
Wooden cases,Wooden Pallet,steel pallet
Product Name :
Demister Pad; Gas Entrained Mist Separation
Key Words :
Mesh Mist Eliminator
Material :
SS304 SS316 Monel
Diameter :
DN300-6400mm
Hole shape :
Round;Rectangular;
Density :
144kg/m3
Filter rating :
99%
Application :
Filtration Industry
Feature :
Corrosion Resistance
Wire diameter :
0.20 mm-0.25mm
Technique :
knitting
Sample :
For Free
Description

Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3



Demister Pad of Description


A 304L stainless steel wire mesh demister pad is a high-efficiency gas–liquid separation component designed for chemical columns and process vessels. It is constructed from low‑carbon 304L stainless steel wire (typically 0.25–0.28 mm diameter), knitted into a multilayer, crimped mesh structure with a bulk density of 144 kg/m³. This grade offers excellent corrosion resistance, superior weldability, and toughness compared to standard 304, making it ideal for chemical environments.

Key specifications:
  • Density: 144 kg/m³
  • Voidage: ~98.2%
  • Specific surface area: ~275 m²/m³
  • Efficiency: 99%+ removal of droplets ≥3–5 μm
  • Pressure drop: Low (25–50 mm H₂O at typical velocities)

Demister Pad Features


1. High Void Volume

Standard pads feature a voidage of 97% to 99%. This ensures that the gas flow is largely unobstructed, maintaining a very low pressure drop—a critical factor in distillation where pressure stability affects the boiling points of the chemicals being separated.

2. Structural Rigidity

SS304 is a robust material that maintains its shape and density even under the constant thermal cycling and physical stress of a high-pressure distillation environment.

3. Cost-to-Performance Ratio

While materials like SS316 or Monel are used for highly corrosive acids, SS304 offers the best balance of corrosion resistance and affordability for:

Crude oil atmospheric distillation.

Alcohol and ethanol purification.

Organic solvent recovery.

General chemical fractionation.

4. Custom Geometry

For distillation towers, which can range from small diameters to several meters, SS304 pads are highly adaptable:

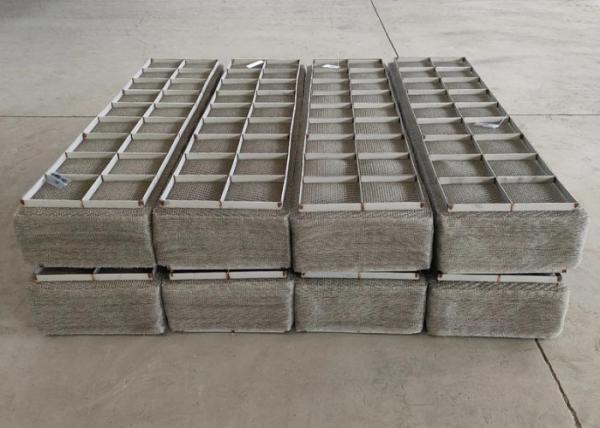

Sectional Design: Large pads are made in "manway-sized" blocks for easy installation through the tower's access ports.

Variable Densities: The mesh can be knitted more or less densely depending on whether the target is "standard" separation or "fine" mist removal.


Demister Pad Specification

Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
Material
stainless steel, Monel, titanium, PP, PVC, PE, PTFE and so on.
Wire diameter
0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
Mesh size
2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
Height or thickness
100 mm to 150 mm.
Pad diameter
300 mm - 6000 mm.


Demister Pad Application

  • Distillation Columns: Removes entrained droplets from overhead vapor, improving separation efficiency and reducing product loss.
  • Absorption/Scrubbing Columns: Eliminates mist from exhaust gases, protecting downstream equipment and reducing emissions.
  • Stripping Columns: Separates liquid carryover from stripping vapor, enhancing mass transfer.
  • Evaporators & Crystallizers: Recovers valuable liquid droplets from vapor streams.
  • Pressure Vessels & Knock‑out Drums: Acts as a primary or secondary mist eliminator for gas–liquid separation.


Demister Pad Package


1.wrapped with plastic film

2.With wooden cases or wooden pallet


Stainless Steel 304L Wire Mesh Demister Pad for Chemical Columns 144kg/m3
