Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls
Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls
Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls
Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls
Specifications
Brand Name :
LJ
Model Number :
LJ-13
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
Wooden Pallet,steel pallet
Production :
concertina wire
Key Words :
Razor Barbed Wire
Barbed Length :
1.5cm~3cm
Blade Thickness :
0.5mm - 1.2mm
Wire Material :
stainless steel wire
Wire Diameter :
1.5mm - 4.0mm
Roll Weight :
8-50kg
Wire Gauge :
18 Gauge
Zinc Coating :
40-280g/m2
Blade Material :
Hot dipped galvanzied iron plate
Clips :
3 clips or 5 clips
Blade Type :
Concertina
Type :
Double
Characteristics :
Sharp
Description

Anti-rust Cross Concertina Wire With Clips BTO22 10 - 99 Rolls

Razor Barbed Wire Description

Razor wire, also known as barbed tape, is a central strand of high tensile core wire and a punched steel tape with sharp barbs at close intervals uniformly. The razor tape is cold crimped tightly onto the spring steel core, and finally into rolls for easy transport and deployment. For long lasting protection in various high security applications, core wires are generally made of galvanized steel or stainless steel wires while blades are typically made of galvanized steel, stainless steel or aluminized zinc steel sheets.
Characterized by easy installation, razor wire offers both a visual deterrence and a physical barrier that is hard to climb over,thereby effectively keeping out illegal intruders. Razor wire applies to a wide range of applications to meet different security grade requirements.

Razor Barbed Wire Advabtages

Anti-climb;
High-strength steel core very difficult to cut off;
Powerful security fence barriers with neat appearance;
Packed in rolls easy for transport;
Extremely simple to install.

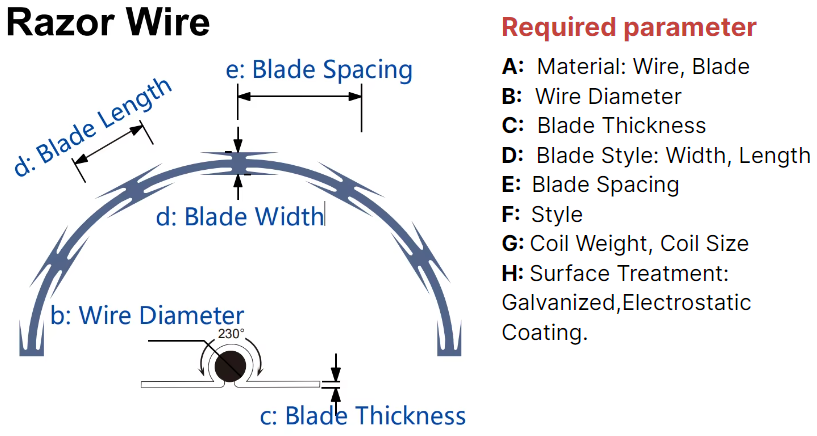

Razor Barbed Wire Specification
Wire diameter
2mm 2.5mm 2.8mm ( customized )
Thickness
0.5 mm - 0.6 mm.
Razor length
12 mm - 21 mm.
Razor width
13 mm - 21 mm.
Barb spacing
26 mm - 100 mm.
Outside diameter
450 mm - 960 mm.
Number of loops
33 mm - 102 mm.
Standard length per coil
8 m - 16 m.
Razor barbed types
Single coil and cross type.
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
7-8m
CBT-60/65
Single coil
500mm
56
12-13m
CBT-60/65
Single coil
700mm
56
13-14m
CBT-60/65
Single coil
960mm
56
14-15m
CBT-60/65
Single coil
450mm
56
8-9m
BTO-12/22/25/30
Cross type
500mm
56
9-10m
BTO-12/22/25/30
Cross type
600mm
56
10-11m
BTO-12/22/25/30
Cross type
600mm
56
8-10m
BTO-12/22/25/30
Cross type
700mm
56
10-12m
BTO-12/22/25/30
Cross type
800mm
56
11-13m
BTO-12/22/25/30
Cross type
900mm
56
12-14m
BTO-12/22/25/30
Cross type
960mm
56
13-15m
BTO-12/22/25/30
Cross type
980mm
56
14-16m
BTO-12/22/25/30
Cross type

Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls

Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls

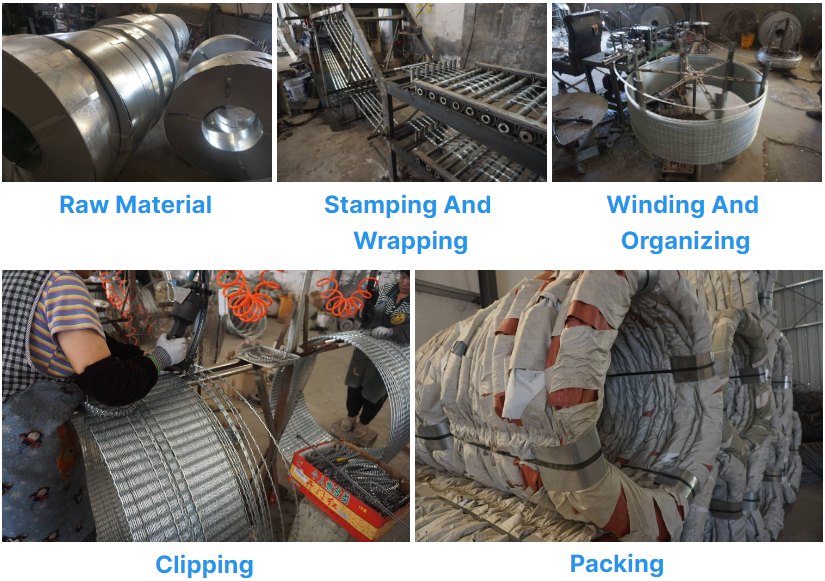

Razor Barbed Wire Production Process

Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls

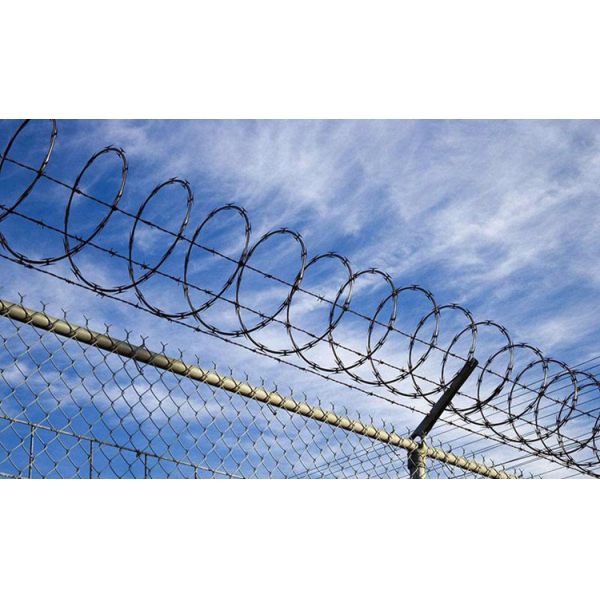

Razor Barbed Wire Application

Razor Mesh is installed as high security fencing throughout the world at airports, water reservoirs, warehouses,electrical sub-stations, border fences, oil depots, electrical sub-stations and factories.

In restricted field, airports fencing, prisons protection, detention houses, government buildings and other national security facilities.

Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls

Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls

Razor Barbed Wire Package

1.With plastic weaving bags outside

2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
Anti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 RollsAnti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 RollsAnti Rust Cross Barbed Wire Concertina Coil With Clips BTO22 10 - 99 Rolls
