Specifications
Brand Name :
LJ
Model Number :
LJ-13
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
Wooden Pallet,steel pallet
Production :
Razor Barbed Wire
Key Words :
concertina coils barbed wire
Wire Diameter :
1.4mm - 2.5mm
Blade Thickness :
0.5mm - 0.6mm
Barb Spacing :
3" - 6
Blade Length :
22mm - 65mm
Coil Length :
8m - 15m
Tensile Strength :
450N/mm2 - 1500N/mm2
Blade Type :
Single Razor, Cross Razor
Material :
Galvanized Steel
Features :
High Tensile Strength
Application :
Border Security
Description

Galvanized Razor Barbed Wire Cross Fence for Protection Perimeter

Razor Barbed Wire Description

Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor type barbed wire is widely used in high-grade residence district, warehouses and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.
Razor Mesh Security Fence is a multi-functional, high security mesh fencing made of straight-blade netting welded together.
Anti-climb fence with flat panel of crossed razor wire welded mesh in diamond or oblong square holes. The razor mesh fencing is virtually impossible to climb or cut without standard tools. The diamond pattern or square pattern combined with vertical opposing barbs act as an entrapment while retaining a neat appearance. The welded blade barrier is designed for commercial, government and safety uses.

Razor Barbed Wire Advabtages

Anti-climb;
High-strength steel core very difficult to cut off;
Powerful security fence barriers with neat appearance;
Packed in rolls easy for transport;
Extremely simple to install.

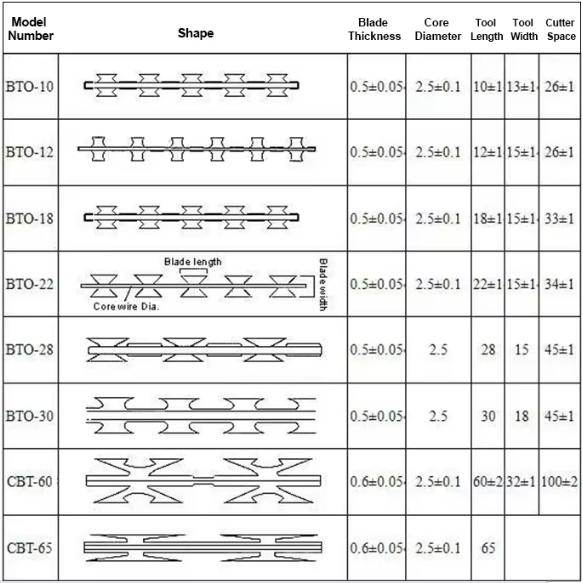

Razor Barbed Wire Specification
Wire diameter
2mm 2.5mm 2.8mm ( customized )
Thickness
0.5 mm - 0.6 mm.
Razor length
12 mm - 21 mm.
Razor width
13 mm - 21 mm.
Barb spacing
26 mm - 100 mm.
Outside diameter
450 mm - 960 mm.
Number of loops
33 mm - 102 mm.
Standard length per coil
8 m - 16 m.
Razor barbed types
Single coil and cross type.
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
7-8m
CBT-60/65
Single coil
500mm
56
12-13m
CBT-60/65
Single coil
700mm
56
13-14m
CBT-60/65
Single coil
960mm
56
14-15m
CBT-60/65
Single coil
450mm
56
8-9m
BTO-12/22/25/30
Cross type
500mm
56
9-10m
BTO-12/22/25/30
Cross type
600mm
56
10-11m
BTO-12/22/25/30
Cross type
600mm
56
8-10m
BTO-12/22/25/30
Cross type
700mm
56
10-12m
BTO-12/22/25/30
Cross type
800mm
56
11-13m
BTO-12/22/25/30
Cross type
900mm
56
12-14m
BTO-12/22/25/30
Cross type
960mm
56
13-15m
BTO-12/22/25/30
Cross type
980mm
56
14-16m
BTO-12/22/25/30
Cross type

Galvanized Razor Barbed Wire Cross Fence for Protection Perimeter

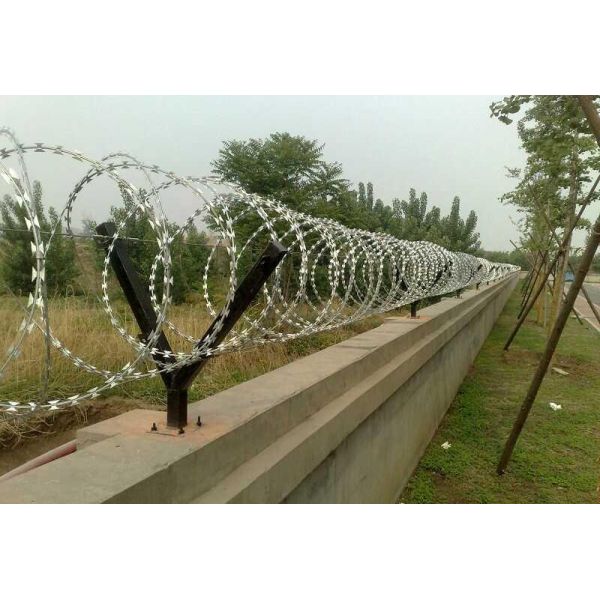

Razor Barbed Wire Application

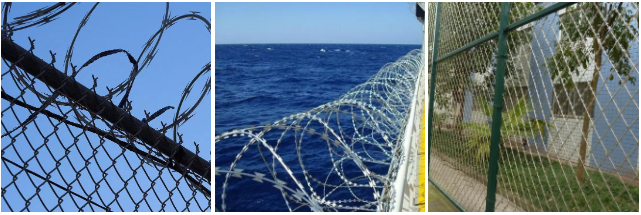

Razor Mesh is installed as high security fencing throughout the world at airports, water reservoirs, warehouses,
electrical sub-stations, border fences, oil depots, electrical sub-stations and factories.

Galvanized Razor Barbed Wire Cross Fence for Protection Perimeter

Galvanized Razor Barbed Wire Cross Fence for Protection Perimeter

Razor Barbed Wire Package

1.With plastic weaving bags outside

2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
Galvanized Razor Barbed Wire Cross Fence for Protection PerimeterGalvanized Razor Barbed Wire Cross Fence for Protection Perimeter
