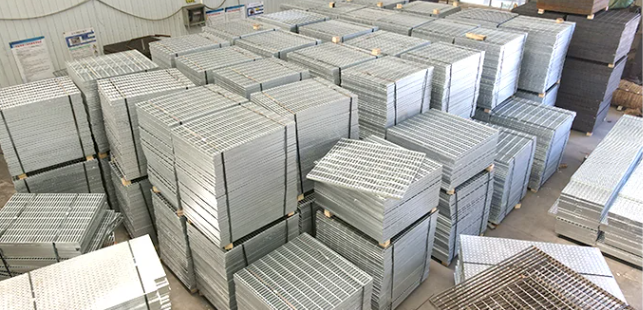

Heavy Duty Hot Dip Galvanised Steel Grating For Driveway / Walkways 45*5mm
Heavy Duty Hot Dip Galvanised Steel Grating For Driveway / Walkways 45*5mm
Heavy Duty Hot Dip Galvanised Steel Grating For Driveway / Walkways 45*5mm
Heavy Duty Hot Dip Galvanised Steel Grating For Driveway / Walkways 45*5mm
Specifications
Brand Name :
LJ
Model Number :
LJ-08
Certification :
ISO9001,SGS,CE
Place of Origin :
Hebei Province,China
MOQ :
50 pcs
Price :
$5.3-15.8 per square meter
Payment Terms :
L/C,T/T
Supply Ability :
5000 pcs / week
Delivery Time :
according to the quantity
Packaging Details :
by steel pallet
Product Name :
Steel Grating
Key Word :
Steel Walkway Grating
Material :
Low Carbon Steel,Stainless Steel
Type :
Plain surface, Serrated surface
Bear Bar Size :
20*3mm,30*4mm,40*5mm,etc
Bear Bar Pitch :
30mm,40mm,60mm,etc
Surface Treatment :
Hot-Dip Galvanized / Painted
Application :
Industrial Walkways, Platforms, Stairs, Drain Covers
Port of Loading :
Xingang Port
Description

Heavy Duty Hot Dip Galvanized Steel Grating for Driveway / Walkways 45*5mm

Description of Steel Grating

Steel gratings devide into two types: Welded bar grating&Press lock grating.

Welded bar grating is also called metal open bar grating.The bearing bars and cross bars are welded under high heat and pressure to form a permanent joint.

And there are two types of the steel bar grating: smooth and serrated steel bar gratings. But the serrated steel grating have better skid resistant property than the smooth surface steel bar grating.

Press lock grating is also called pressed grating or pressure lock grating, which is made of low carbon steel, stainless steel or aluminum. The press-locked grating is constructed with two close-tolerance slotted bars bonded together by tremendous hydraulic pressure.With high strength and firm structure, it's widely used in industrial factories or parks, commercial buildings, municipal engineering as stair treads, platforms, walkways, security screens, tree covers, trench covers, drainage covers and so on.

Specifications of Steel Grating

Bearing Bar Pitch

Cross Bar Pitch

Load steel size (Width * Thickness)

20*3

25*3

32*3

40*3

20*5

25*5

30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

60

50

G203/50/60

G253/50/60

G323/50/60

G403/50/60

G205/50/60

G255/50/60

Bearing Bar Pitch

Cross Bar Pitch

Load steel size (Width * Thickness)

32*5

40*5

45*5

50*5

55*5

60*5

30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

60

50

G325/50/60

G405/50/60

G455/50/60

G505/50/60

G555/50/60

G605/50/60

Features of Steel Grating

1. Light weight

2. great load-bearing capacity

3. non-slip and safe

4. easy installation

5. material-economic

6. sturdy and durable

7. ventilated, easy to clean and attractive appearance.

Applications of Steel Grating

1 Power plant

2 Chemical plant

3 Oil Refinery

4 Steel plant

5 Paper-making factory

6 Architectural and Decorative

7 Cement plant

8 Civil engineering

9 Wastewater treatment

10 Pharmacy industry

11 Food processing
