Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm
Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm
Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm
Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm
Specifications
Brand Name :
Luojie
Model Number :
LJ-16
Certification :
ISO9001:2015,SGS
Place of Origin :
Hebei Province,China
MOQ :
1 cubic meters
Price :
$280-1500/Cubic Meter
Payment Terms :
L/C,T/T
Supply Ability :
500 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden box or customized
Product Name :
Random Packing
Key Word :
Metal Pall Ring
Material :
Stainless Steel, Plastic
Type :

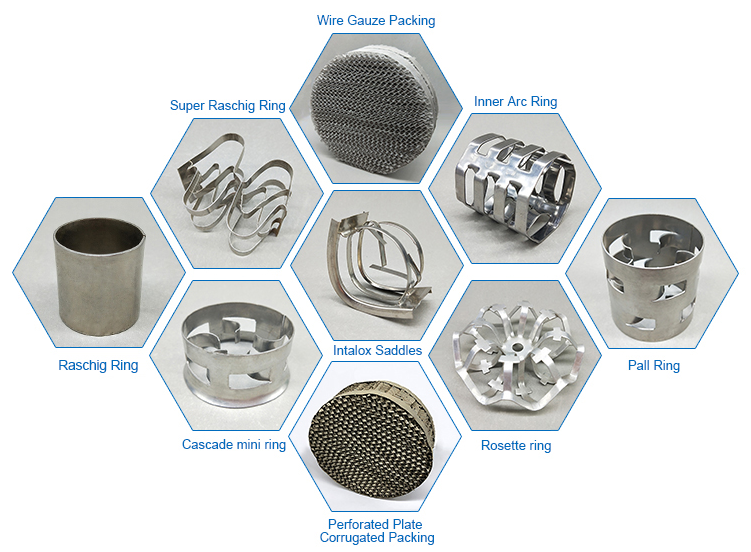

Pall Rings, Raschig Rings, Berl Saddles, Intalox Saddles
Size :
10 mm – 100 mm (customizable)
Surface Area :
150 m²/m³ – 500 m²/m³
Density :
0.5 – 1.2 g/cm³
Application :
Absorption Towers, Scrubbers, Gas Scrubbing Systems
Sample :
Provide for Free
Warranty :
1 year
Description
Stainless Steel Random Packing Pall Ring For Petroleum Refining 50*50*0.5mm
Description of Random Packing
Random packing is a fundamental passive mass transfer and separation medium extensively utilized in industrial columns, including distillation, absorption, stripping, and liquid-liquid extraction columns. It differs fundamentally from structured packing—whose units follow fixed, uniform geometric arrangements—by consisting of discrete, pre-formed units (such as rings, saddles, or hollow cylinders) that are randomly filled into the column. This random arrangement creates a tortuous internal structure with a high specific surface area, which acts as a channel for thorough contact between gas-liquid or liquid-liquid phases. Its core design goal is to maximize the interfacial contact area between the two interacting phases while minimizing fluid flow resistance (pressure drop), thereby enabling efficient mass transfer and ensuring stable operation of industrial separation processes.
Specifications of Random Packing

Size (Inch/mm)

Bulk density (304,kg/m3)

Number (per m3)

Surface area (m2/m3)

Free volume (%)

Dry packing factorm-1

1/4”

6*6*0.3

900

4000000

904

88.6

1307.4

3/8”

10*10*0.3

480

768000

482

93.8

583.8

1/2”

13*13*0.3

420

410000

415

4.8

489.2

5/8”

16*16*0.3

348

201000

344

95.5

393.2

1”

25*25*0.4

288

53500

212

96.2

229.8

1”

25*25*0.5

367

53500

216

95

237.2

1”

25*25*0.6

439

53500

219

94.2

244.1

1.5”

38*38*0.4

193

15180

143

97.2

148.4

1.5”

38*38*0.5

246

15180

145

96.7

151.7

1.5”

38*38*0.6

328

15000

146

95.9

154.6

2”

50*50*0.5

185

6500

106

97.5

128.5

2”

50*50*0.8

315

6500

108

96.8

130.5

2”

50*50*1.0

380

6500

132.5

96.0

134.0

3”

76*76*1.0

265

1920

69

97.4

79.6

3.5”

89*89*1.0

224

1220

61

97.1

66.2
Features of Random Packing

  • Large surface area for efficient mass transfer

  • Low pressure drop with high void space

  • Good liquid distribution and wetting performance

  • Available in metal, plastic, and ceramic materials

  • High mechanical strength and chemical resistance

  • Easy installation and replacement

  • Suitable for distillation, absorption, and stripping systems

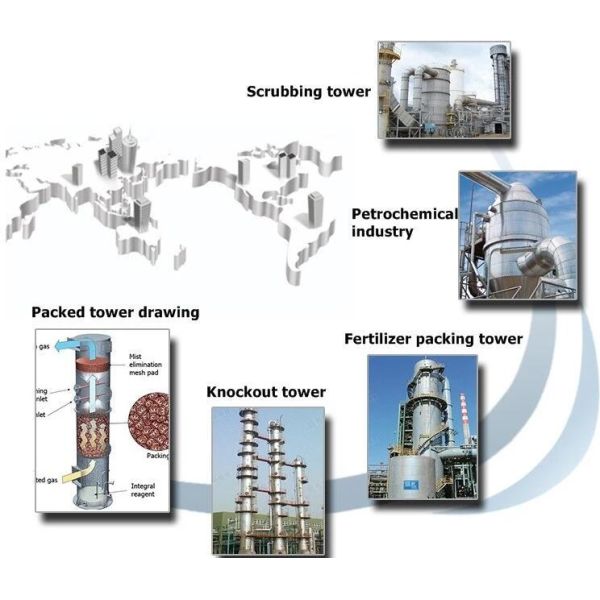

Applications of Random Packing

1. Distillation Columns

2. Gas Absorption Towers

3. Stripping and Desorption Units

4. Air Pollution Control Systems

5. Heat Recovery and Cooling Towers

6. Water and Wastewater Treatment

7. Chemical and Petrochemical Processing

8. Desiccant and Drying Towers

9. Gas Sweetening Units

10. Solvent Recovery and Purification
