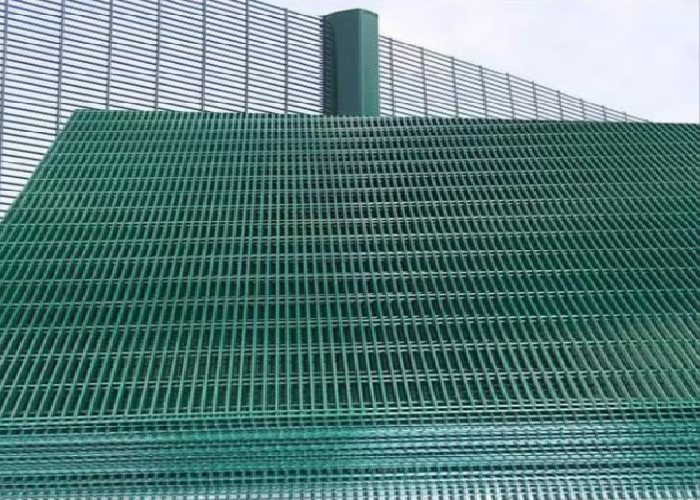

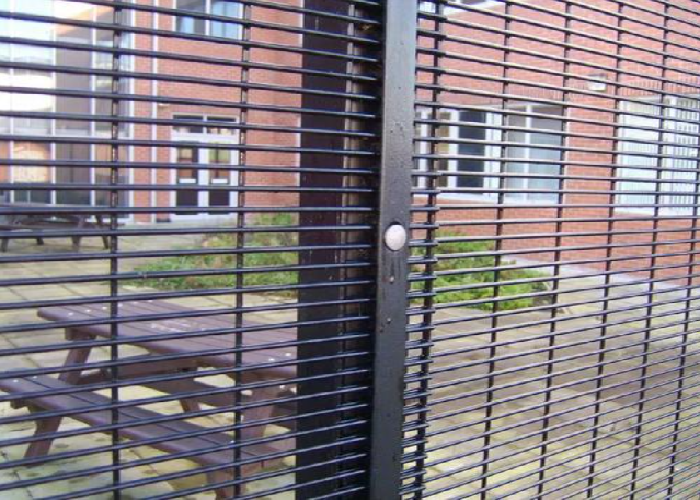

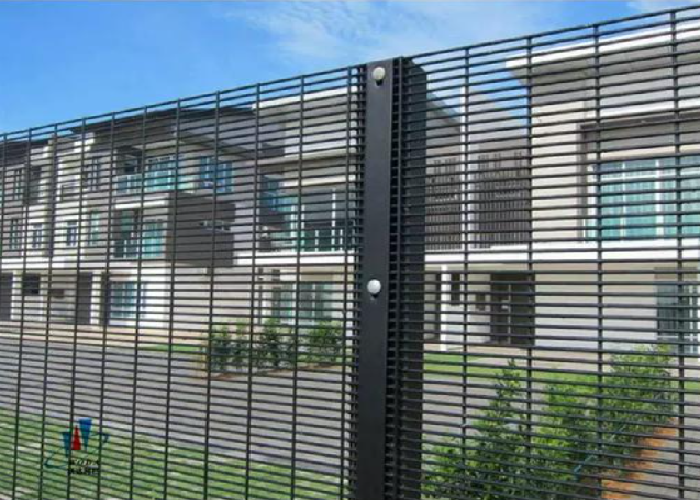

Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated
Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated
Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated
Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated
Specifications
Brand Name :
Luo Jie
Model Number :
LJ-02
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$6.5-10.9 per square meter
Payment Terms :
T/T,L/C
Supply Ability :
1000 sets per day
Delivery Time :
7-15 days according to the quantity
Packaging Details :
steel pallet or as your demand
Material :
Low Carbon Steel Wire (Hot-dip Galvanized / Stainless optional)
Wire Diameter :
3.2 mm or 4.0 mm (optional)
Mesh Size :
76.2 × 12.7 mm (3"×0.5")
Panel Size :
2508 mm width × customizable height
Surface Finish :
Hot-dip Galvanized + Powder Coated / PVC Coated optional
Packaging & Accessories :
Palletized; includes special clamps, anti-loosening bolts, post caps & installation manual
Description

Clear-View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder-Coated

Technology:

The 358 system uses a tightly welded mesh (typical opening 76.2 × 12.7 mm) to eliminate footholds and insertion points for tools. We offer 3.2 mm and 4.0 mm wire options to tune stiffness vs. cost; weld integrity and coating strategy (hot-dip galvanize + powder coat) deliver strong anti-cut and anti-bend performance suitable for airports and detention facilities.

Production Process:

Panels are produced on automatic welding lines, then undergo pickling, hot-dip galvanizing (or plating), drying and powder-coating/curing. Edge reinforcement and accessory packing complete the process. We support weld-strength and coating-thickness testing and can provide third-party inspection certificates.

Service:

We offer site survey guidance, full engineering package (post selection, foundation details, topping options), pre-shipment inspection, installation guides, and optional maintenance contracts for long-term projects. Spare parts and staged deliveries available.

FAQ:

Q: Can panels be used with razor/razor tape?

A: Yes — top-mount brackets or anchors are provided to install concertina/razor wire.

Q: What is standard panel width?

A: Typically 2508 mm (8'2").

Technical Data:

Item Typical

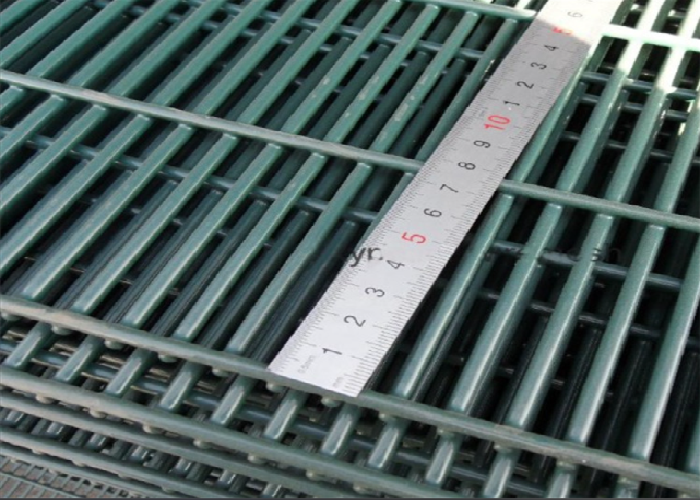

Mesh 76.2 × 12.7 mm (3"×0.5").
Wire 3.2 mm / 4.0 mm optional.
Panel Width 2508 mm.
Height Options 1.2m / 1.8m / 2.4m / 3.0m (custom).
Finish Hot-dip Galvanized + Powder Coat / PVC Coated.

Quality Assurance & Delivery

We implement strict QA checkpoints from incoming material inspection, weld-strength sampling and coating-thickness/adhesion checks to final dimensional and visual inspections. For special projects we can perform salt-spray testing or arrange third-party inspections and provide test reports upon request. Standard delivery is palletized and securely packaged; we support sea/air/land shipping and staged deliveries. Lead times depend on order quantity and customization level and are specified on the quotation (typically several weeks to a few months). Products are offered with a limited warranty (e.g., 12 months or as contractually agreed) and optional installation support and long-term maintenance packages are available to ensure performance throughout the project lifecycle.

Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated

Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated

Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated

Clear View 358 Security Fence Panel Welded 3.2/4.0mm Mesh Powder Coated
