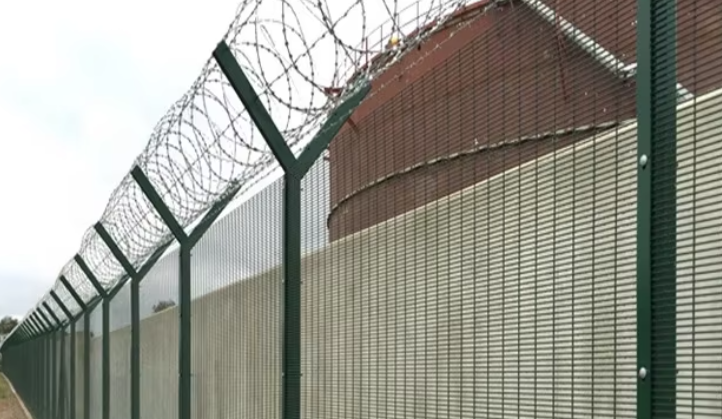

Green Color 358 Security Fence with Y Post Razor Wire on Top for Prison
Green Color 358 Security Fence with Y Post Razor Wire on Top for Prison
Green Color 358 Security Fence with Y Post Razor Wire on Top for Prison
Green Color 358 Security Fence with Y Post Razor Wire on Top for Prison
Specifications
Brand Name :
LJ
Model Number :
LJ-02
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$6.5-10.9 per square meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-15 days according to the quantity
Packaging Details :
steel pallet or as your demand
Product Name :
358 Security Fence
Key Word :
welded mesh fence; anti-theft fence
Material :
Low Carbon Steel
Wire Gauge :
8 gauge (4.0mm)
Mesh Hole :
3" × 0.5"(76.2*12.7mm)
Panel Size :
height 6ft/8ft, length 8ft/10ft/12ft ; or Customized
Surface Treatment :
Galvanized+powder coating, Hot-dipped galvanized
Accessories :
Clamp,Post,Post cap
Feature :
Small mesh aperture, anti-cut, anti-climb, finger-resistant
Application :
prisons, airports, power plants, data centers
Certificate :
ISO9001;SGS
Sample :
For Free
Description


Green Color 358 Security Fence with Y Post Razor Wire on Top for Prison



Description of 358 Security Fence


1. Mesh Configuration: 3" × 0.5" (76.2mm × 12.7mm) rectangular mesh, anti-climb design with small vertical openings.

2. Wire Gauge: 8 gauge (4.0mm) high-tensile steel wire, hot-dip galvanized or PVC-coated.

3. Panel Dimensions: Standard height 6ft/8ft (1.8m/2.4m), length 10ft/12ft (3.05m/3.66m); custom sizes available.

4. Material: Low-carbon steel (Q235/Q195) or stainless steel (304/316) for corrosion resistance.

5. Surface Treatment: Hot-dip galvanization (min. 85μm coating thickness) or PVC powder coating (100-120μm, RAL colors optional).

6. Tensile Strength: ≥350MPa (steel wire), ensuring structural stability under impact.

7. Weight: 18-25kg per panel (varies by size and coating type).

8. Connection: Panel-to-post connection via M8/M10 bolts with anti-theft nuts; posts spaced 3.05m/3.66m apart.

9. Application: High-security areas (prisons, airports, power plants, data centers) due to anti-cut/anti-climb features.


Specifications of 358 Security Fence


Panel size:Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts


Specification of 358 Security Fence
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')		 3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm		 Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.


Features of 358 Security Fence


1.Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.

2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.

3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.


Applications of 358 Security Fence


· Bridge anti-climb guarding & guard safety screening.

· Psychiatric hospital security fencing.

· Prison security fencing.

· Factory machine guards.

· Walkway security fencing.

· Airport security fencing.

· Shipping Port Security fencing.

· Electrical sub-station fencing.

· Gas pipelines security fence.

· High security living area and private field fence.
