Anti Climb 358 Security Fence Panel Welded 4mm Mesh Powder Coated Finish
Anti Climb 358 Security Fence Panel Welded 4mm Mesh Powder Coated Finish
Anti Climb 358 Security Fence Panel Welded 4mm Mesh Powder Coated Finish
Anti Climb 358 Security Fence Panel Welded 4mm Mesh Powder Coated Finish
Specifications
Brand Name :
Luo Jie
Model Number :
LJ-02
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$6.5-10.9 per square meter
Payment Terms :
T/T,L/C
Supply Ability :
1000 sets per day
Delivery Time :
7-15 days according to the quantity
Packaging Details :
steel pallet or as your demand
Material :
Low Carbon Steel Wire (Galvanized or Stainless optional)
Wire Diameter :
4.0 mm (typical)
Mesh Size :
76.2 × 12.7 mm (3"×0.5")
Panel Size :
2500 mm width × customizable height
Surface Finish :
Hot-dip Galvanized / Powder-Coated / PVC Coated
Post Type :
Square/Rectangular posts, in-ground or baseplate options
Height Options :
1.2m / 1.8m / 2.0m / 2.4m / 3.0m (customizable)
Packaging :
Palletized; includes clamps, bolts, post caps & installation guide
Description

Anti-Climb 358 Security Fence Panel Welded 4mm Mesh Powder-Coated Finish

Product Information:

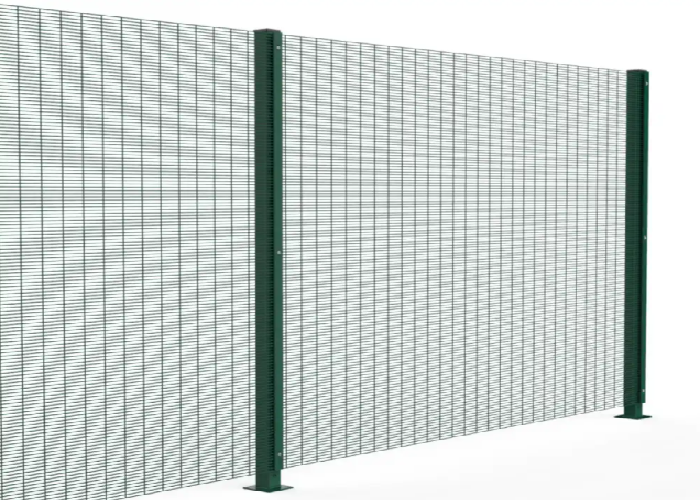

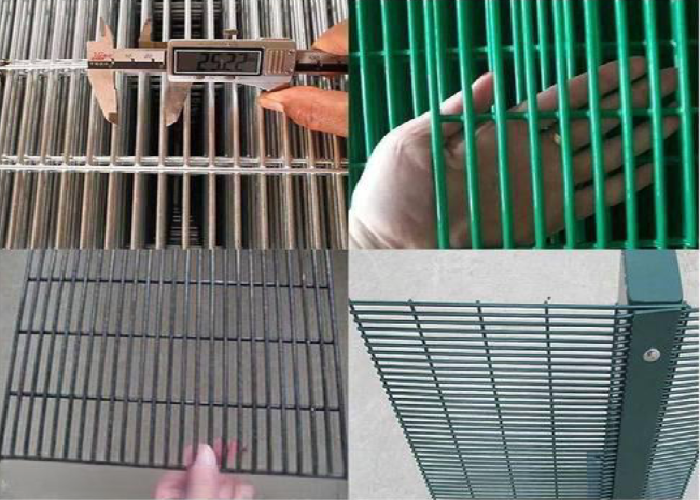

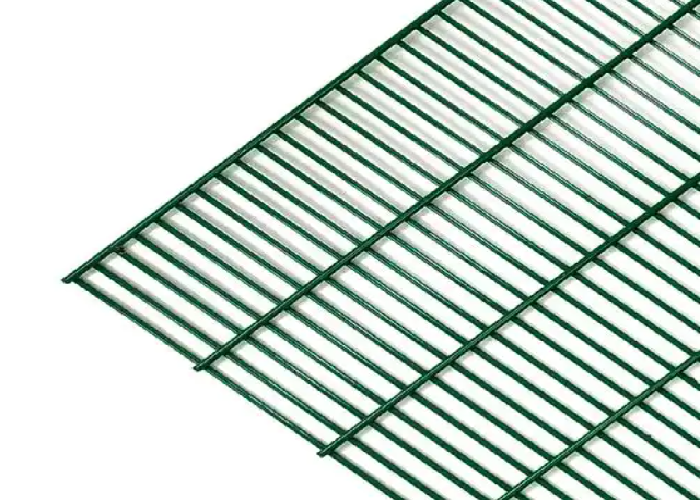

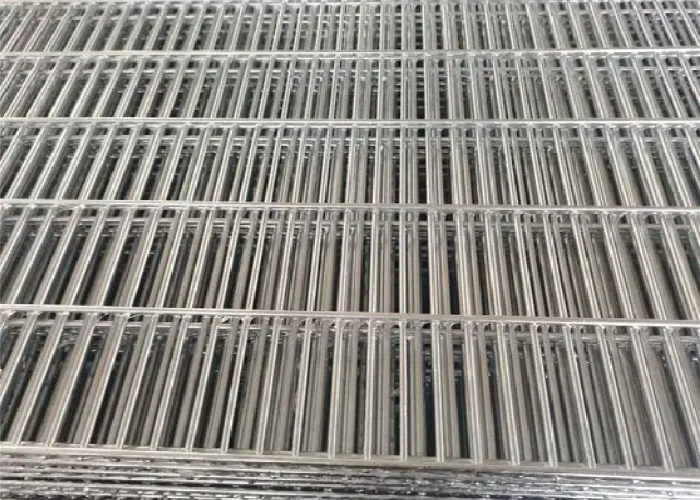

The 358 security fence is a tightly welded mesh panel with a typical mesh opening of 76.2 × 12.7 mm (3" × 0.5") and commonly a 4.0 mm wire diameter. Panel widths are typically around 2.5 m with customizable heights. The design delivers clear sightlines for surveillance combined with significant physical delay against intrusion.

Characteristics:

Small mesh openings prevent footholds and fingerholds, greatly reducing climability; robust welded joints and wire diameter improve resistance to cutting.

Multiple surface finishes (hot-dip galvanizing + powder coating / PVC coating) provide corrosion resistance and aesthetic options.

Advantages:

Anti-climb, anti-cut, and clear-view characteristics make 358 panels ideal for high-security environments.

Modular panels and standardized fixings speed installation and simplify maintenance; compatible with concertina/razor wire and other layered security measures.

Application:

Commonly used for airports, prisons, military sites, utility installations, industrial perimeters, schools and gated communities—anywhere a high level of perimeter protection is required.

Technical Data:

Item Typical Value
Mesh Size 76.2 × 12.7 mm (3"×0.5")
Wire Diameter 4.0 mm (typ.)
Panel Width 2500 mm
Height Options 1.2m / 1.8m / 2.0m / 2.4m / 3.0m (customizable)
Finish Hot-dip Galvanized / Powder-Coated / PVC Coated
Accessories Posts, clamps, bolts, post caps, installation guide

Installation & Maintenance:

The 358 fence features modular panels sized to match post centers—post spacing is typically 2.5 m. Installation options include in-ground concrete footings or baseplate anchor fixings; footing depth and anchor specifications should be engineered according to local soil conditions and wind loads. During installation, pre-fit clamps or fixings on posts, set panels plumb, then secure with anti-loosening fasteners; use gaskets or joint fillers at panel-to-post interfaces to prevent water ingress. For maintenance, inspect fastenings, coatings and welds at least annually, remove debris, and promptly touch up any scratches or exposed metal with protective coating; in coastal or highly corrosive environments consider heavier galvanizing or stainless components to extend service life.
