Powder Coated Black Color 358 Security Fence for Boundary Security 2*3m
Powder Coated Black Color 358 Security Fence for Boundary Security 2*3m
Powder Coated Black Color 358 Security Fence for Boundary Security 2*3m
Powder Coated Black Color 358 Security Fence for Boundary Security 2*3m
Specifications
Model Number :
LJ-02
Key Word :
anti-cut fence; anti-theft fence
Certification :
ISO9001:2015
Material :
Low Carbon Steel
Payment Terms :
T/T
Surface Treatment :
Galvanized+powder coating, Hot-dipped galvanized
Origin :
Hebei Province,China
Price :
$6.5-10.9 per square meter
Panel Size :
6*8ft,8*12ft,etc.
Supply Ability :
1000 sets per day
Accessories :
Clamp,Post,Post cap
Certificate :
ISO9001;SGS
MOQ :
50 Sets
Delivery Time :
7-15 days according to the quantity
Mesh Hole :
3" × 0.5"(76.2*12.7mm)
Feature :
Small mesh aperture, anti-cut, anti-climb, finger-resistant
Place of Origin :
Hebei Province,China
Wire Gauge :
8 gauge (4.0mm)
Packaging Details :
steel pallet or as your demand
Application :
prisons, airports, power plants, data centers
Brand Name :
LJ
Product Name :
358 Security Fence
Description

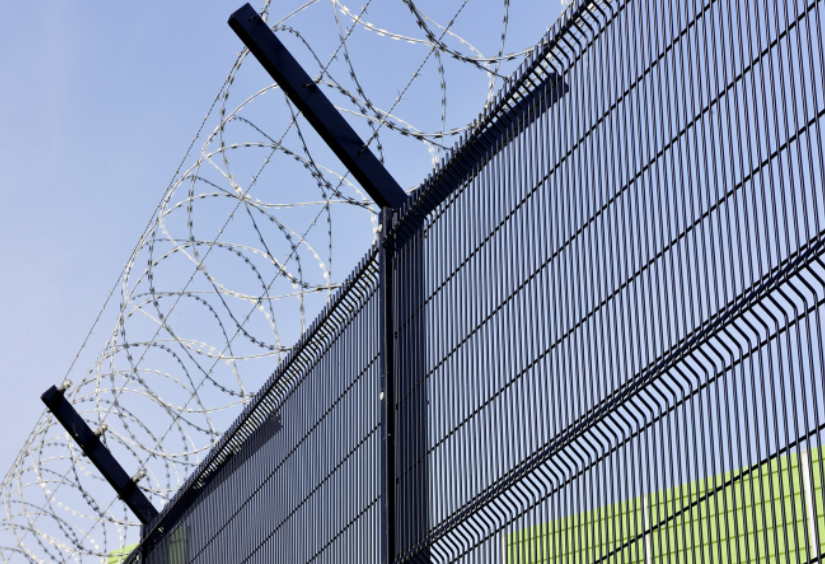

Powder Coated Black Color 358 Security Fence for Boundary Security 2*3m



Description of 358 Security Fence


358 Security Fence, also known as anti-climb clear view fence or prison mesh fence. The “358” naming refers to its standard specification: 3 inch (76.2 mm) horizontal aperture, 0.5 inch (12.7 mm) vertical aperture, with 8-gauge (4.0 mm) high tensile steel wire.

It is a rigid welded mesh perimeter barrier specially engineered for high-security requirements. Tight mesh openings eliminate climbing grips while maintaining good visibility for surveillance. Available with hot-dip galvanized or galvanized plus polyester powder coated finish. Complete supporting system includes mesh panels, steel posts, anti-tamper security bolts, matching gates, and optional razor wire fittings, widely adopted for government, critical infrastructure and high-risk boundary protection projects.


1. Mesh Configuration: 3" × 0.5" (76.2mm × 12.7mm) rectangular mesh, anti-climb design with small vertical openings.

2. Wire Gauge: 8 gauge (4.0mm) high-tensile steel wire, hot-dip galvanized or PVC-coated.

3. Panel Dimensions: Standard height 6ft/8ft (1.8m/2.4m), length 10ft/12ft (3.05m/3.66m); custom sizes available.

4. Material: Low-carbon steel (Q235/Q195) or stainless steel (304/316) for corrosion resistance.

5. Surface Treatment: Hot-dip galvanization (min. 85μm coating thickness) or PVC powder coating (100-120μm, RAL colors optional).

6. Tensile Strength: ≥350MPa (steel wire), ensuring structural stability under impact.

7. Weight: 18-25kg per panel (varies by size and coating type).

8. Connection: Panel-to-post connection via M8/M10 bolts with anti-theft nuts; posts spaced 3.05m/3.66m apart.

9. Application: High-security areas (prisons, airports, power plants, data centers) due to anti-cut/anti-climb features.


Specifications of 358 Security Fence


Panel size:Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts


Specification of 358 Security Fence
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')		 3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm		 Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.


Features of 358 Security Fence

  • Super Anti-climb: 358 tiny mesh holes leave no finger/toe grip, 100% anti-climb effect.
  • Anti-cut & anti-vandal: High-tensile steel wire resists bolt cutter cutting and forced prying.
  • Clear view design: Transparent mesh ensures zero blind spots for camera surveillance.
  • Durable corrosion resistance: Hot-dip galvanized or powder coated finish for rust, UV and weather resistance.
  • Rigid welded structure: Full weld joints + optional V-bend reinforce stability, no deformation.
  • Anti-tamper installation: Equipped with security break-off bolts, prevents unauthorized dismantling.
  • Easy & fast installation: Modular panel design saves time and labor cost for large projects.
  • Low maintenance & long lifespan: No frequent repainting, excellent long-term cost performance.

Applications of 358 Security Fence

  • Prisons, detention centers and law enforcement facilities
  • Government compounds, border boundaries
  • Airports, ports, railway stations and transport restricted zones
  • Power stations, water plants, oil & gas energy facilities
  • Data centers, bonded warehouses and industrial restricted areas
  • High-security schools, public institutions and municipal key projects
