1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
1/2 - 6 Hole Size Galvanized Welded Mesh Panel 1.22x2.44m Size
Specifications
Brand Name :
HSJ
Model Number :
hsj008
Certification :
ISO9001
Place of Origin :
China
MOQ :
10sets
Price :
$2.5/pc
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pc/week
Delivery Time :
5-8 work day
Packaging Details :
pallet
Processing name :
welded mesh panel
Keyword :
wire Mesh Panel
Material :
Galvanized Iron Wire, Low-Carbon Iron Wire
Wire Gauge :
1.6mm-12mm
Hole Shape :
Square or rectangle
Surface treatment :
Hot Dipped Galvanzied or Electro Galvanized
Welding Type :
Galvanized After or Before Welding
Feature :
Easily Assembled, Anti-Corrosion, Eco Friendly
Certificate :
IOS
Description
Welded mesh panel

Material: Low carbon steel wire Q195 Q235
Processing mode: welded
Application: House beam, house roof, building board, wall, concrete road, bridge, airfield pavement, highway, water dam, road base and constructions.

Types of Welded Wire Mesh Panels
* Black wire welded mesh panel
* Electro galvanized wire before welding wire mesh panel
* Electro galvanized after welding wire mesh panel
* Hot dipped galvanized wire before welding wire mesh panel
* Hot dipped galvanized after welding wire mesh panel
* Stainless steel wire welded wire mesh panel
Common Specification
Item
Mesh
Wire Diameter
inch
mm
mm
gauge
GWMP-01
1" x 1"
25 x 25
1.4-4.5
17-7
GWMP-02
1½" x 1½
40 x 40
1.6-4.5
16-7
GWMP-03
2" x 1"
50 x 25
2.0-4.5
14-7
GWMP-04
2" x 2"
50 x 50
2.0-5.0
14-6
GWMP-05
3" x 1/2"
75 x 13
1.4-3.0
17-10
GWMP-06
3" x 1"
75 x 25
1.4-4.5
16-7
GWMP-07
3" x 2"
75 x 50
2.0-6.0
14-4
GWMP-08
3" x 3"
75 x 75
2.0-6.0
14-4
GWMP-09
4" x 2"
100 x 50
2.0-6.0
14-4
GWMP-10
4" x 4"
100 x 100
2.0-6.0
14-4
GWMP-11
5" x 5"
125 x 125
2.0-6.0
14-4
GWMP-12
6" x 3"
150 x 75
2.0-6.0
14-4
GWMP-13
6" x 6"
150 x 150
2.0-6.0
14-4
GWMP-14
8“ x 8”
200 x 200
2.0-6.0
14-4
Panel Size
2.44x1.22m, 1.8x0.9m, 2.0x1.0m, 2.1x1.2m, 3x1.5m, 4.0x2.0m, 5.8x2.2m, 6.0x2.4m, etc

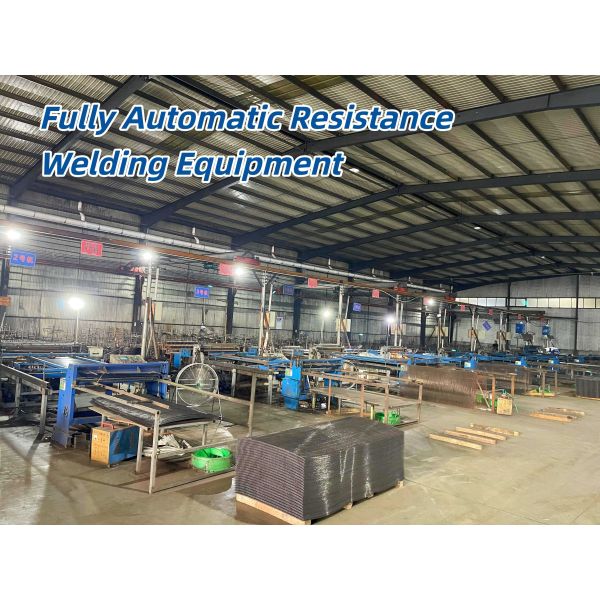

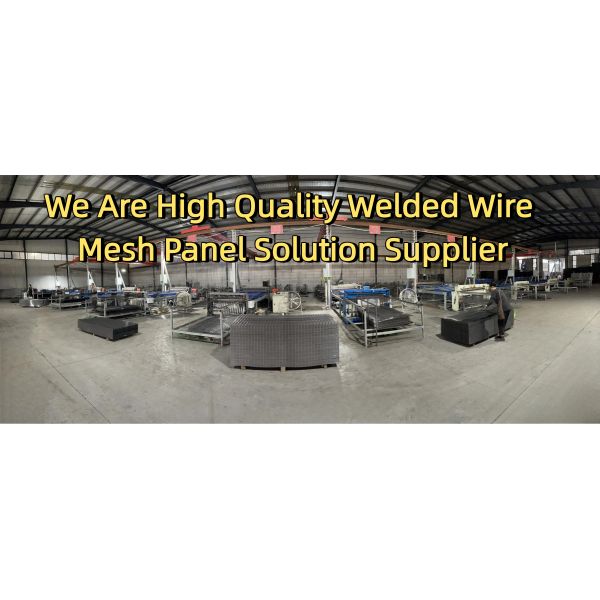

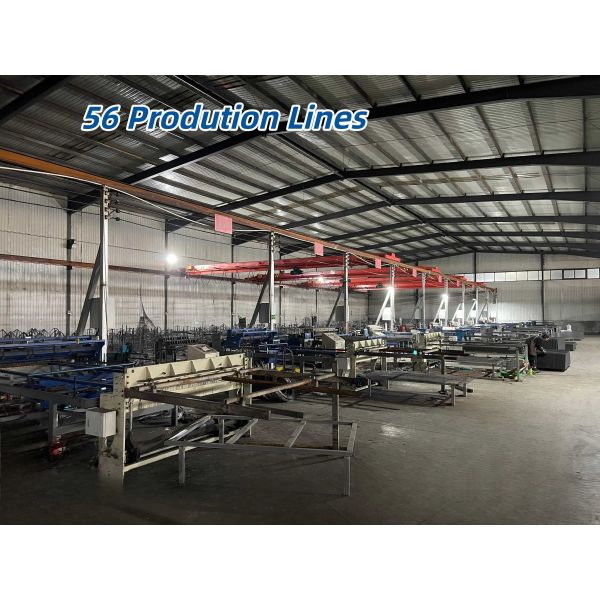

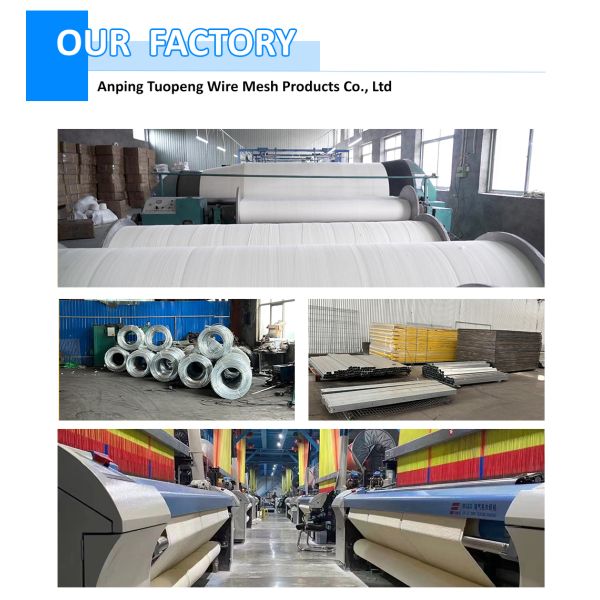

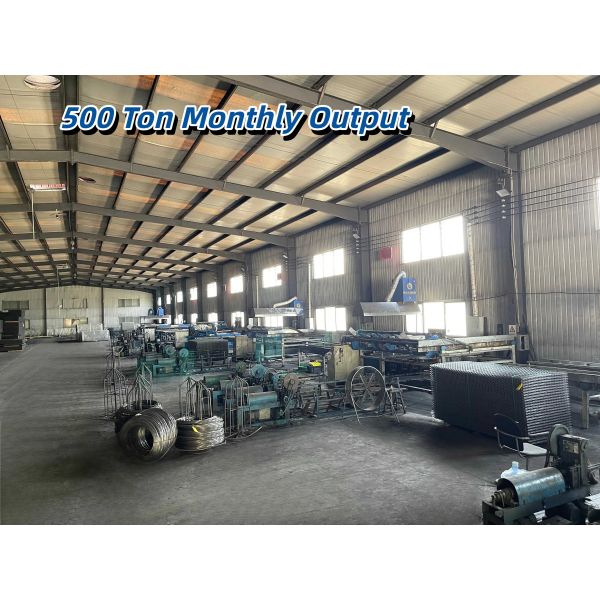

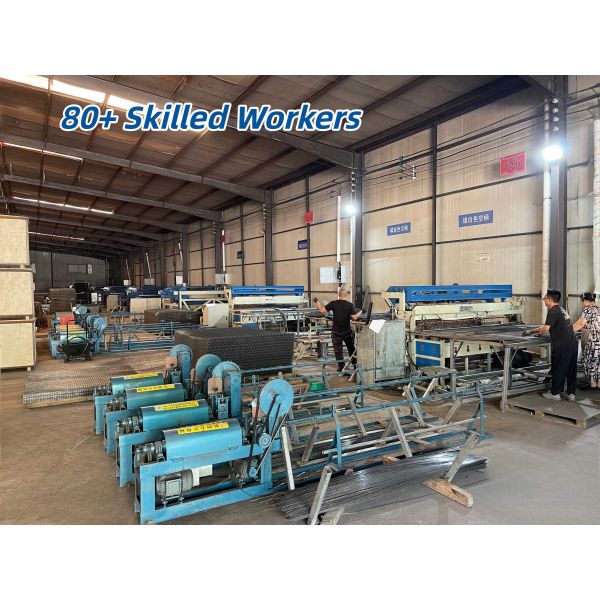

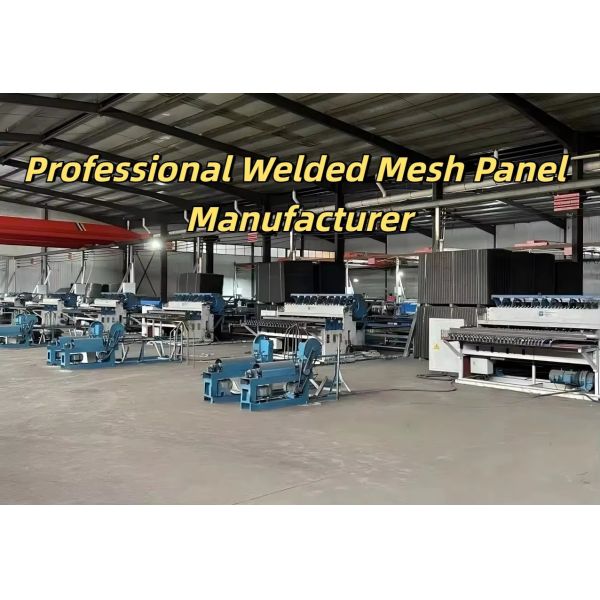

Our Production Workshop
1/2
1/21/21/21/2
1/21/2
1/2

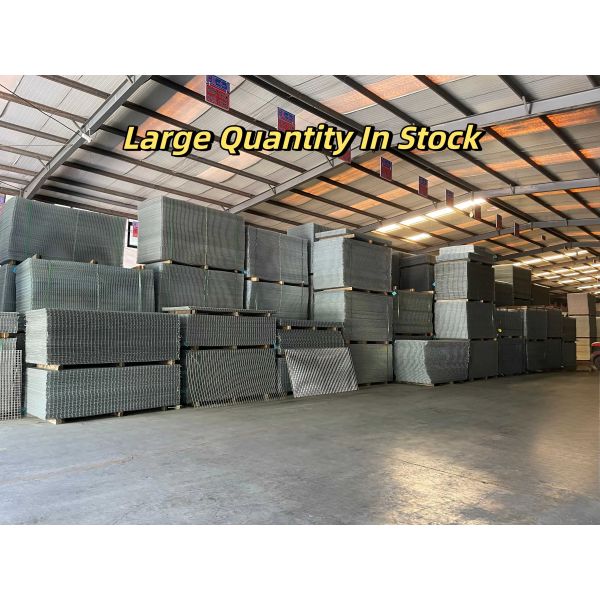

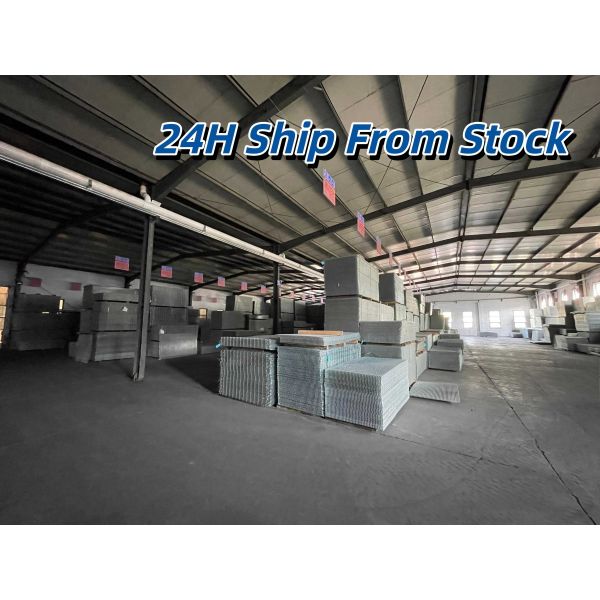

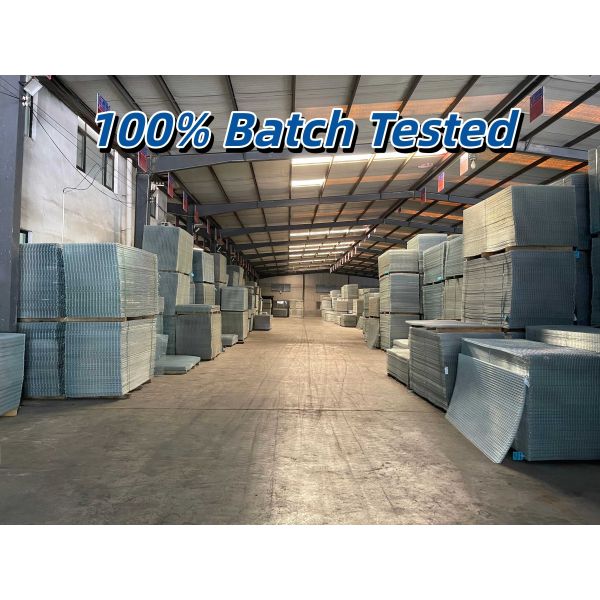

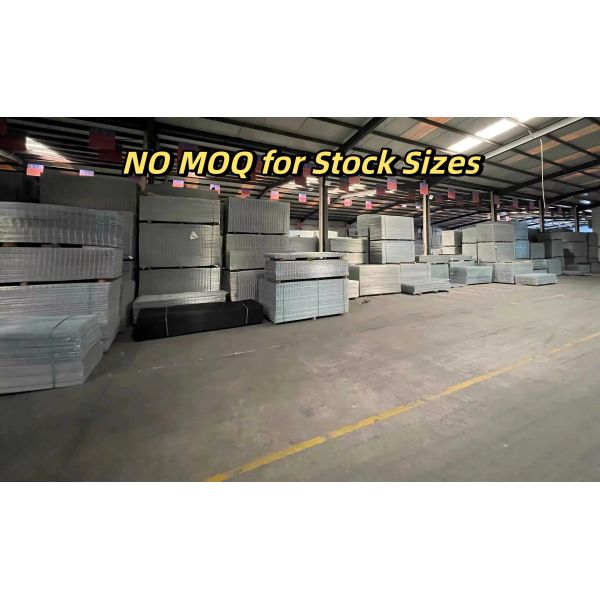

Our Warehouse
1/2
1/21/21/2
1/2
Customized Welded Wire Mesh Panel
1. Materials – Low-carbon steel, stainless steel, galfan (zinc-aluminum alloy coated).
2. Wire diameter – 2.0mm to 8.0mm.
3. Standard apertures – 25mm x 25mm to 200mm x 200mm.
4. Standard panel size – Up to 2.4 metres wide and 6.0 metres long.
5. Wire spacing – The center of two wires (Center to Center) or the opening between two wires (Clear Opening).
6. Edge conditions – Trimmed (flush) or Untrimmed edge.
7. Finish – Pre galvanized, Hot dipped galvanized, Electro galvanized, Bright (black), PVC coated or Powder coated.

Get free samples, please Send inquiry!

Urgent sampling: 48-hour expedited service available.
Product Display
Firm Welding, Fusion Depth up to 1/3 Wire Diameter
Sheared Wire Ends Remain Flush and Burr-free
Uniform Mesh, Flat Surface
Quality
Premium Surface Finish
Control
Batch-tested Wire Diameter
Tensile Strength Testing
Product Wire Diameter Inspection
Packaging
Product Aperture Inspection
& Shipping
Package 1:
Plastic film+Metal pallet
Also follow your request.
Package 2:
Moisture resistance paper+Box
Package 3:
Stretch plastic film+Wooden pallet

Shipping: Customized LCL/FCL shipping solutions by professional freight forwarders.
