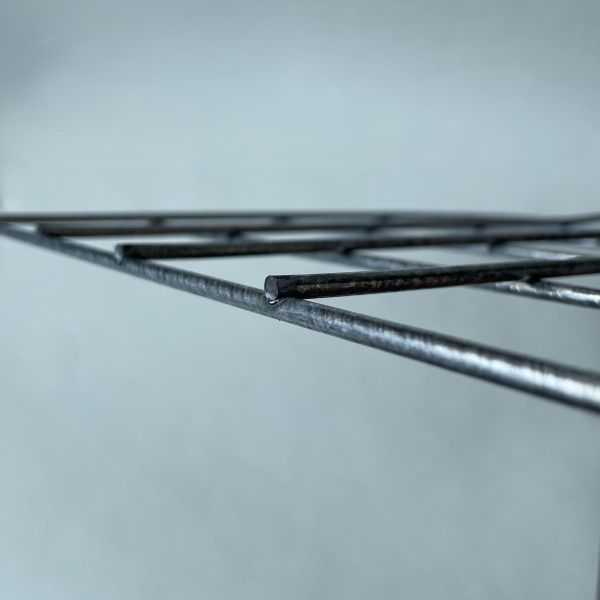

Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Specifications
Brand Name :
HSJ
Model Number :
HSJ4512
Certification :
CE
Place of Origin :
China
MOQ :
20sets
Price :
$5.2/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
$10000sets/month
Delivery Time :
5-8workdays
Packaging Details :
wooden case
product name :
welded mesh panel
keyword :
Wire Mesh panel
Material :
Stainless Steel Wire/galvanized steel
Hole Shape :
square
Colour :
Green,Silver
Wire Diameter :
3.0/4.0mm
Mesh Opening :
50mm*50mm, 25m*25mm, 100mm*100mm
Use :
Construction Wire Mesh, Protecting Mesh, Cages, Decorative Mesh, Sieving Mesh, Filter
Description

stainless steel welded mesh panel 2*2cm size

Product Description

High-quality welded wire mesh panels manufactured with precision welding technology for superior strength and durability.

Material

Low carbon steel wire Q195/Q235

Processing Method

Electrically welded construction

Applications
  • House beams and roofs
  • Building boards and walls
  • Concrete roads and bridges
  • Airfield pavements and highways
  • Water dams and road bases
  • Various construction projects
Available Types
  • Black wire welded mesh panel
  • Electro galvanized wire before welding
  • Electro galvanized after welding
  • Hot dipped galvanized before welding
  • Hot dipped galvanized after welding
  • Stainless steel wire welded panel
Standard Specifications
Item Mesh (inch) Mesh (mm) Wire Diameter (mm) Wire Gauge
GWMP-01 1" x 1" 25 x 25 1.4-4.5 17-7
GWMP-02 1½" x 1½" 40 x 40 1.6-4.5 16-7
GWMP-03 2" x 1" 50 x 25 2.0-4.5 14-7
GWMP-04 2" x 2" 50 x 50 2.0-5.0 14-6
GWMP-05 3" x 1/2" 75 x 13 1.4-3.0 17-10
GWMP-06 3" x 1" 75 x 25 1.4-4.5 16-7
GWMP-07 3" x 2" 75 x 50 2.0-6.0 14-4
GWMP-08 3" x 3" 75 x 75 2.0-6.0 14-4
GWMP-09 4" x 2" 100 x 50 2.0-6.0 14-4
GWMP-10 4" x 4" 100 x 100 2.0-6.0 14-4
GWMP-11 5" x 5" 125 x 125 2.0-6.0 14-4
GWMP-12 6" x 3" 150 x 75 2.0-6.0 14-4
GWMP-13 6" x 6" 150 x 150 2.0-6.0 14-4
GWMP-14 8" x 8" 200 x 200 2.0-6.0 14-4
Standard Panel Sizes

2.44x1.22m, 1.8x0.9m, 2.0x1.0m, 2.1x1.2m, 3x1.5m, 4.0x2.0m, 5.8x2.2m, 6.0x2.4m, and other custom sizes available

Customization Options
  • Materials: Low-carbon steel, stainless steel, galfan (zinc-aluminum alloy coated)
  • Wire diameter: 2.0mm to 8.0mm
  • Standard apertures: 25mm x 25mm to 200mm x 200mm
  • Panel sizes: Up to 2.4m wide and 6.0m long
  • Edge conditions: Trimmed (flush) or untrimmed
  • Finishes: Pre-galvanized, hot-dipped galvanized, electro-galvanized, PVC coated, or powder coated
Quality Features
  • Firm welding with fusion depth up to 1/3 wire diameter
  • Sheared wire ends remain flush and burr-free
  • Uniform mesh patterns with flat surface
  • Premium surface finishes
  • Batch-tested wire diameter and tensile strength
  • Rigorous product inspection process
Packaging Options
  • Plastic film + Metal pallet
  • Moisture resistance paper + Box
  • Stretch plastic film + Wooden pallet
  • Custom packaging available upon request
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Warehouse Storage
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Product Samples

Free samples available upon request. Urgent sampling with 48-hour expedited service.

Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
Square Hole Electro Galvanized Stainless Steel Welded Mesh Panel 2*2cm Size
