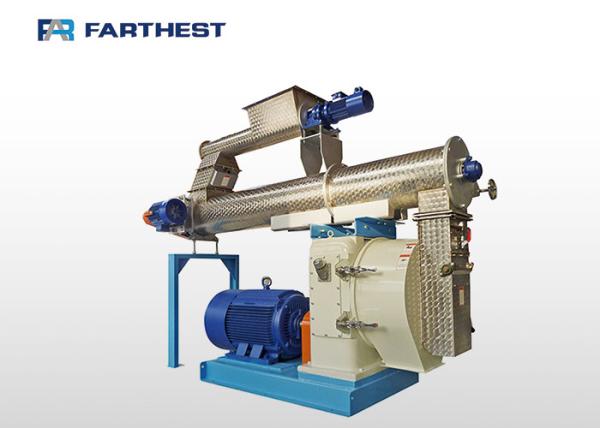

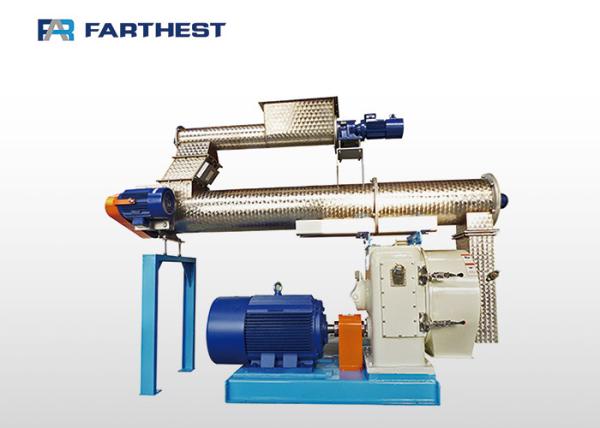

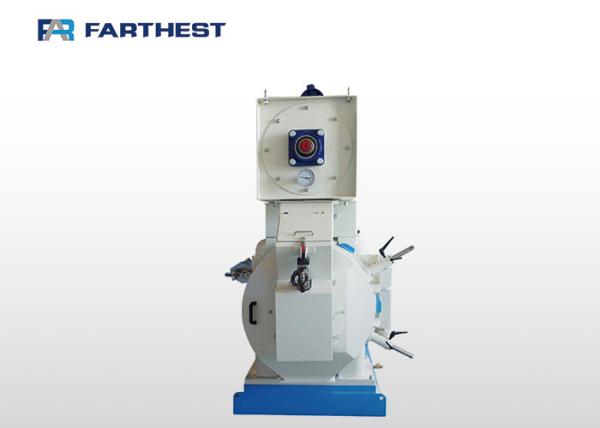

3t/h Pellet Mill Press Machine For Livestock Feed
3t/h Pellet Mill Press Machine For Livestock Feed
3t/h Pellet Mill Press Machine For Livestock Feed
3t/h Pellet Mill Press Machine For Livestock Feed
3t/h Pellet Mill Press Machine For Livestock Feed
3t/h Pellet Mill Press Machine For Livestock Feed
Specifications
Brand Name :
FAR
Model Number :
SZLH400(420)
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
30 days
Packaging Details :
iron pallet
Capacity :
3-14tph
Power :
75/90/110kw
ID of Die :
400/420mm
Pellet Size :
2-18mm
Motor :
Siemens
Bearing :
SKF
Condition :
New
Color :
Blue and White
Description

SZLH Pellet Mill Press Machine Animal Livestock Feed Processing Machinery

Product Description

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving,

low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system

is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the

die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and

long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more

convenient disassembling

and assembling and more reliable use.

Main Technical Parameters

Parameters

Model

Output

(t/h)

Main Power

(kw)

Power Of Conditioner
(kw)

Power Of Feeder
(kw)

ID Of Die
(mm)

Pellet Size
(mm)

SZLH400

3-12

75/90

5.5

1.5

400

2-18

SZLH420

3-14

90/110

5.5

1.5

420

2-18
