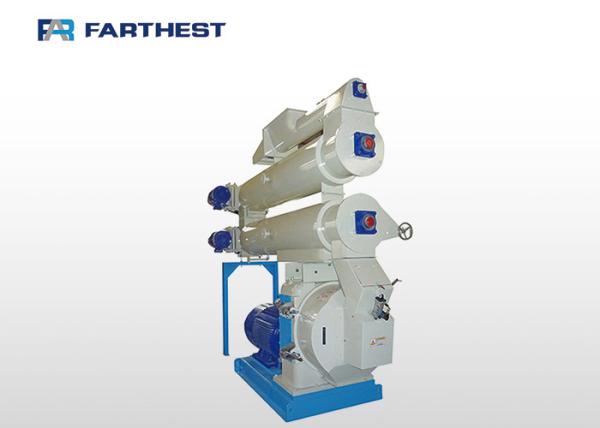

160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed
Specifications
Brand Name :
FAR
Model Number :
SZLH508b2
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
30 days
Packaging Details :
iron pallet
Power :
160kw
Output :
6-20tph
Pellet Size :
2-18mm
Motor :
Siemens
Bearing :
SKF
ID of Die :
508mm
Warranty :
1 year
Color :
Blue and White
Description

160kw Pellet Manufacturing Equipment For Twin Steaming Conditioning Salmon Fish Feed

Product Description

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.

Main Technical Parameter

Model

Output

(t/h)

Main Power

(kw)

Power Of Conditioner

(kw)

Power Of Feeder (kw)

ID Of Die (mm)

Pellet Size (mm)

SZLH508b2

6-20

110/132/160

7.5×2

1.5/2.2

508

2-18
